2 FRONT RIGGINGS
590 REV02 REV DATE: SEPTEMBER 13, 2013 12 AQUA NT
2 Front Riggings
Installing and Adjusting the Front Rigging

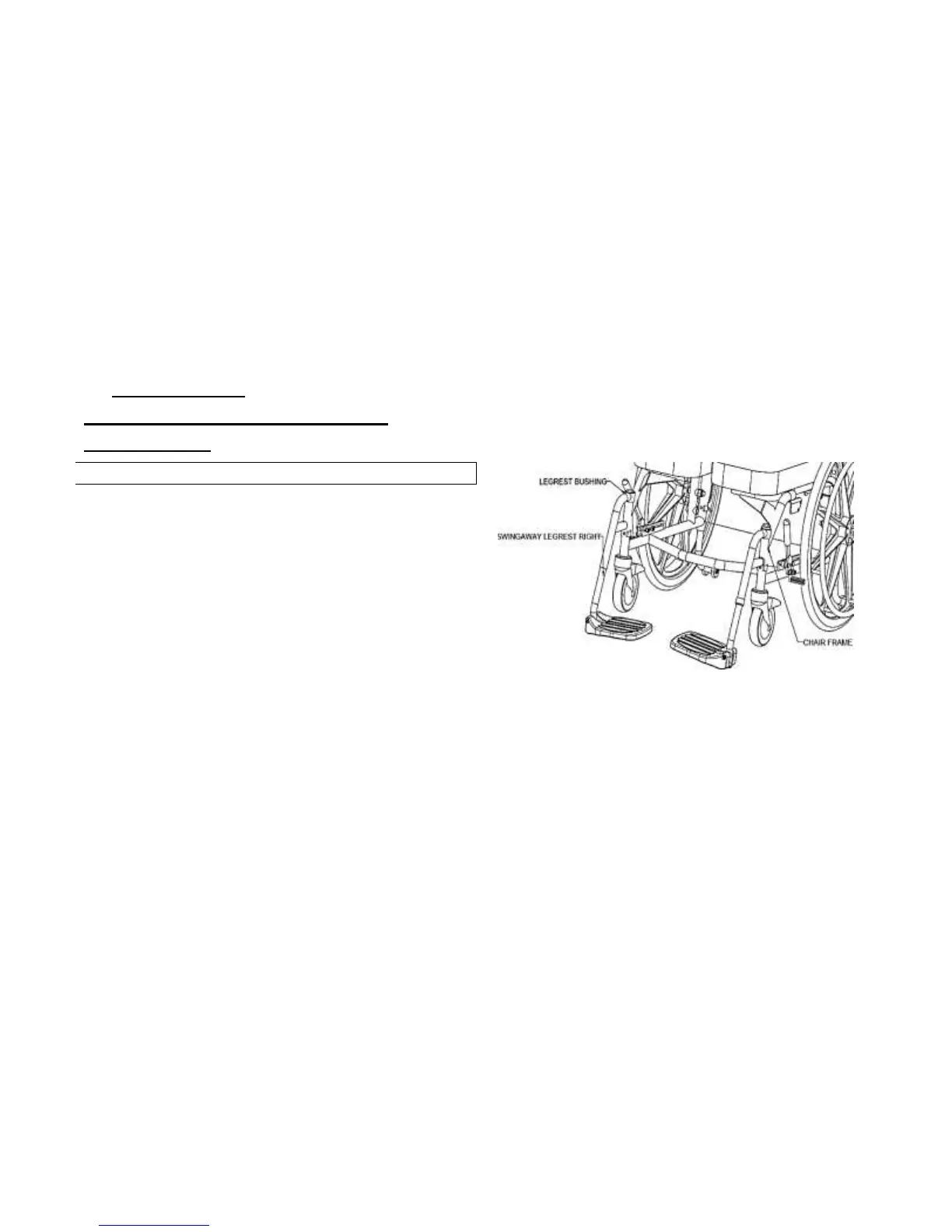

Figure 1, Figure 2
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Installing/Removing The Front Riggings
Installing:
1. Place the front rigging assembly parallel to the
commode pointing outwards.
2. Insert the bushing on the commode hanger into
the top opening of the frame front.
3. The back cutout on the bushing should come to
rest on the pin – which is welded to the frame
front.
4. Ensure the Front Rigging is not loose and is
‘snug’ in place
5. Repeat this procedure with the other front
rigging assembly.
