8 REAR WHEELS – SELF PROPELLED
590 REV02 REV DATE: SEPTEMBER 13, 2013 24 AQUA NT
8 Rear wheels (self-propelled only)

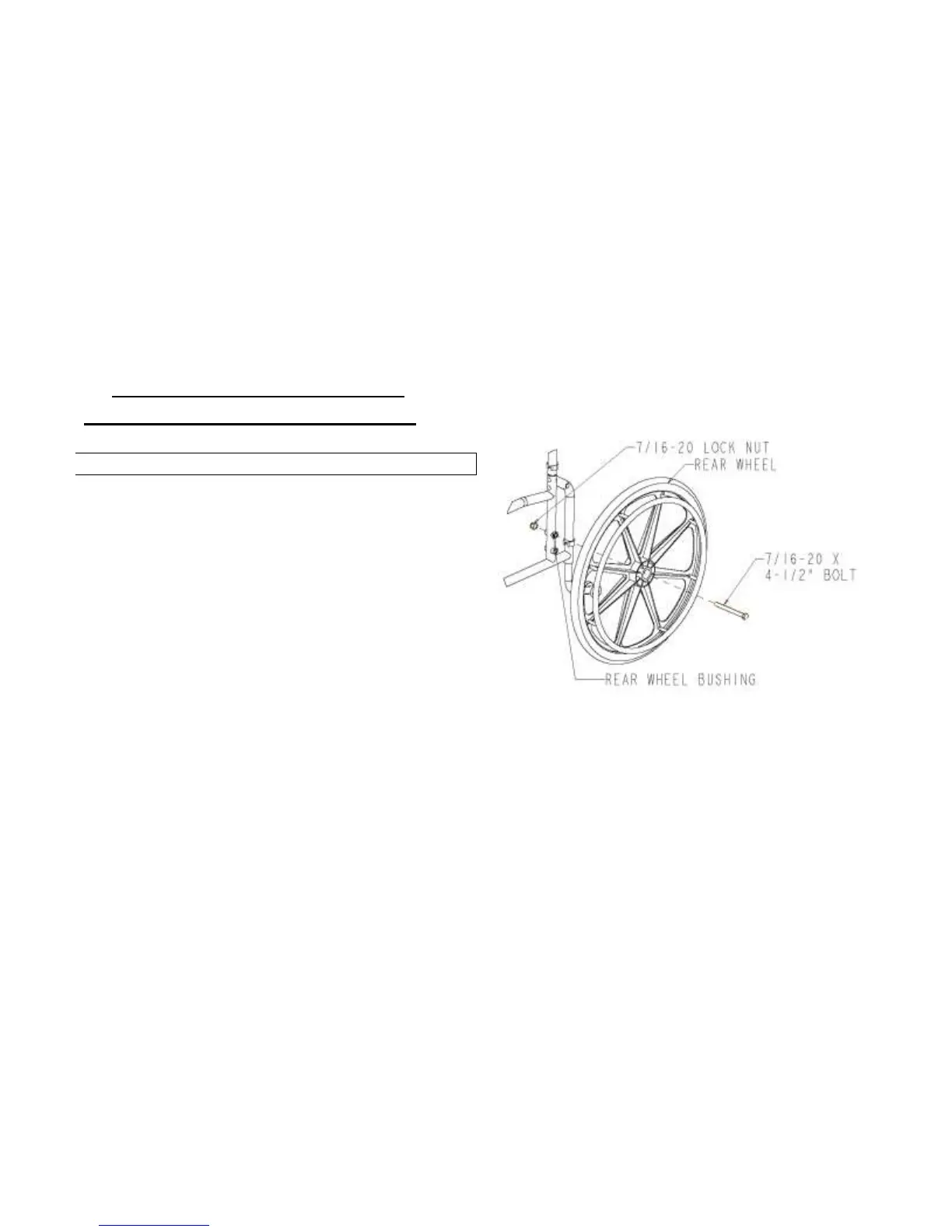

Removing/Installing the rear wheels Figure 11
WARNING
If changing the size of the rear wheel or a change in the
seat-to-floor height is desired, this procedure MUST be
performed by a qualified technician.
Removing Rear Wheel
1. Use a wrench to remove the 7/16-20 lock nut
holding the rear wheel in place.
2. Gently pull the 7/16-20 x 4-1/2” bolt out from
the bearings located in the rear wheel.
3. To reinstall the rear wheel onto the commode,
reverse steps 1 to 2.
4. Repeat this procedure for the other rear wheel
assembly if required.
5. Ensure there is no instability in the rear wheel
when it is spun.
6. Ensure that the wheel lock shoe engages
properly onto the wheel.
To Next Page
