5 SEAT
590 REV02 REV DATE: SEPTEMBER 13, 2013 18 AQUA NT
5 Seat

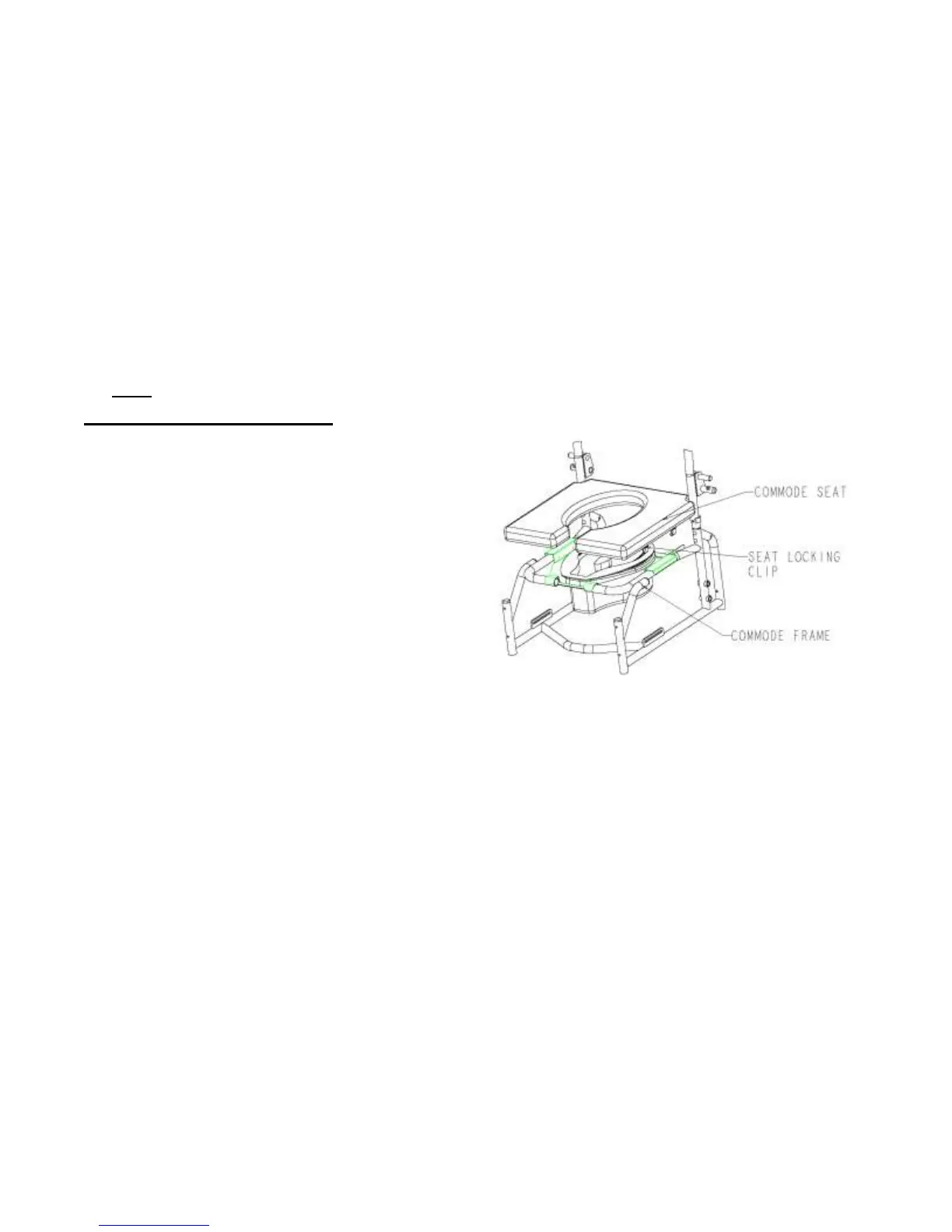

Replacing Seat Assembly Figure 7
Replacing Seat Assembly
1. Gently grasp the seat assembly from the sides
and pull upwards to release the seat locking
clips from the commode frame tubing such that
the seat assembly becomes independent from
the commode.
2. Gently grasp the new seat assembly from the
sides and line up the approximate location of
the seat locking clips with their respective
frame tubing that they will ‘lock’ onto.
3. Push the seat assembly down onto the frame
and ensure that the commode seat opening is
oriented in the manner shown below. The seat
locking clip should ‘lock’ onto the frame tubing.
The commode seat assembly should be ‘snug’
in place and should not be loose.
4. Ensure the seat locking clips do not interfere
with the bends on the potty receiver.
