3 ARMS
590 REV02 REV DATE: SEPTEMBER 13, 2013 14 AQUA NT
3 Arms
Adjusting and Installing Arms Figure 3 Figure 4
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Removing Arm Assembly
1. Lift the arm latch up with index finger such that
the arm assembly is able to rotate

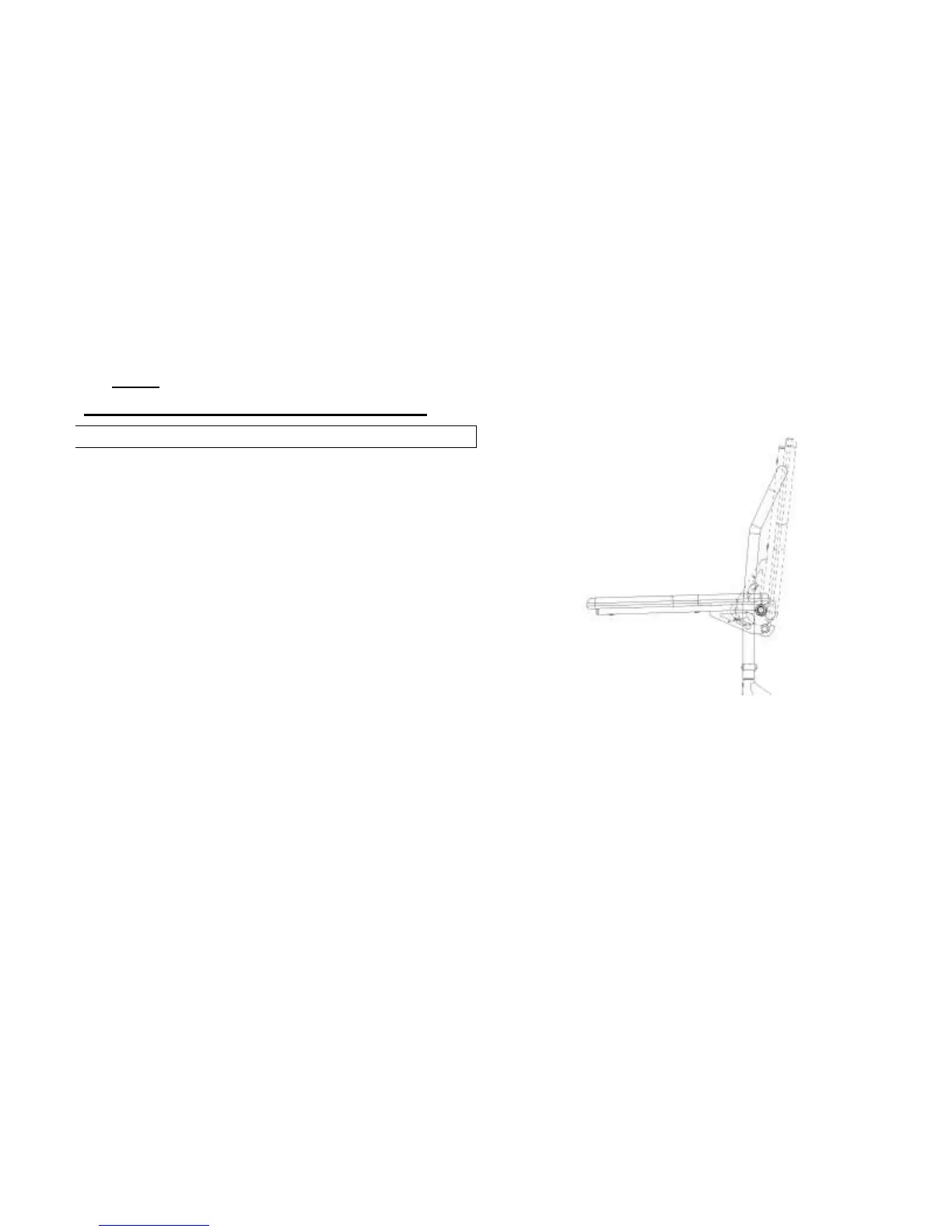

2. Rotate the arm assembly upwards to the
position show in the figure.
3. At this point the arm assembly should come to
a stop. Gently slide the arm assembly towards
your body and you should be able to see the
arm assembly out come from the arm pivot rod.
4. Do not force the arm assembly out as there a
nylon spacer which acts as a guide for the arm
while it is rotating and keeps the arm in place.
Note: If the nylon spacer becomes damaged
then it needs to be replaced because it could
cause problems for the end user.
