Installing Arm Assembly

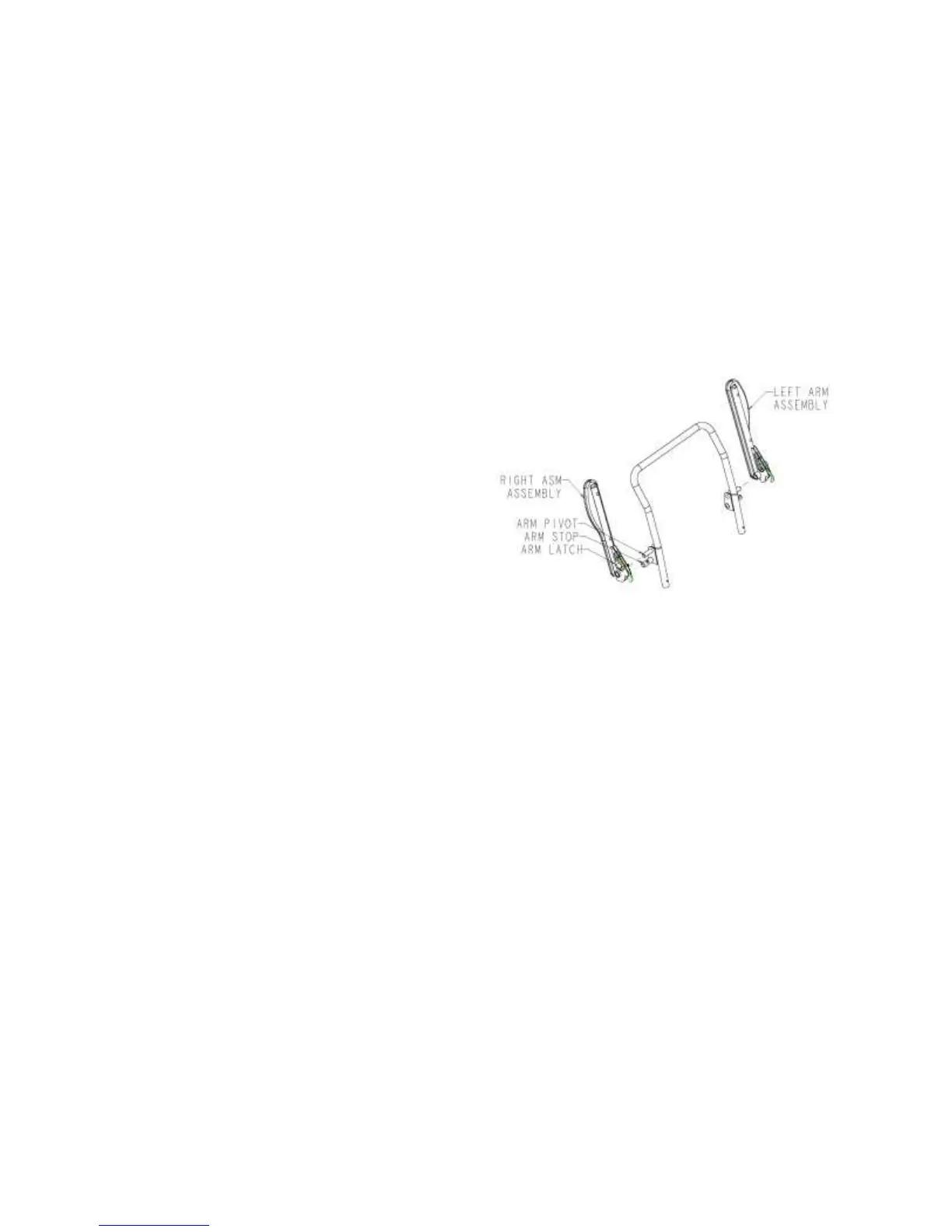

1. Orient the arm assembly in a manner such that
the arm latch and arm pads are oriented away
from the back frame as shown below
2. Gently slide the arm assembly onto the arm
pivot rod until it comes to a stop.
3. One should notice that the space between the
two metal plates on the arm body should line
up with the nylon spacer.
4. Do not force the arm assembly inwards as
there a nylon spacer which acts as a guide for
the arm while it is rotating and keeps the arm in
place.
Note: If the nylon spacer becomes damaged
then it needs to be replaced because it could
cause problems for the end user.
5. Gently rotate the arm assembly downwards
until the arm assembly comes to rest. One
should hear a ‘click’ noise and notice that the
back of the arm latch is engaged with the arm
stop.
