Future Aqua - Backrest Assembly; Replacing Upholstery and Adjusting Back Height

4 BACK
590 REV02 REV DATE: SEPTEMBER 13, 2013 16 AQUA NT
4 Back
Replacing Upholstery and Adjusting Back Height Figure 5 Figure 6
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely – otherwise injury or damage may occur.
Replacing The Back Upholstery
1. Gently grasp the back upholstery from the
sides and slide the upholstery up the back
assembly until the upholstery becomes loose
and is independent from the commode.
2. Gently grasp the new back upholstery from the
sides and slide the upholstery down the back
assembly until the top of the upholstery lines
up with the top of the back assembly. One
should also notice that the bends at the top of
the back assembly should be visible through
the cutouts on either side of the back
upholstery.

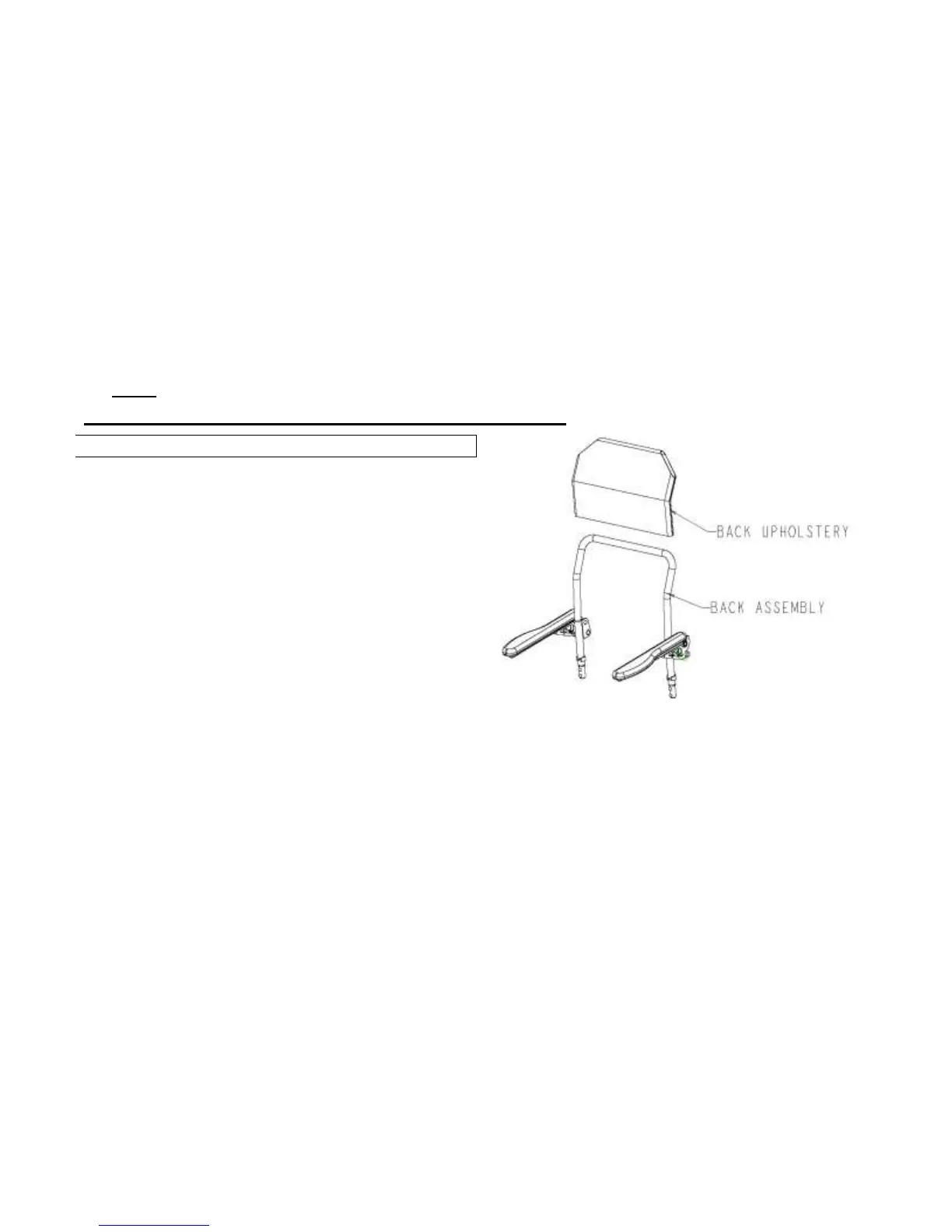

Figure 5
