Wiring the Optoisolated Outputs
The output power supply will be connected to Output PWR (labeled OPWR) and the power supply return will be
connected to Output GND (labeled ORET). Note that the load is wired between DO and Output GND. The wiring
diagram for Bank 0 is shown in Figure 3.11 and Bank 1 in Figure 3.12. See the “I/O 44 pin HD D-sub Connector” for
your specific ICM module in Chapter 5 Integrated Components for the correct pin-outs.
Chapter 3 Installation ▫ 14 DMC-40x0 UL Installation Manual

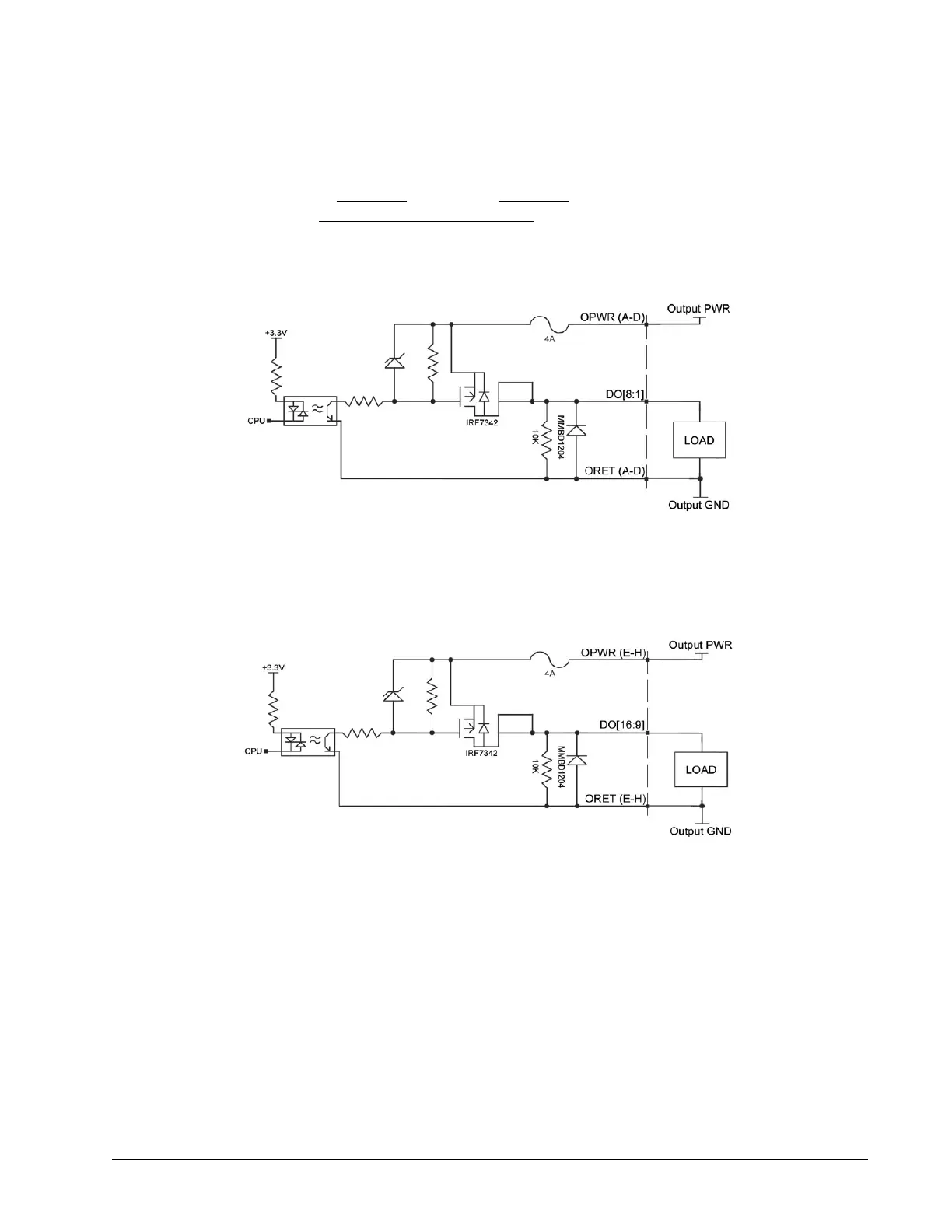

Figure 3.11: 500mA Sourcing wiring diagrams for Bank 0, DO[8:1]
Figure 3.12: 500mA Sourcing wiring diagram for Bank 1, DO[16:9]
