Electrical Specifications
Servo (Brushless/Brushed)
Supply Voltage 20-60 VDC
Continuous Current 8 Amps
Peak Current 15 Amps
Switching Frequency 33 kHz
Amplifier Gains 0.4, 0.8, 1.6 Amps/Volt
Minimum Load Inductance
L(mH )=
Vs (V )
264∗I
Ripple
(A)
Vs = Supply Voltage, I
ripple
= 10% of the maximum current at chosen gain
Table 4.7: Amplifier Electrical Specifications
Mating Connectors
Cable Connectors Terminal Pins On board Connector
POWER
6-pin Mini-Fit, Jr.™ (Male)
Molex #0039012065
Molex #0444761112
6-pin Mini-Fit, Jr.™ (Female)
Molex #0039310060
A,B,C,D: 4-pin
Motor Power
Connectors
4-pin Mini-Fit, Jr.™ (Male)
Molex #0039012045
Molex #0444761112
4-pin Mini-Fit, Jr.™ (Female)
Molex #0039310040
Table 4.8: Molex part numbers for connectors and terminal pin
Power Connector
Pin Number Connection
1,2,3 DC Power Supply Ground
4,5,6 +VS (DC Power)
Motor Connector
Pin Number Brushless Brushed
1 Phase C Phase A-
2 Phase B No Connect
3 No Connect No Connect
4 Phase A Phase A+
Table 4.9: Power and Motor Connector Pin-outs
Chapter 5 Integrated Components▫ 25 DMC-40x0 UL Installation Manual

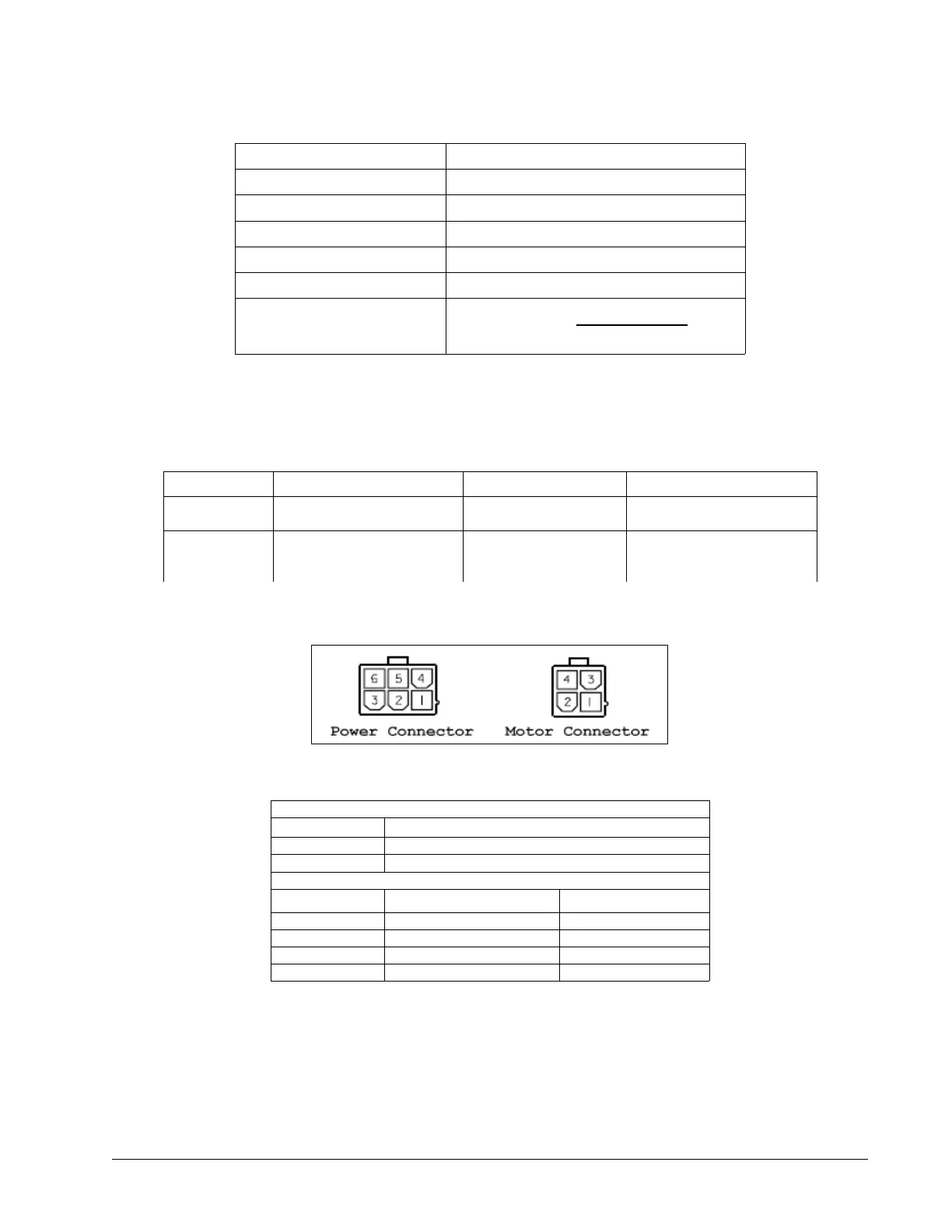

Figure 4.3: Power and Motor Connector Diagram
