GAMATRONIC ELECTRONIC INDUSTRIES LTD.
GMAC 5 User Guide 13
5.1 Network configuration
Use the “Network” configuration function to specify the details of your connection to the local Ethernet
network.
Under "Static IP address" specify the connection details to be used by GMAC-5 when no DHCP address is
available, or when you specify that the static address is to be used at all times.
Under "Actual IP address" select the desired mode of operation, which can be one of the following:
• Static IP
• DHCP, fallback to static IP
• Device IP, fallback to DHCP
• Device IP, fallback to static IP.
In the operation modes listed above:
• Static IP is the IP address defined under "Static IP address",
• DHCP is the IP address received from DHCP server automatically, and
• Device IP is the IP address received from the controller of connected power system (if supported
by protocol), such as the Power+ UPS or the 1UDC+ Power System.

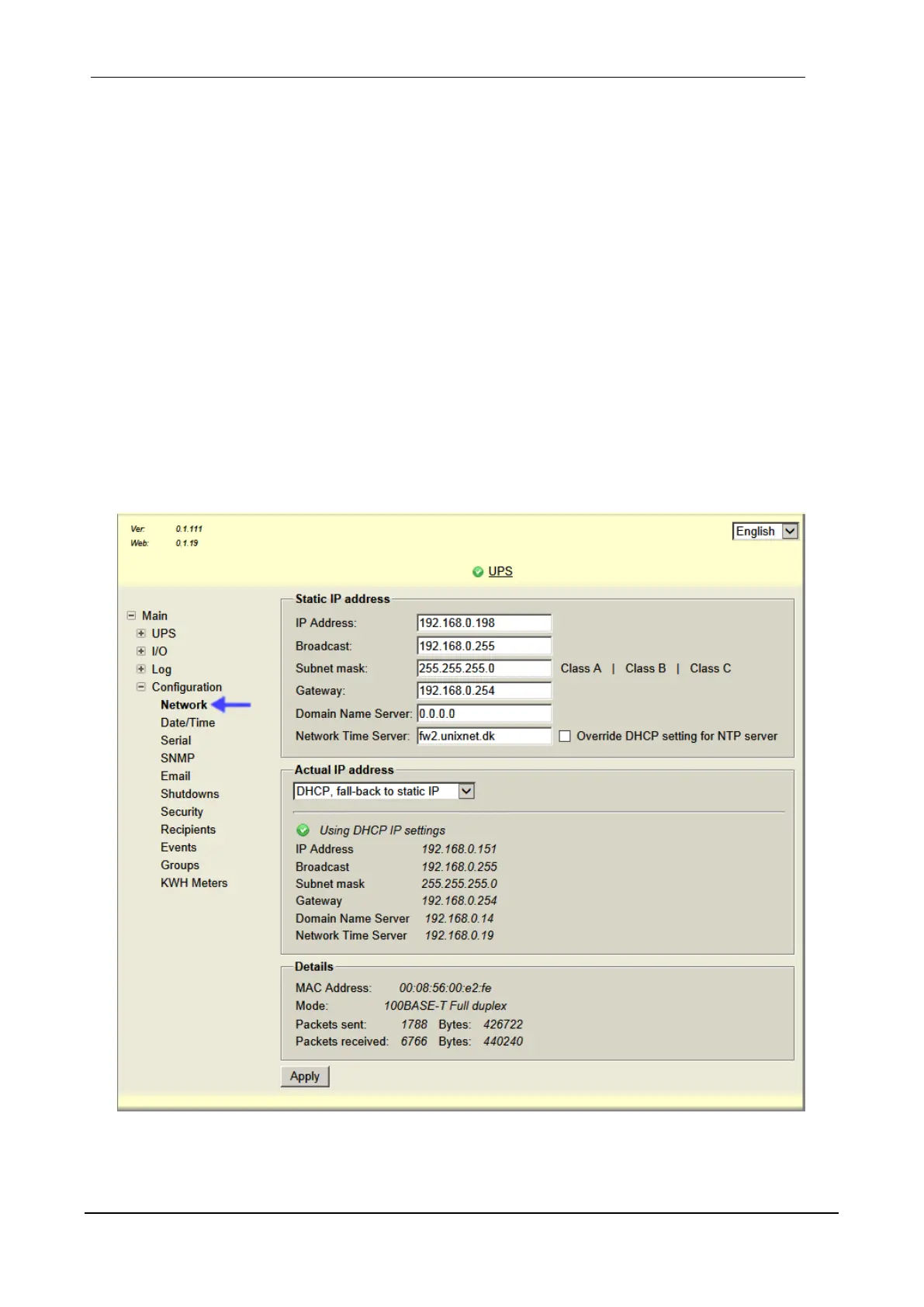

Figure 12: Network configuration screen
