GAMATRONIC ELECTRONIC INDUSTRIES LTD.
GMAC 5 User Guide 5
3. USER INTERFACE
The User Interface (UI) is built for quick and intuitive access. The usual page structure is:

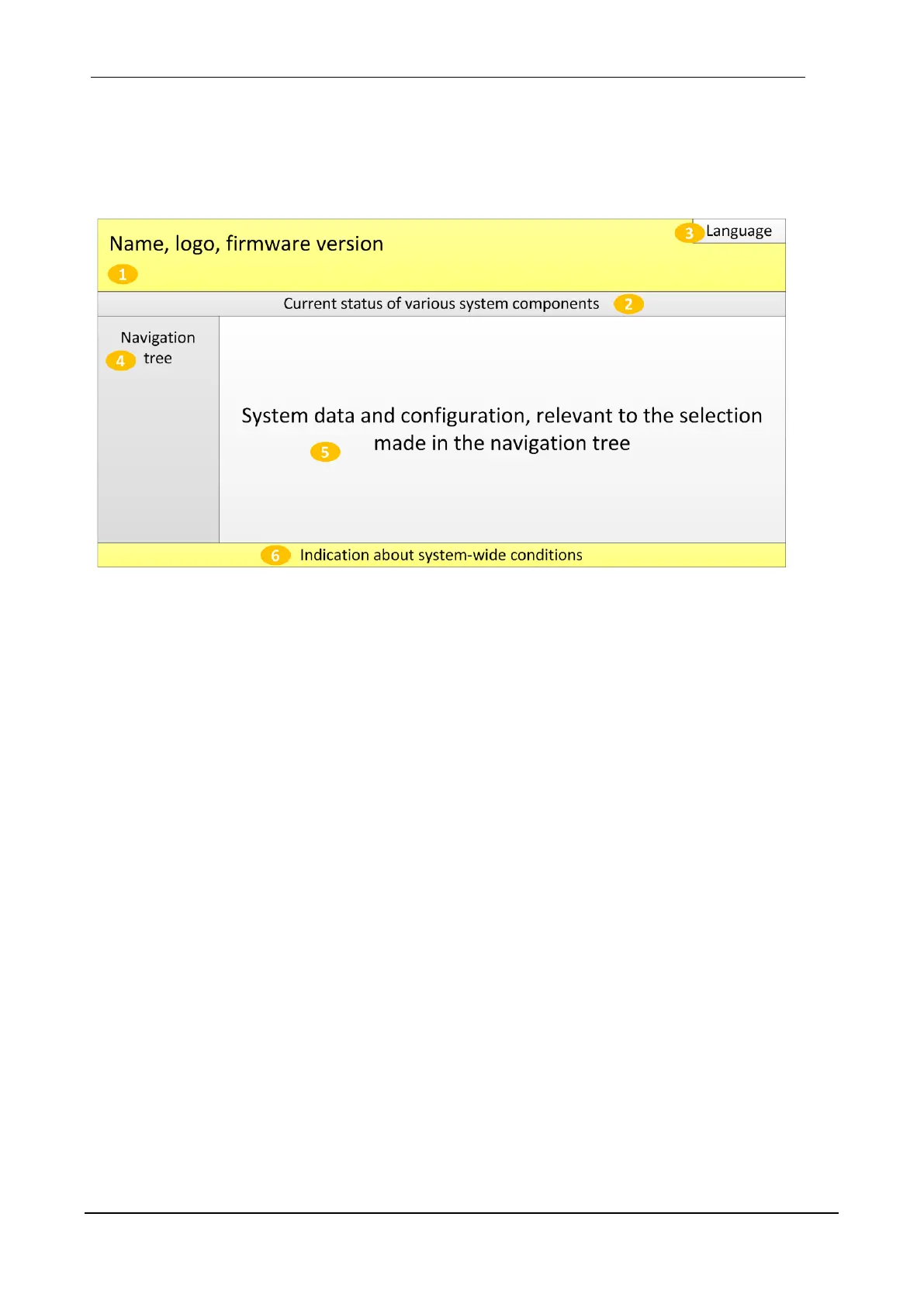

Figure 3: Layout of the user interface screen
1. Company logo, name, and the current firmware version, required for support purposes.
2. UPS, volt-free contacts, environment, and other system indicators showing current status.
3. Language selector, functional on all pages. Language setting is saved with a "cookie" in your browser.
4. Navigation tree lets you efficiently switch between various informational and configuration pages.
Items in navigation tree can vary depending on system configuration.
5. All data related to the current informational or configuration page is shown in the middle of the screen.
6. Messages about system-wide conditions may be displayed in the status bar.
3.1 Dynamic updates
The web pages are dynamically updated every 3 seconds. This auto-refresh process stops after 5 minutes
so as not to create unnecessary network traffic, and a message will be shown in status bar (item 6 in Figure
2). When the page has stopped refreshing data, it will still display the last information received on the
screen. Keep in mind that that this information may already be irrelevant.
To restore the dynamically updated connection, just refresh the page in your browser.
