Measurement of Small Signals Measurement System Model and Physical Limitations
60

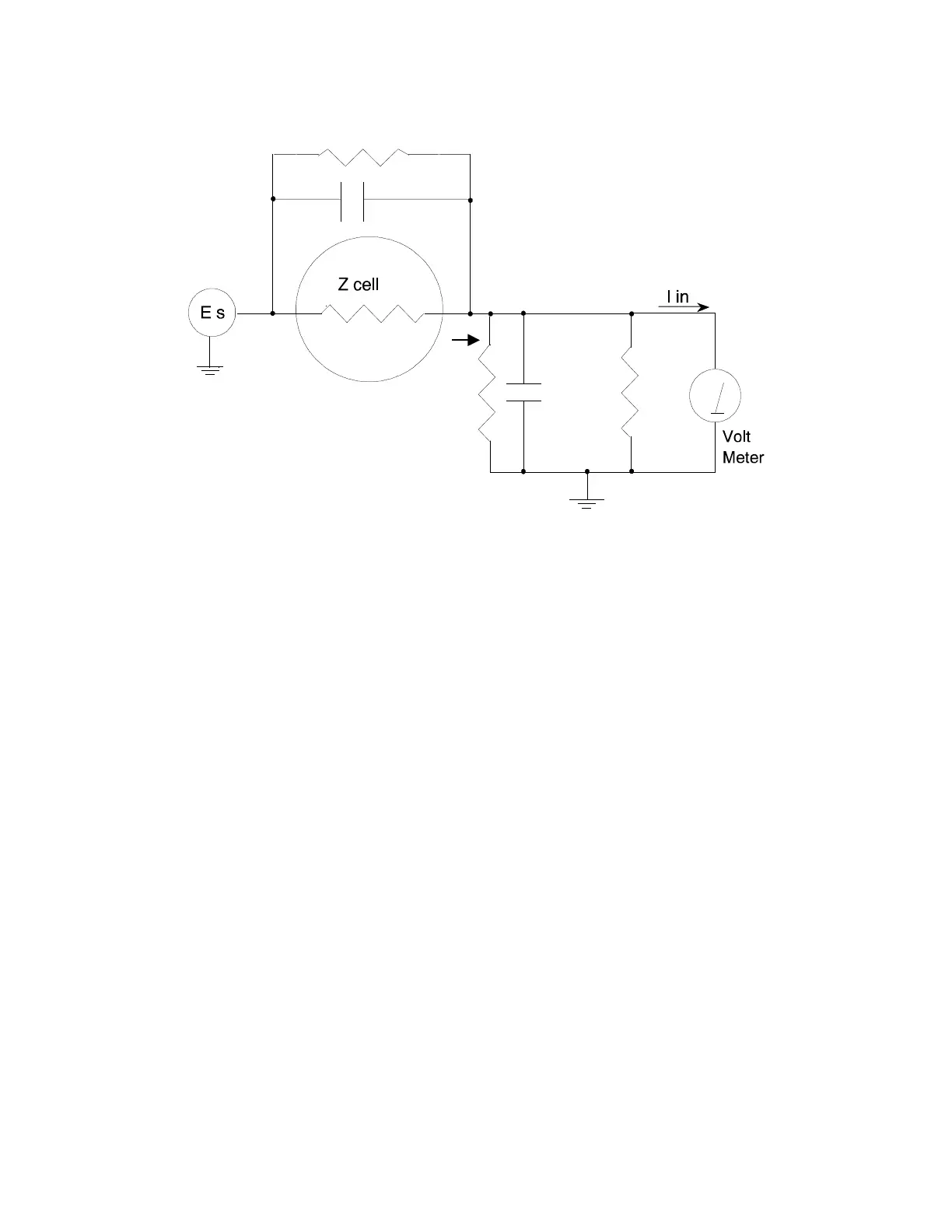

Figure 9-1
Equivalent Measurement Circuit
Icell
C shunt
R shunt
C in
R in
Rm
Unfortunately, technology limits high-impedance measurements because:
Current measurement circuits always have non-zero input capacitance, i.e., C
in
> 0.
Infinite R
in
cannot be achieved with real circuits and materials.
Amplifiers used in the meter have input currents, i.e., I
in
> 0.
The cell and the potentiostat create both a non-zero C
shunt
and a finite R
shunt
.
Additionally, basic physics limits high-impedance measurements via Johnson noise, which is the inherent noise
in a resistance.
Johnson Noise in Z
cell
Johnson noise across a resistor represents a fundamental physical limitation. Resistors, regardless of
composition, demonstrate a minimum noise for both current and voltage, per the following equations:
E = (4kTRF)
1/2
I = (4kTF/R)
1/2
with
k = Boltzmann’s constant (1.38 × 10
23
J/K)
T = temperature in K
F = noise bandwidth in Hz
R = resistance in Ω.
For purposes of approximation, the noise bandwidth, F, is equal to the measurement frequency. Assume a
1011 Ω resistor as Z
cell
. At 300 K and a measurement frequency of 1 Hz, this gives a voltage noise of 41 µV rms.
The peak-to-peak noise is about five times the rms-noise. Under these conditions, you can make a voltage
measurement of 10 mV across Z
cell
with an error of about 0.4%. Fortunately, an AC measurement can reduce
the bandwidth by integrating the measured value at the expense of additional measurement time. With a noise
bandwidth of 1 mHz, the voltage noise falls to about 1.3 µV rms.
