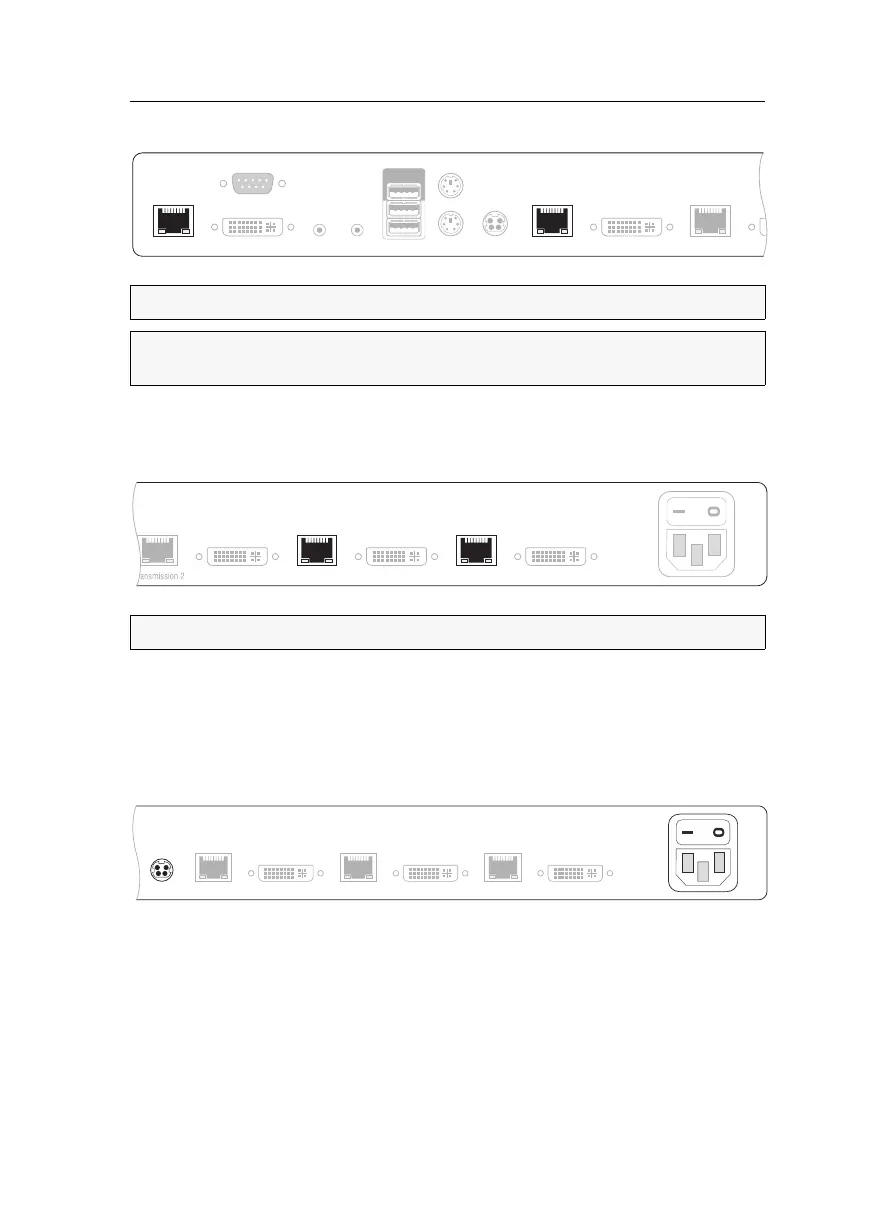

Console module »DVI-CON-MC4«
Computer and console modules · 113
Connection to the matrix switch
Transmission 1: Connect this interface to a Dynamic Port (RJ45) of the matrix switch.
Transmission 2: Connect this interface to another Dynamic Port (RJ45) of the matrix
switch.
Transmission 3: Connect this interface to another Dynamic Port (RJ45) of the matrix
switch.
Transmission 4: Connect this interface to another Dynamic Port (RJ45) of the matrix
switch.
Power supply
Main Power: Connect the supplied power cable.
Insert the cable’s Schuko plug in a power socket.
Red. Power: Connect the connection cable of a compatible power pack to provide the
console module with a second, redundant power supply.
NOTE:
Use category 5e (or better) twisted pair cables to connect the devices.
ADVICE:
You can also connect the console module directly to a compatible computer
module.
NOTE:
Use category 5e (or better) twisted pair cables to connect the devices..
Keyb./Mouse
Generic
Transmission 3
Transmission 1
Micro In Red. Power
DVI / VGA Out 1
LED out
Speaker
Mouse
Keyb.
Transmission 2
DVI / VGA Out 2
