13-9-663 Page 20

Most water systems will require control of impurities: filtration, softening or other treatment. See Section

5, “Compressor Oil Cooler - Water-Cooled Heat Exchanger” for more information on the water system.

* (Optional) Water Control Valve and Water Shutoff Valve Must Be Ordered Separately

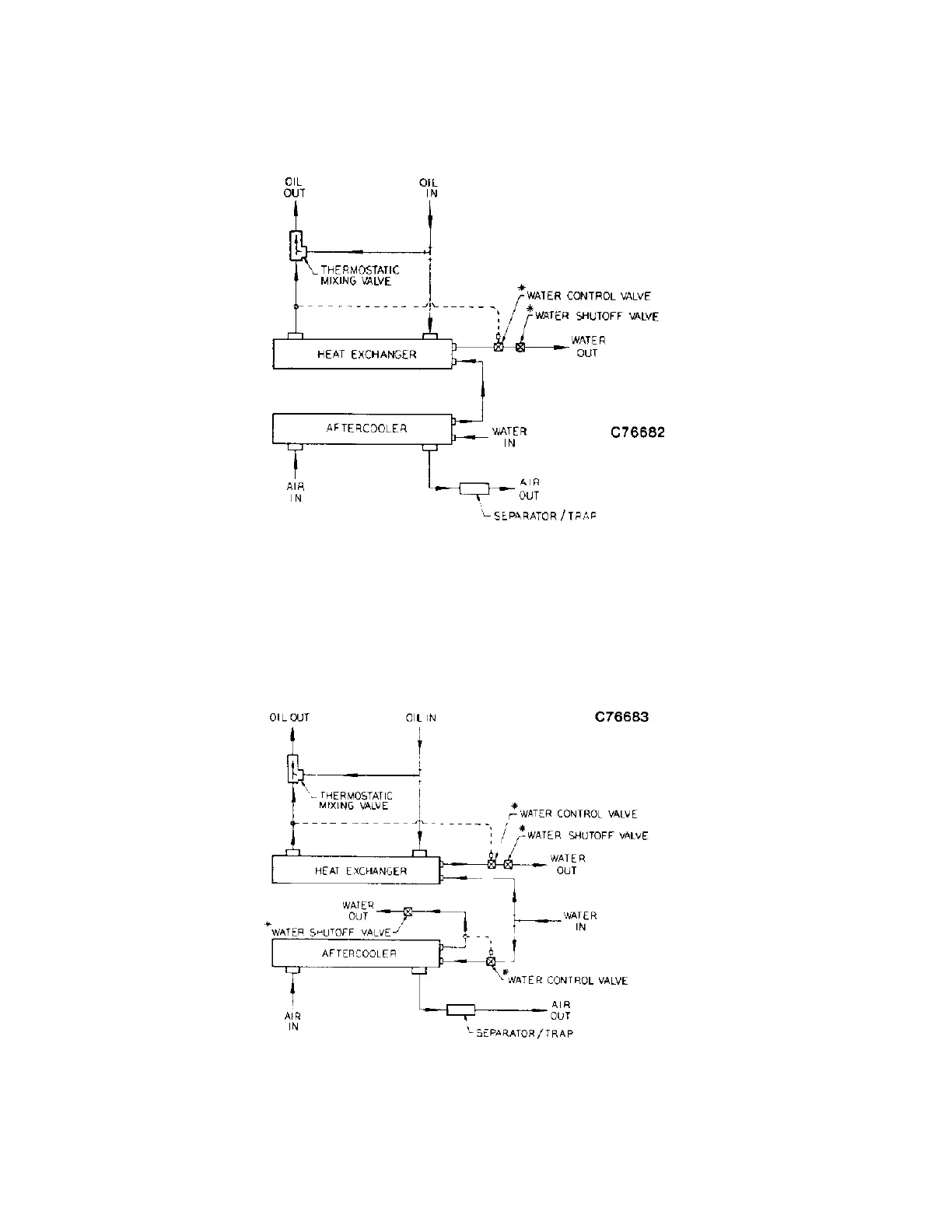

Figure 2-7 – SERIES PIPING

SERIES PIPING (Figure 2-7) - Water flow must be through aftercooler first for effective cooling of

discharge air and is so piped on the standard water-cooled unit.

* (Optional) Water Control Valve and Water Shutoff Valve Must be Ordered Separately

Figure 2-8 – PARALLEL PIPING
