INSTALLATION/OPERATION MANUAL GARLAND CLAMSHELL GRILLS WITH PRODUCT RECOGNITION
PART #4521777 (08/18/09)Page 14

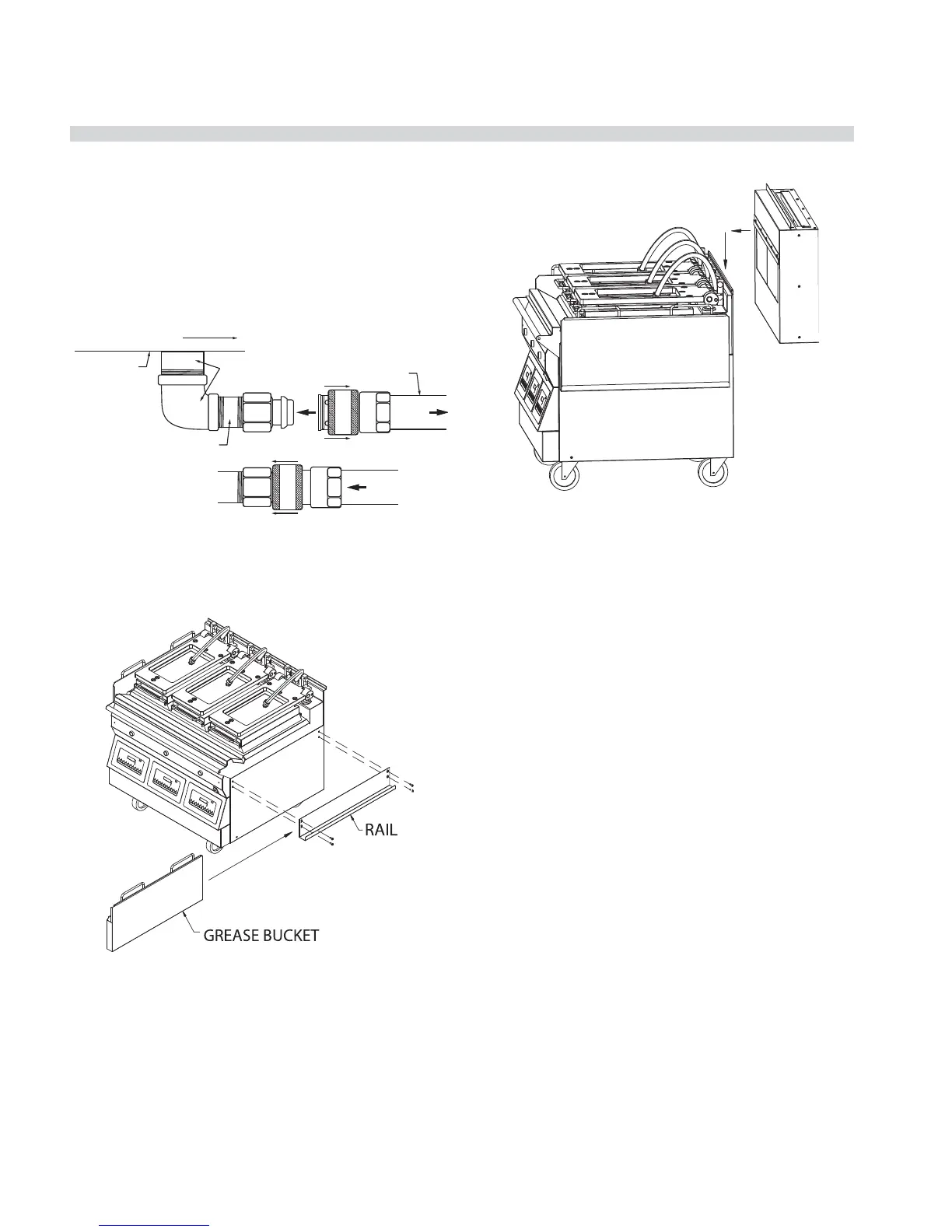

5. GAS GRILL ONLY, (for electric grills, skip to step 6 on
the next page): Install the included quick-disconnect
gas hose to the inlet tting on the underside of the grill
by threading a 3/4” NPT nipple into the elbow, then
install the brass male quick-connect coupler included
with the hose.
Connect the hose and ensure the sleeve snaps fully
forward against the retaining ring.
REAR OF GRILL
TO GAS
SUPPLY
FACTORY INSTALLED
BOTTOM OF GRILL
FLEXIBLE GAS HOSE
3/4” NIPPLE (not supplied)
GAS
FLOW
With the manual shut-o valve closed, install the other
end of the hose to the gas supply.
6. Install grease bucket rails as shown below:
GREASE BUCKETS & RAILS
ARE NOT SUPPLIED
BY THE MANUFACTURER
INSTALLATION & STARTUP (continued)
7. Install ue box to back of grill.
FLUE BOX IS
NOT SUPPLIED BY
THE MANUFACTURER
8. Roll grill under hood. Grill must be level front to back,
side to side and diagonally. Adjust casters accordingly
to obtain nal level.
To Next Page
