PART #4521777 (08/18/09)
GARLAND CLAMSHELL GRILLS WITH PRODUCT RECOGNITION INSTALLATION/OPERATION MANUAL
Page 17

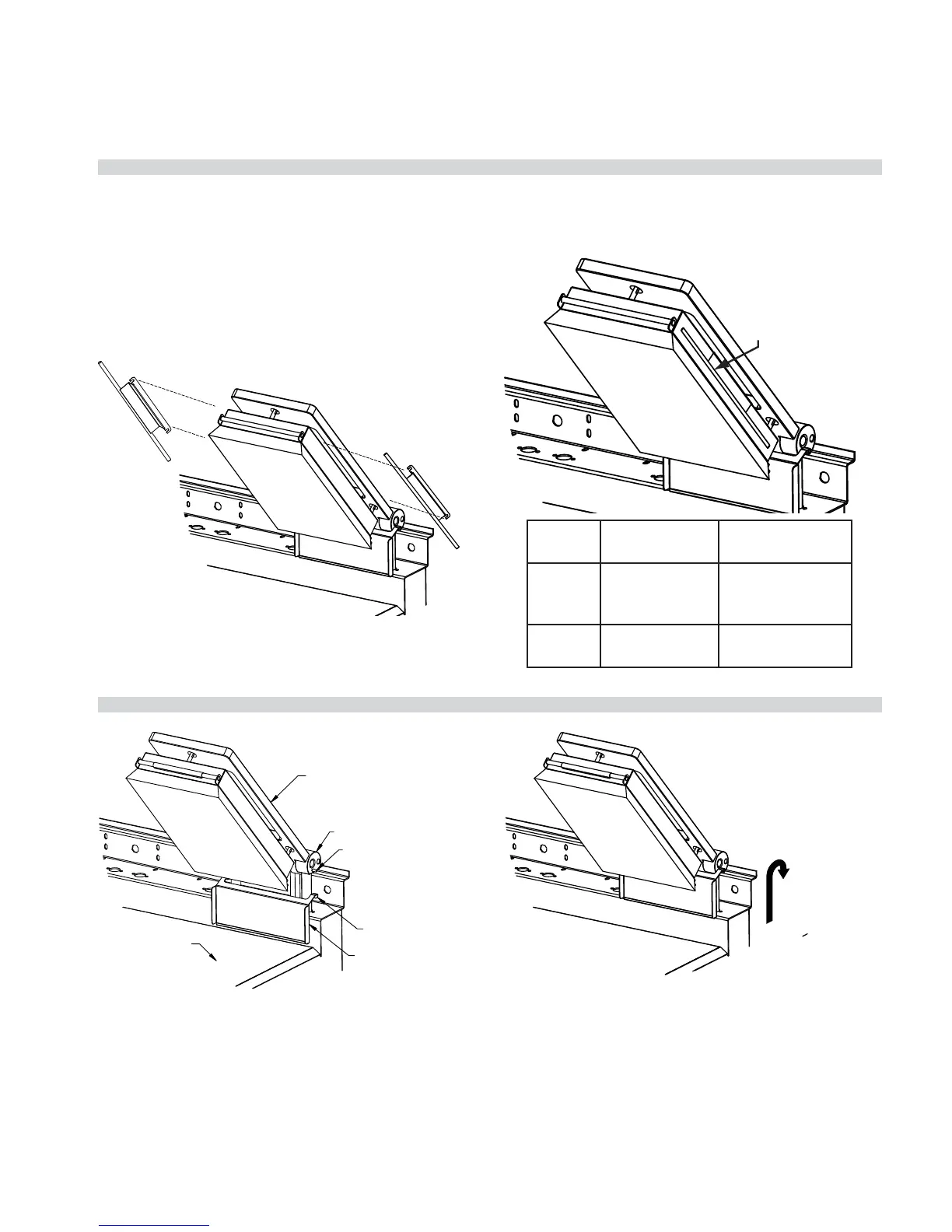

INSTALLATION OF WRAP AROUND RELEASE MATERIAL
MOUNTING BRACKETS
TEFLON
SIDE
MOUNTING
BKT
1. Ensure Electrical Power is unplugged before
proceeding to next step.
2. Loosen 2 screws from each side of the platen lid.
3. Position side bracket assemblies over screws and insert
into place.
CAUTION: UPPER PLATEN IS EXTREMELY HOT. WARNING: ISOLATE POWER SOURCE TO PREVENT ELECTRICAL SHOCK.
INSTALLATION OF SPLASH SHIELD
NOTE: SOME COMPONENTS OMITTED FOR CLARITY
SURFACE OF
GRILL PLATE
SPLASH SHIELD TAB
ARM CARRIAGE BLOCK PIN
SPLASH SHIELD
ARM CARRIAGE BLOCK
PLATEN ARM
NOTE: SOME COMPONENTS OMITTED FOR CLARITY
SPLASH SHIELD TABS
UP AND OVER
ARM CARRIAGE PINS
IN THIS DIRECTION
4. Retighten four (4) screws on the platen lid.
Part
Number
Description Qty Per Full Size
(3P) Grill
4526334 Te on Bracket,
Side (3 Platen
Grill)
6 Grill, 2 Platen
4527294 Te on Clip w/
Flange
15 Grill, 5 Platen
To Next Page
