Garland XPE24 Service Manual

14 Document: GAR_SM_4601777 (4/16)
General Information Section 1

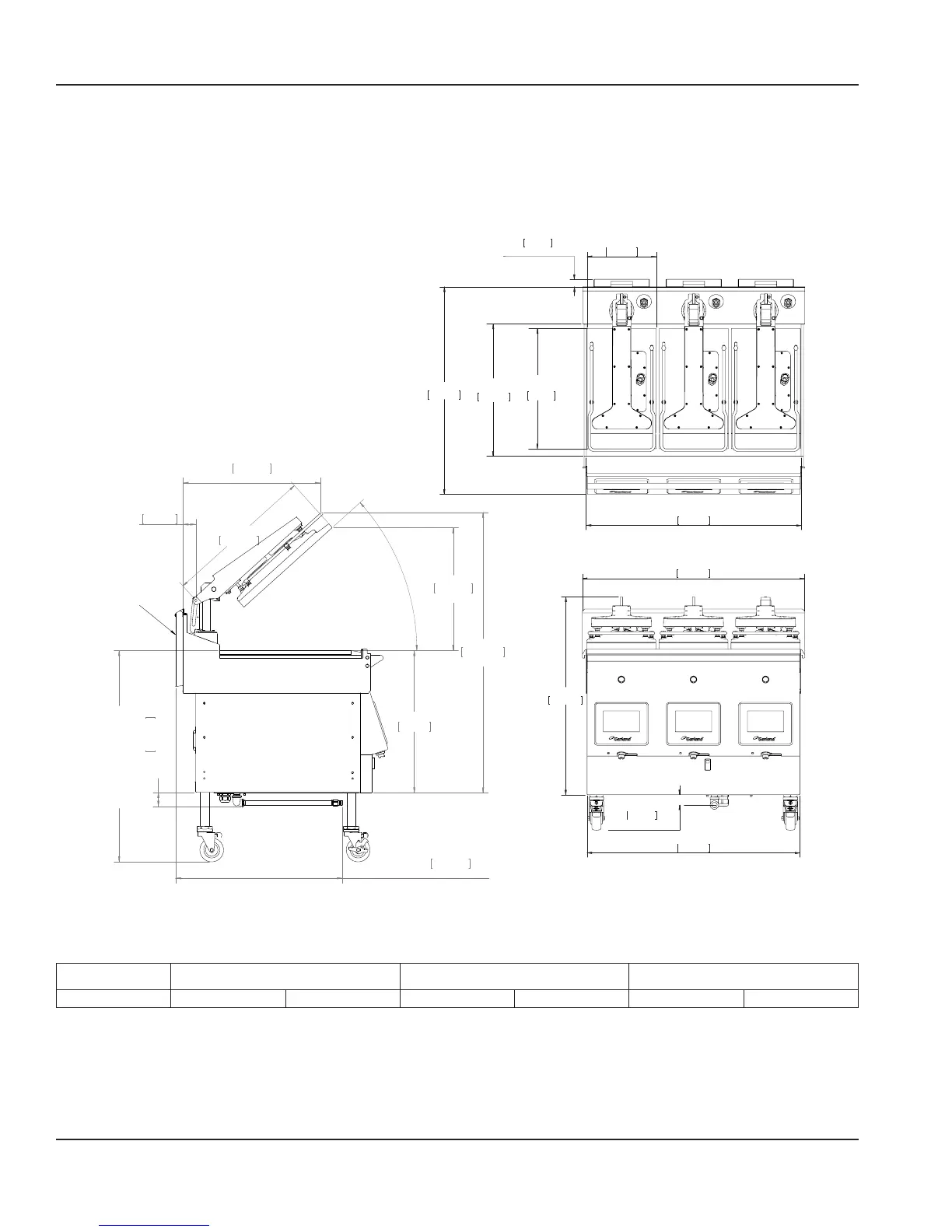

3 Platen Dimensions Specification
Dimensions: model: XP(E/G)36
TOP HEATER
11.500in
292.1mm
TOP HEATER
20.000in
508mm
34.505in
876.4mm
1.255in
31.9mm
FOR GAS UNITS ONLY
GRILL PLATE
22.000in
558.8mm
GRILL PLATE
35.750in
908.1mm
TOP VIEW
36.979in
939.3mm
32.941in
836.7mm
35.413in
899.5mm
1.726in
43.8mm
FOR GAS UNITS ONLY
FRONT VIEW
42°
MAX
20.636in
524.1mm
MAX
23.978in
609mm
47.212in
1199.2mm
MAX
23.124in
587.4mm
MIN
25.250in
641.4mm
2.170in
55.1mm
35.574 MAX TO 29.887 MIN
[903.6 MAX TO 759.1 MIN]
GAS CONNECTION
28.068in
712.9mm
FOR GAS UNITS ONLY
2.359in
59.9mm
FOR GAS UNITS ONLY
FLUE BOX
FOR GAS
UNITS ONLY
Model Height* Width** Depth
XP(E/G)24
32 in 812 mm 24 in 610 mm 34.5 in
876 mm
* Height not including caster
** Without grease buckets.
