Garland XPE24 Service Manual

Document: GAR_SM_4601777 (4/16) 77
Section 7 Component Check Procedures

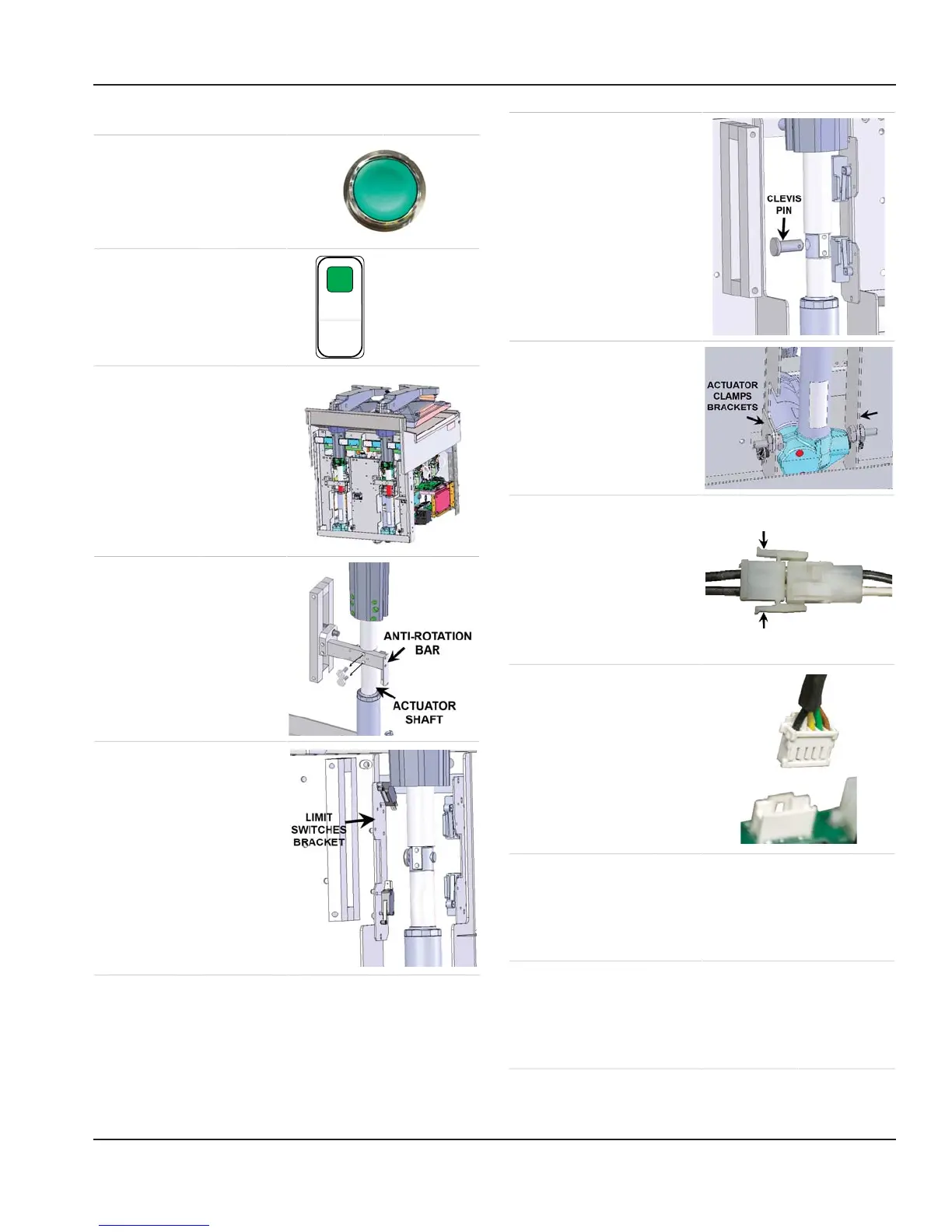

ACTUATOR REPLACEMENT PROCEDURE
1. Ensure that the
platen is in the down
position, by pressing
green button.
2. Turn power OFF
using the main
power switch.
Green light
indicates
that the
Grill power
is “ON”
3. Remove the lower
and upper rear
panel from the unit.
Remove the side
panel from the unit.
4. Remove the screws
that attach the anti-
rotation bar to the
shaft, and slide the
anti-rotate up to
remove it.
5. The bracket that
holds the upper &
lower switches needs
to be unscrewed
from the unit and
move out of the way
in order to remove
the clevis pin from
the shafts.
6. Remove clevis pin.
The platen may need
to be wedged into a
slightly lifted position
to relieve pressure on
the clevis pin enough
to remove it.
7. Remove the two
bolts of the actuator
clamp bracket, then
remove the brackets.
Store brackets, bolts
& nuts in a save place.
8. Disconnect the
actuator harness
2-pin power plug
by pressing the two
secure clips. Allow
enough slack to
remove the harness
freely.
9. Disconnect/
unclipped the
encoder harness plug
from the SIB board.
Be gently, never force
the connector. Allow
enough slack to
remove the harness
freely.
10. Move any remaining wires or harnesses that are
in the actuator way before tilting the actuator
out of the back of the unit. The actuator needs
to be tilted and rotated in order to slide out the
back opening..
11. Move any remaining wires or harnesses that are
in the actuator way before tilting the actuator
out of the back of the unit. The actuator needs
to be tilted and rotated in order to slide out the
back opening..
