Page 10-24 Cirrus Perspective™ Line Maintenance Manual
Rev. E 190-00920-00
10.6 AircraftRegistrationNumberEntry(GTX33OptionOnly)



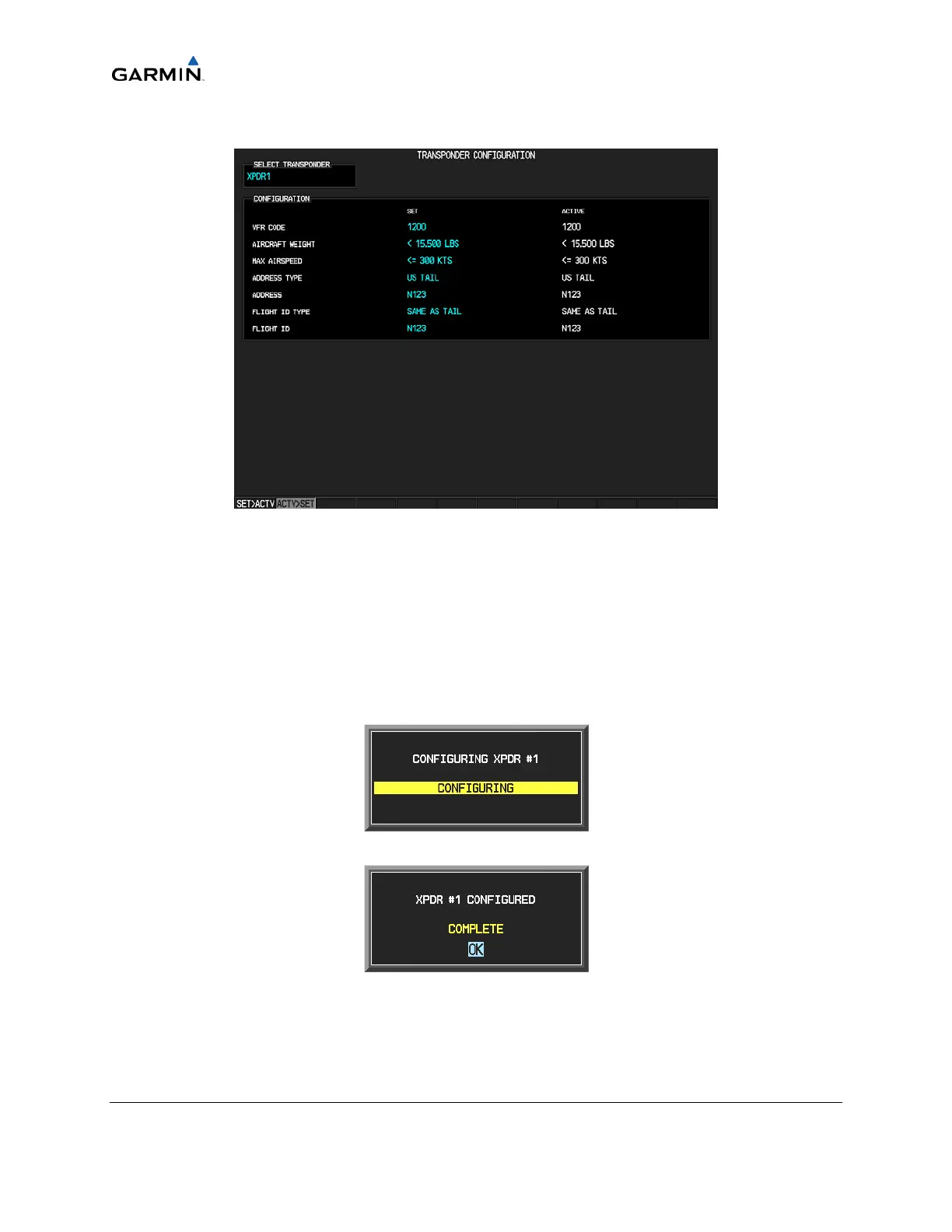

Figure10‐6.XPDR1Option

1. SelecttheGTXpagegrouponthePFDthenselecttheTRANSPONDERCONFIGURATION
page.
2. Makesurethe‘ADDRESSTYPE’is‘USTAIL’underthe‘SET’and‘ACTIVE’columns.
3. Activatethecursorandhighlightthe ‘ADDRESS’field.Usethesmall/largeFMSknobsto
entertheaircraftregistrationnumber.Oncethecorrectregistrationnumberisentered,
presstheENTkey.Thetransponderisconfiguring:

4. Thetransponderthenalertsthetechnicianofcompleteconfiguration:

5. PresstheENTkeyonthePFD.
6. Atthispoint,thetechnicianmayenteraFlightIDTypeandFlightIDnumberifdesired.
Thesystemdefaultsto‘SAMEASTAIL’.Aftertransponderconfigurationiscomplete,
deactivatethecursor.
