Garmin GMR FANTOM Series User Manual

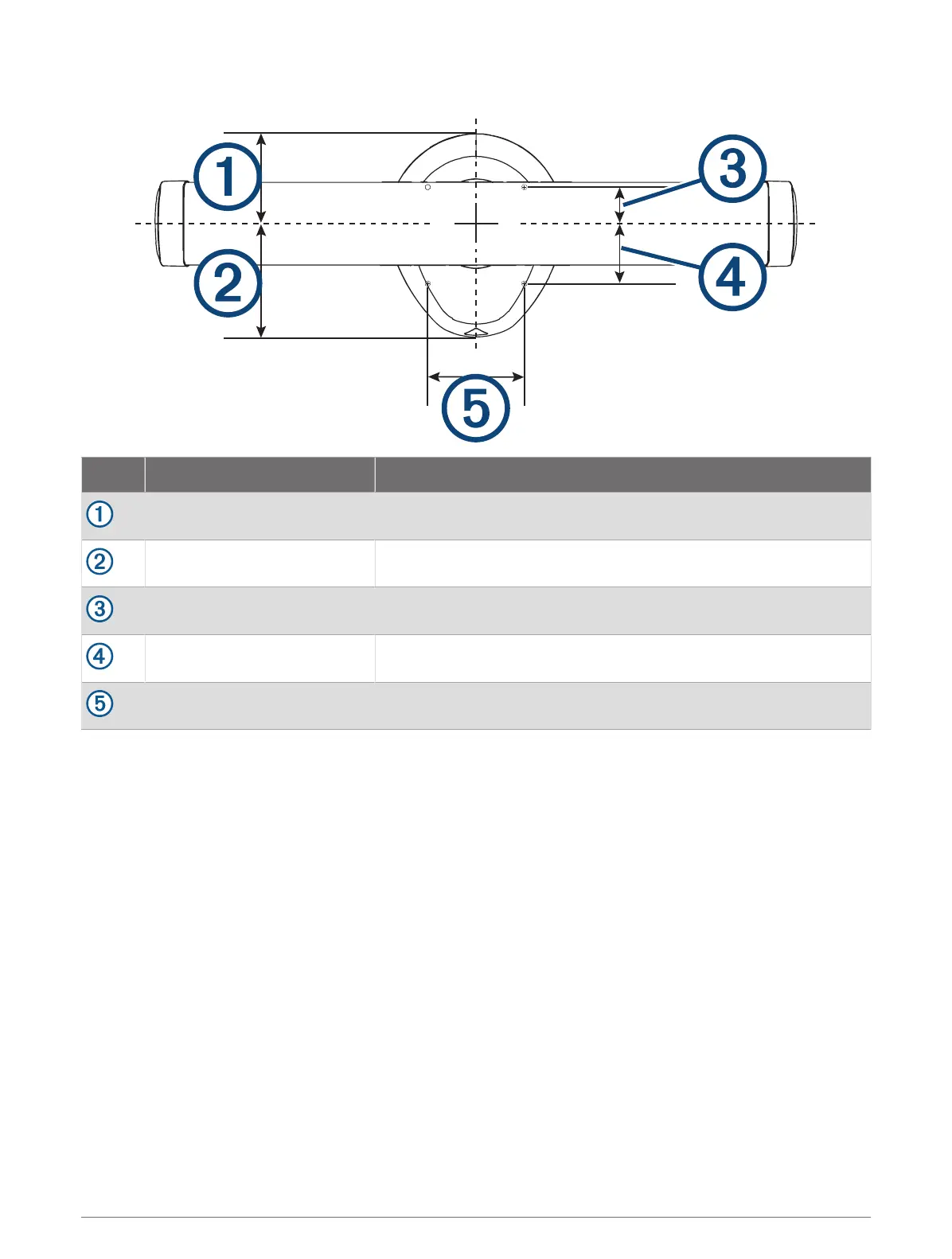

Dimensions
Item Measurement Description
185.9mm (7
5
/
16
in.) Center of rotation to the rear of the pedestal
234.7mm (9
1
/
4
in.) Center of rotation to the front of the pedestal
86mm (3
25
/
64
in.) Center of rotation to the rear mounting holes
114mm (4
1
/
2
in.) Center of rotation to the front mounting holes
200mm (7
7
/
8
in.) Distance between the mounting holes
14

Garmin GMR FANTOM Series Specifications

General

Range	Up to 72 nautical miles
Antenna Size	4 ft
Radar Type	Solid State
Rotation Speed	24 RPM standard, 48 RPM high speed
Display Compatibility	Garmin chartplotters
