Garmin GMR FANTOM Series User Manual

Connecting Directly to Power
WARNING
When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or
product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product
specifications. Connecting the power cable without the appropriate fuse in place voids the product warranty.
NOTICE
If your radar was packaged with a voltage converter, you must install it with the voltage converter for the radar
to function properly (Connecting to Power Through the Voltage Converter, page5).
NOTE: Although some radar models do not require and are not packaged with a voltage converter, you can
purchase one from your local Garmin dealer or you can go to garmin.com. Using a voltage converter with these
models allows them to withstand stronger winds. Check the Specifications section for the radar's maximum
wind load (Specifications, page12).

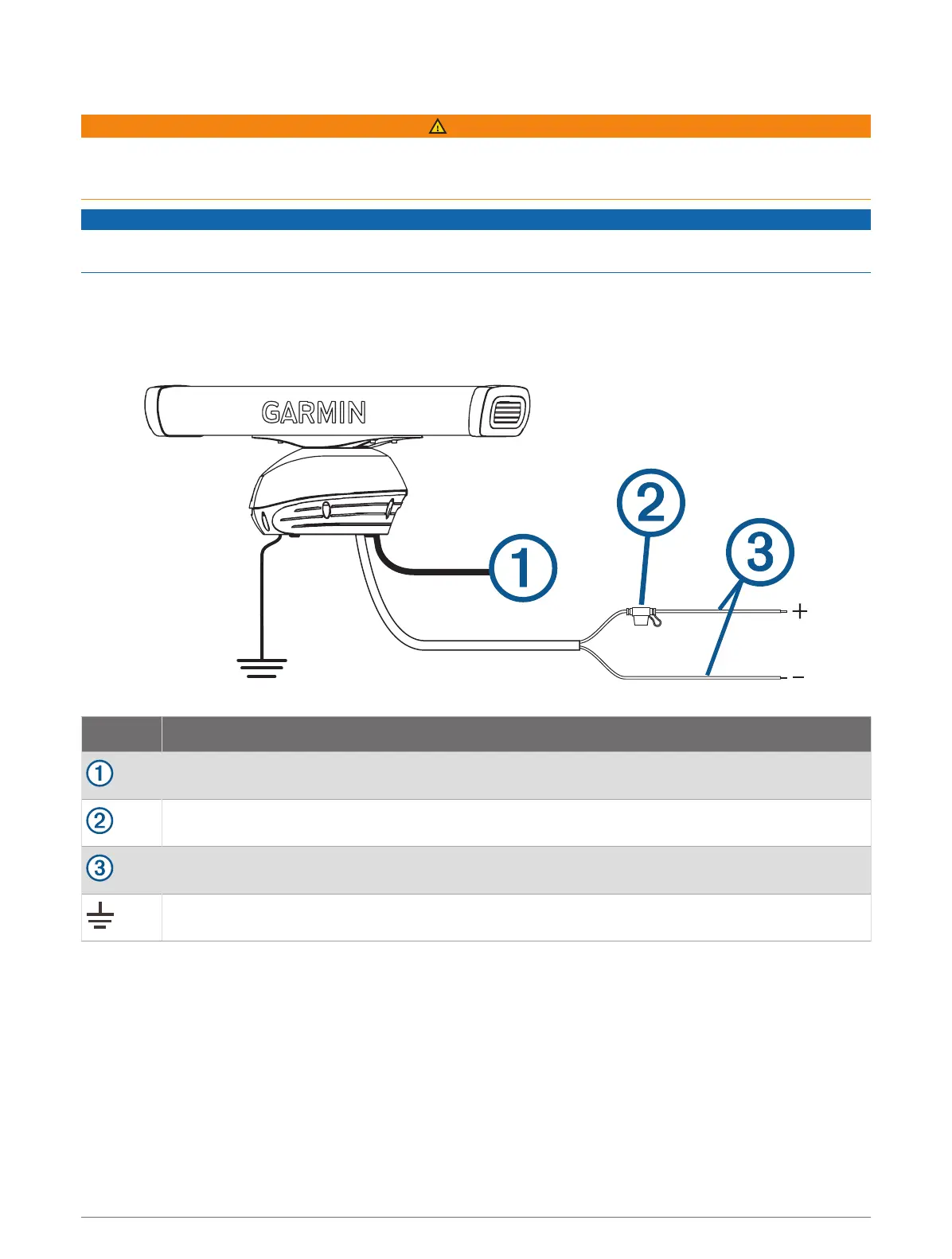

Item Description
Garmin BlueNet network or Garmin Marine Network
15 A fuse holder
To the boat battery (10 to 32Vdc)
Water ground connection
1
Route the power cable to the radar and boat battery.
2 Connect the power cable to the boat battery.
3 Connect the power cable to the POWER port on the radar.
7

Garmin GMR FANTOM Series Specifications

General

Range	Up to 72 nautical miles
Antenna Size	4 ft
Radar Type	Solid State
Rotation Speed	24 RPM standard, 48 RPM high speed
Display Compatibility	Garmin chartplotters
