Garmin GPS 175 User Manual

Navigation
190-02488-01 Rev. B Pilot’s Guide 3-27
Active Flight Plan
FEATURE REQUIREMENTS
• Active flight plan
FEATURE LIMITATIONS
• Displays up to 100 waypoints for an active flight plan
1 Selectable Data Field Columns 5 Add Waypoint Key
2 Waypoint Identifier Column 6 Leg Data
3 Active Leg Indicator 7 Waypoint Type Icon
4 Current Waypoint

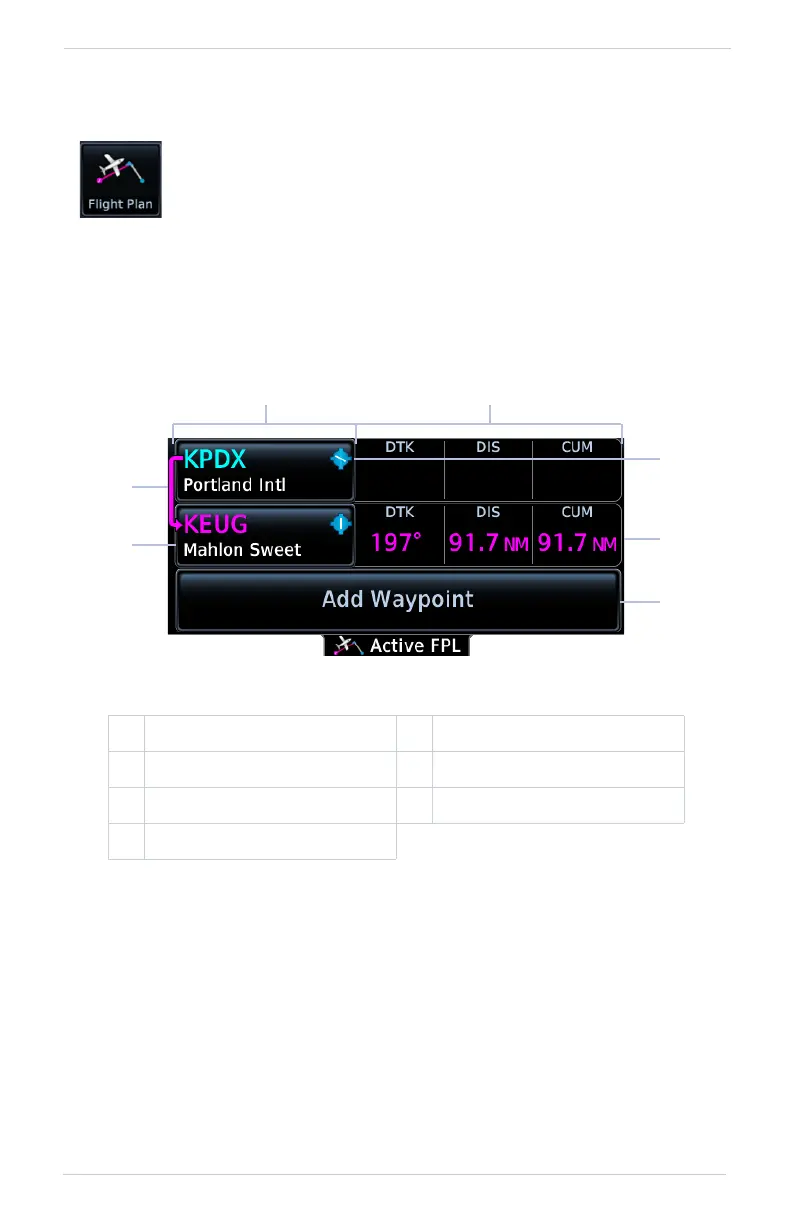

Current flight plan information displays as a scrolling list on the
Active Flight Plan (FPL) page.
Active Flight Plan Page
1
7
6
3
4
5
2

Garmin GPS 175 Specifications

General

Display Resolution	480 x 272 pixels
GPS Receiver	WAAS GPS
Receiver Type	GPS/WAAS
Display Type	Color TFT
Mounting	Panel mount
Interfaces	RS-232, ARINC 429
Operating Temperature	-20°C to +55°C
Type	Aviation GPS Navigator
Interface	RS-232
Database	Obstacle, Terrain
Compatibility	Compatible with select autopilots
