50

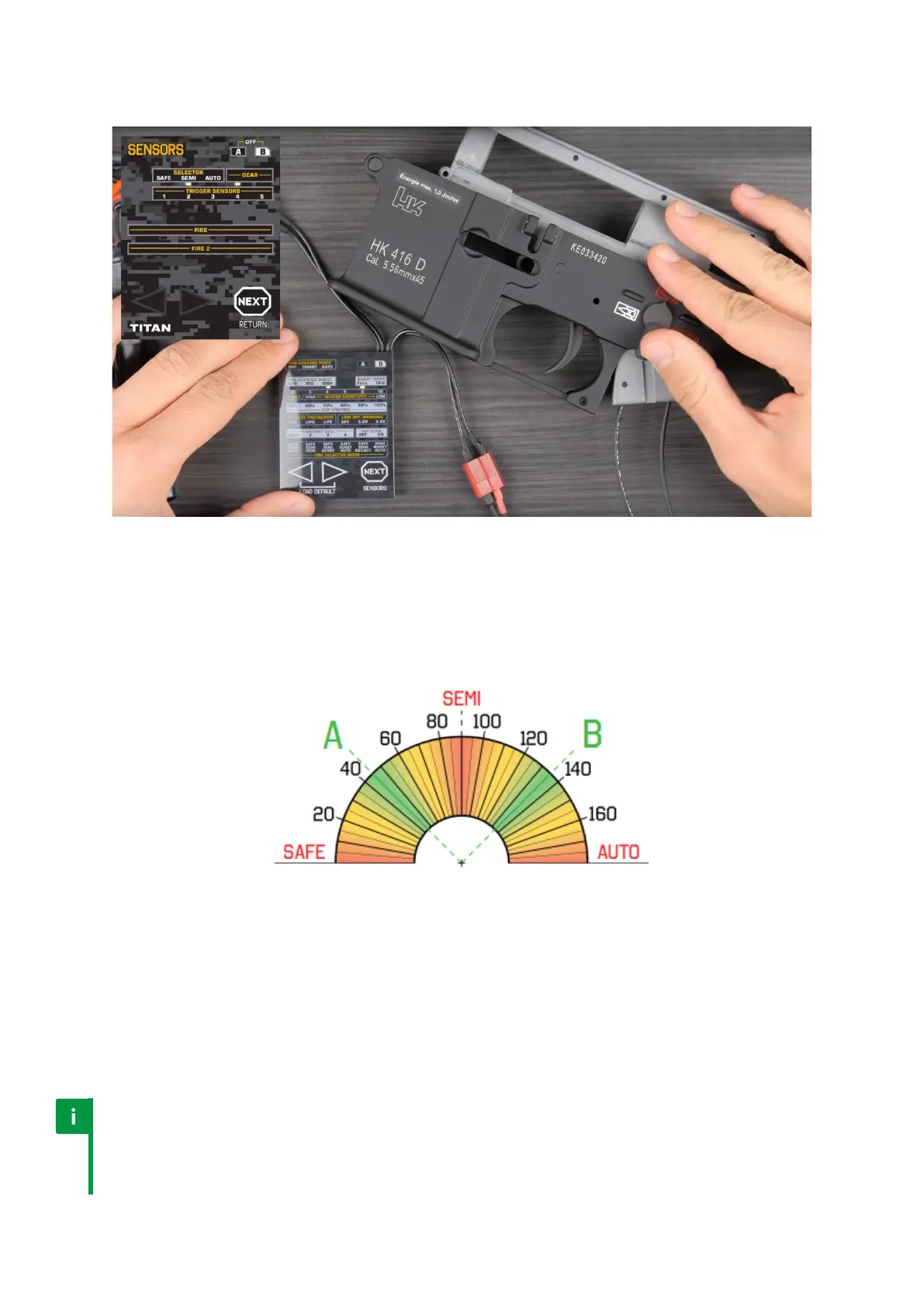

30. Insert gearbox into body and check whether the TITAN
detects the re selector position correctly.
Switch should take place approximately halfway between selector positions:
a) SAFE - SEMI ~45°
b) SEMI - AUTO ~135°
Otherwise, you need to modify the selector plate with other sticker.
31. If all the sensors work awlessy, you can assemble the gearbox. Do not use too much
grease. In a critical situation, excessive grease may cover a sensor.
Notice
A few initial shots are ‘calibration shots’. TITAN adapts to the gearbox
conguration. In order to readapt TITAN, you must restore factory settings
or change gear ratio. This is necessary e. g. if you replaced motor
