34
6.4. Installation

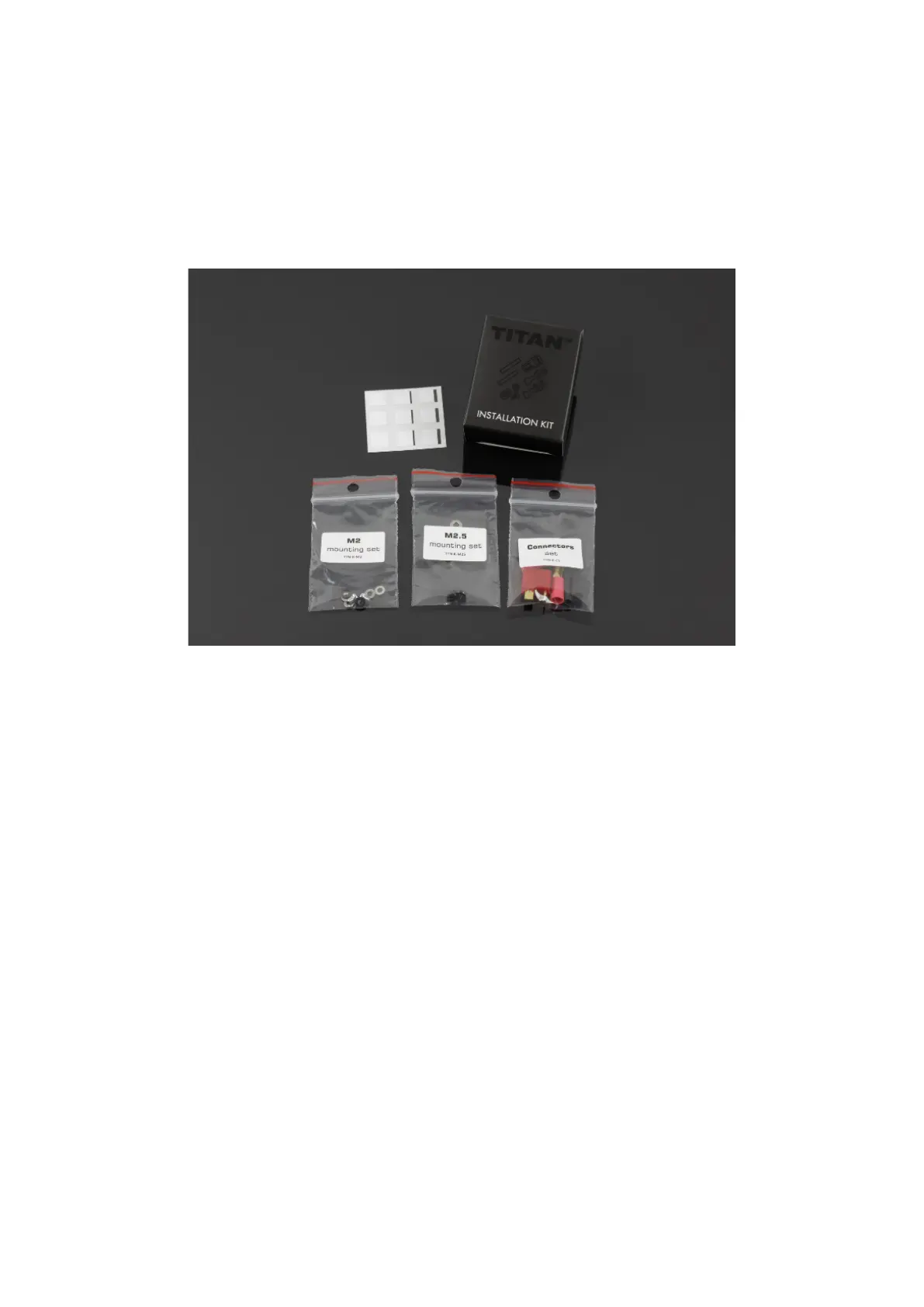

Installation Kit contents:
1. Selector plate stickers
2. Female deans-t connector
3. Motor connectors 2.8 x 0.5 mm [0.11 x 0.02 in]
4. 0.7mm [0.03 in] screw and washers set
5. 0.5mm [0.02 in] screw and washers set
You will need:
cross-head screwdriver
at-blade screwdriver
metal le or milling machine
solvent
grease
USB-Link, micro USB-Cable and PC / MAC or OTG cable and Android device
Follow the steps below in order to mount the TITAN drop-in module:
1. Remove the gearbox from the AEG body.
2. Disassemble your gearbox, take out all the internals.
3. Clean the gearbox case using solvent.

Other manuals for Gate Titan

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gate Titan and is the answer not in the manual?

Gate Titan Specifications

General IconGeneral
MOSFETYes
Battery protectionYes
Trigger sensitivity adjustmentYes
Pre-cockingYes
ROF controlYes
Active brakeYes
Diagnostic systemYes
ProgrammableYes
Cycle DetectionYes
CompatibilityV2 Gearbox
Low current consumption in sleep mode0.2mA
ConnectivityUSB-Link, Blu-Link
Fire ModesSemi, Burst
Bluetooth supportYes
