56
Notice

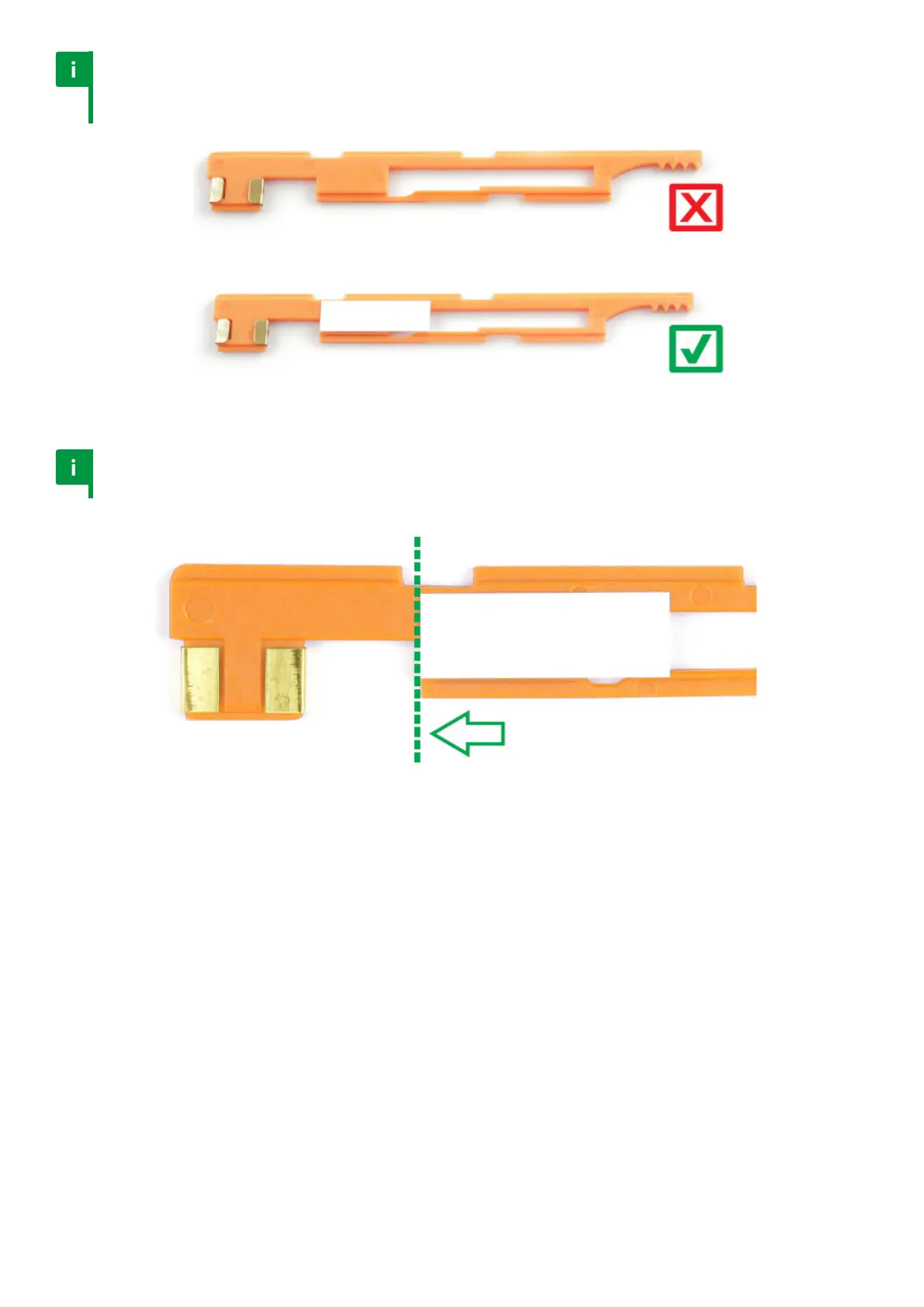

The selector plate requires modication. Place the selector
sticker according to the photos below.
Notice
The sticker position is very important.
7.4. Installation
Installation kit contents:
1. Selector plate stickers (3 pcs)
2. Trigger stickers (6 pcs)
3. Connectors set
4. 0.15mm [0.006 in] trigger anti-backlash stickers (3 pcs)
5. 0.3mm [0.012 in] trigger anti-backlash stickers (3 pcs)
6. 0.5mm [0.02 in] trigger anti-backlash stickers (3 pcs)
7. 0.3mm [0.012 in] washers set
8. 0.2mm [0.008 in] washers set
9. 0.1mm [0.004 in] washers set

Other manuals for Gate Titan

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gate Titan and is the answer not in the manual?

Gate Titan Specifications

General IconGeneral
MOSFETYes
Battery protectionYes
Trigger sensitivity adjustmentYes
Pre-cockingYes
ROF controlYes
Active brakeYes
Diagnostic systemYes
ProgrammableYes
Cycle DetectionYes
CompatibilityV2 Gearbox
Low current consumption in sleep mode0.2mA
ConnectivityUSB-Link, Blu-Link
Fire ModesSemi, Burst
Bluetooth supportYes
