Gate Titan User Manual

6
Notice

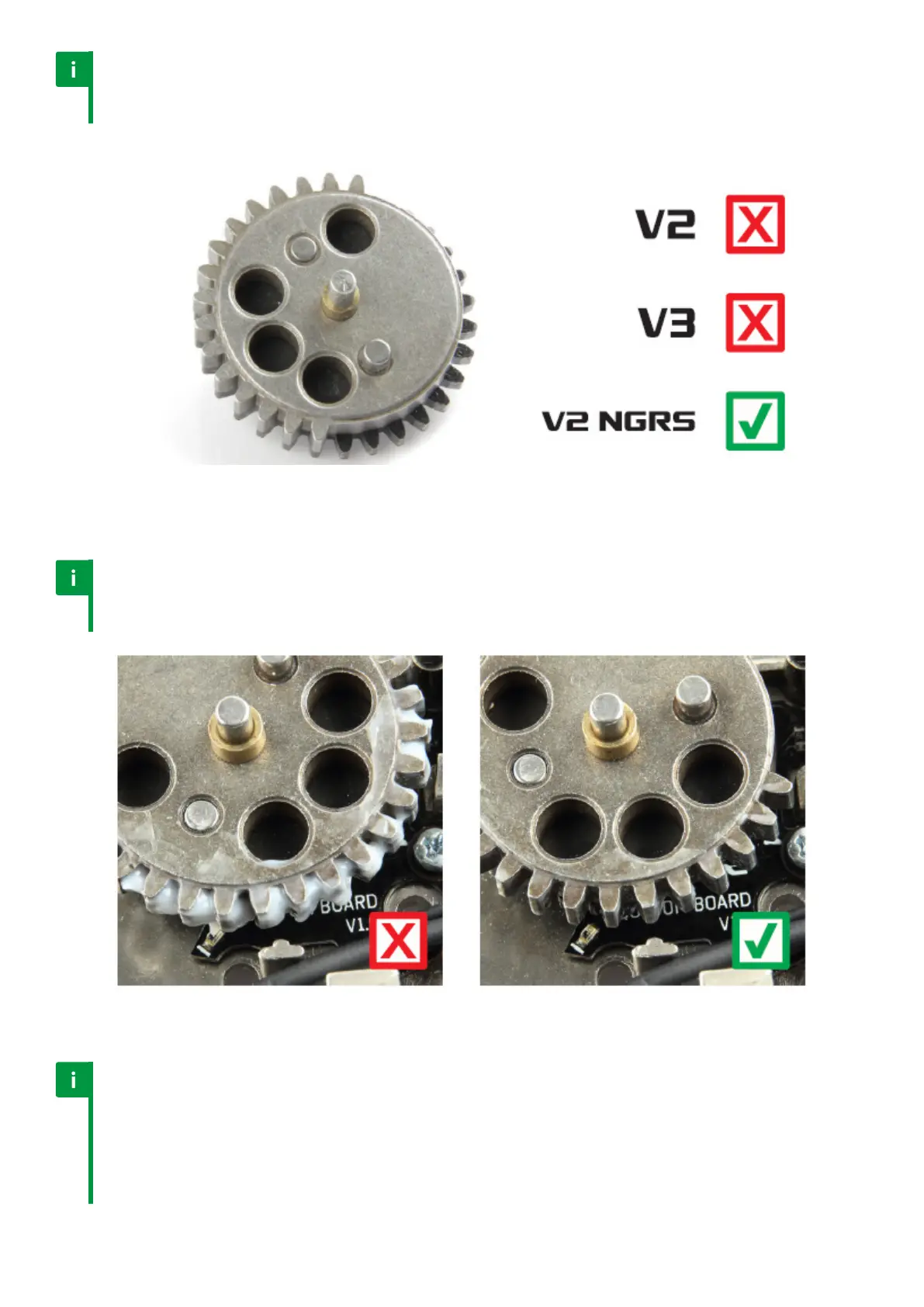

TITAN V2 and V3 do not support the Innite torque-up gears.
TITAN V2 NGRS supports the Innite torque-up gears.
Notice
Do not use too much grease. Excessive grease may cover gaps
between teeth what will cause improper cycle detection.
Notice
For your own safety, you should install an additional fuse between the battery
and the drop-in module. The fuse should be placed very close to the battery.
It will protect the battery in case of: (1) incorrectly connecting positive and
negative battery terminals; (2) shorting the power cords which connect
battery and TITAN; (3) mechanical damage to the drop-in module.

Gate Titan Specifications

General

MOSFET	Yes
Battery protection	Yes
Trigger sensitivity adjustment	Yes
Pre-cocking	Yes
ROF control	Yes
Active brake	Yes
Diagnostic system	Yes
Programmable	Yes
Cycle Detection	Yes
Compatibility	V2 Gearbox
Low current consumption in sleep mode	0.2mA
Connectivity	USB-Link, Blu-Link
Fire Modes	Semi, Burst
Bluetooth support	Yes
