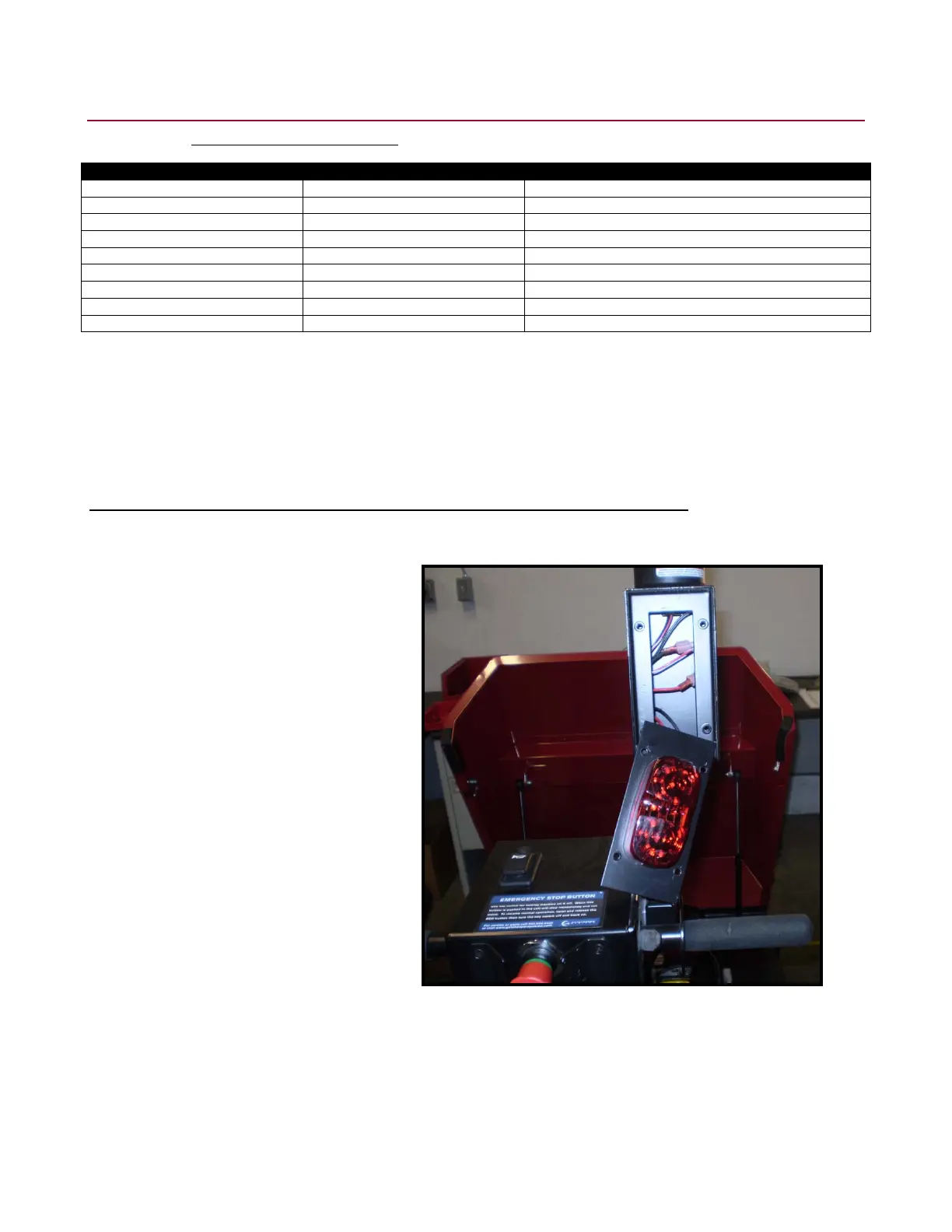

Gatekeeper Systems CartManager XD+ Field Technician Guide

Strobe Light Kit Upgrade
Parts Needed: BOM Part Number: E500131-002
Quantity
Part Number
Part Description
1
F14753-402
Upper arm weldment
1
F14753-401
Guard strobe light
1
E500238-01
Strobe light
2
F14753-41B
Arm I mount bushing
2
30512
Large male connector
2
30513
Large female connector
4
0145385
10-24 x 38 screws
1
H500409-01
Light pole plug
20”
Expandable sleeve
You will need:
• Wire cutter
• Wire stripper
• Crimper
• #2 Phillips screwdriver
• 1-1/8” wrench
**Caution, please disconnect power to the CartManager before working on the machine. **
Assembly Steps:
1. Remove the brake light assembly.
Disconnect all four wires which go to the
brake light and strobe light. Remove the
strobe light. Cut off the four female
connectors which are on wires #45, 43,
58, and 44.
