GAUI X4 - Page 12

5
GAUI
TAI SHIH HOBBY CORPORATION

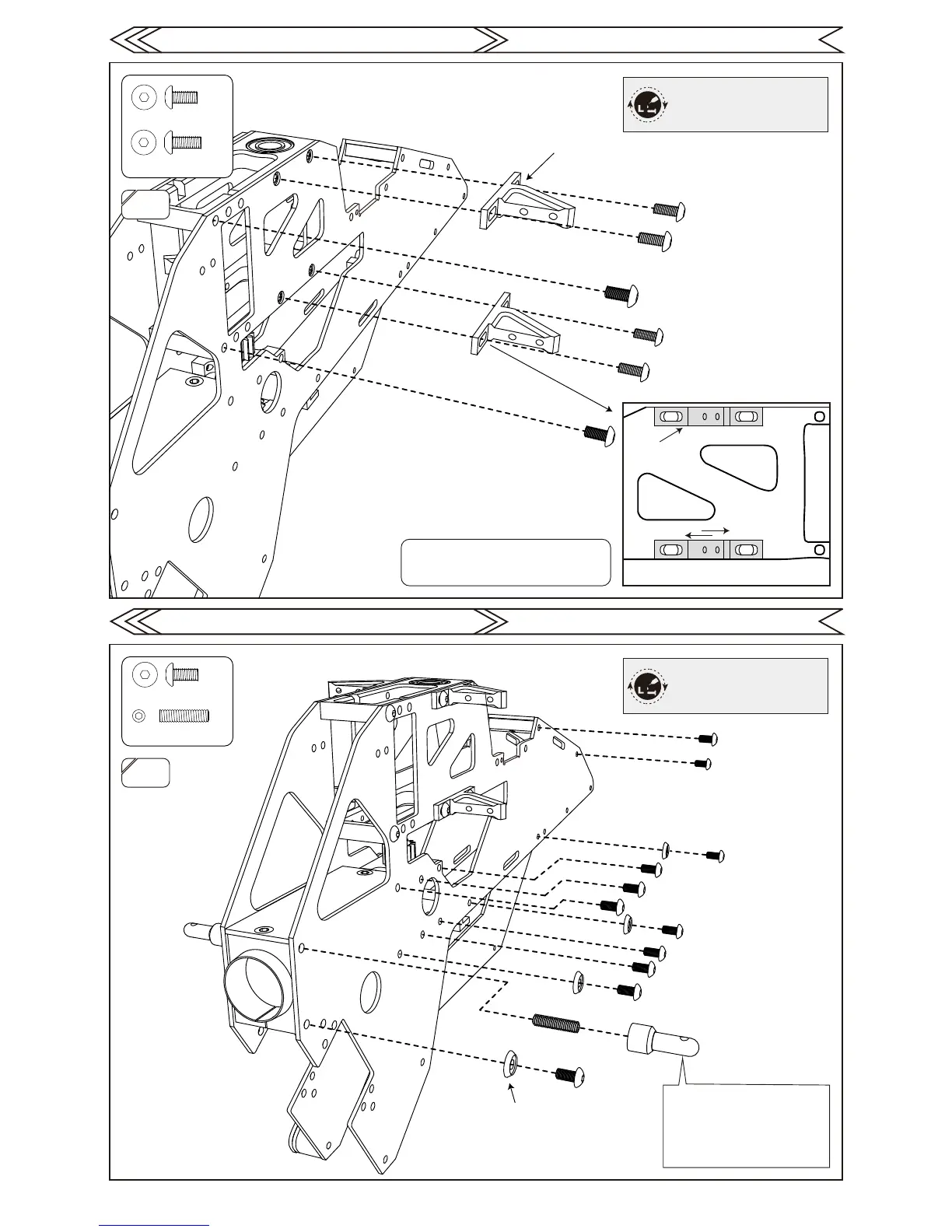

Frame assembly
機身組裝
GAUI
TAI SHIH HOBBY CORPORATION
Frame assembly
機身組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
First install servo on servo mount with M3x7 screws
but do not tighten screw, adjust servo placement
according to servo used.
Servo base can adjust L&R, refer to P.11.
M3x6........................x11
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
Servo mount
伺服機座
M3x6
M3x6
M3x7
M3x7
M3x7
M3x7
M3x6........................x2
M3x7........................x4
組裝(艙罩支柱)時先將M3x12螺絲鎖入
支柱內，在使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
When assembling the canopy posts, fix
the M3x12 screw inside the post, use a
2mm hex screwdriver as a tool to tighten
the canopy posts.
螺絲墊片
Countersunk Washer
M3x6
M3x6
M3x6
M3x6
M3x6
M3x6
M3x6
M3x12
M3x6
M3x6
M3x6
M3x6
M3x12......................x1
Servo mount
伺服機座
伺服機座可配合P.11頁調整左右位置。先將伺服機座的M3x7螺絲含上不鎖緊，再配合右圖。
