GAUI
TAI SHIH HOBBY CORPORATION

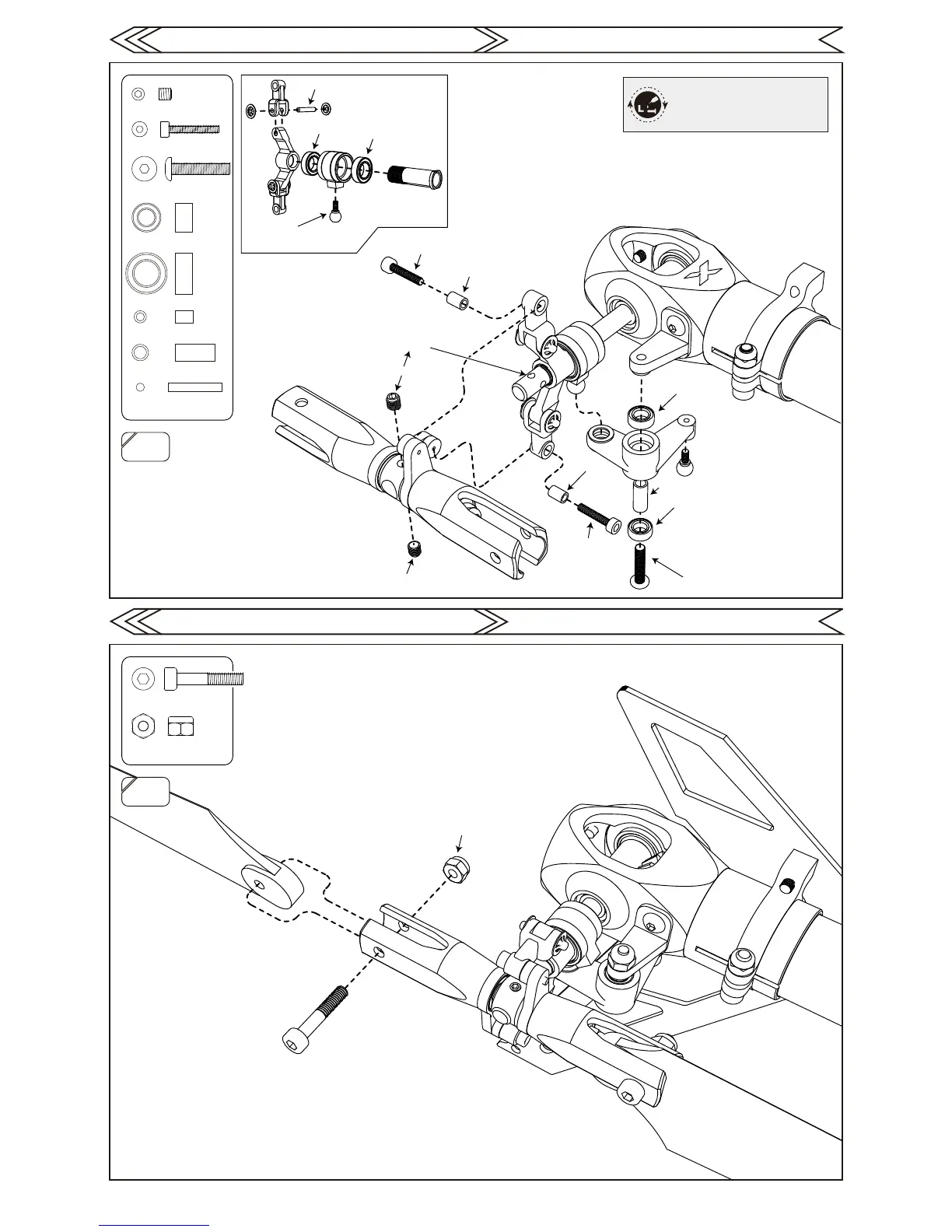

Tail gear box assembly
尾殼總成
GAUI
TAI SHIH HOBBY CORPORATION
Tail blades assembly
尾槳組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
B6x10x3
P2x13
B6x10x3
M3x3
M3x3
M2x10
M2x10
B4x7x2.5
B4x7x2.5
M3x14
P2x2.95x4.3
P3x4x9.5
P2x2.95x4.3
M3x3.......................x2
M2x10.....................x2
M3x14.....................x1
Bearing 4x7x2.5......x2
P3x4x9.5.................x1
Bearing 6x10x3.......x2
P2x13.....................x2
P2x2.95x4.3............x2
不銹鋼(4.8mm)球頭
M3x3 should be tightened
on the outer notch.
M3x3鎖入最外側孔位。
Stainless ball (4.8mm)
M3x16
N3x5.5L
M3x16.....................x2
N3x5.5L..................x2
