GAUI X4 - Page 24

17
GAUI
TAI SHIH HOBBY CORPORATION

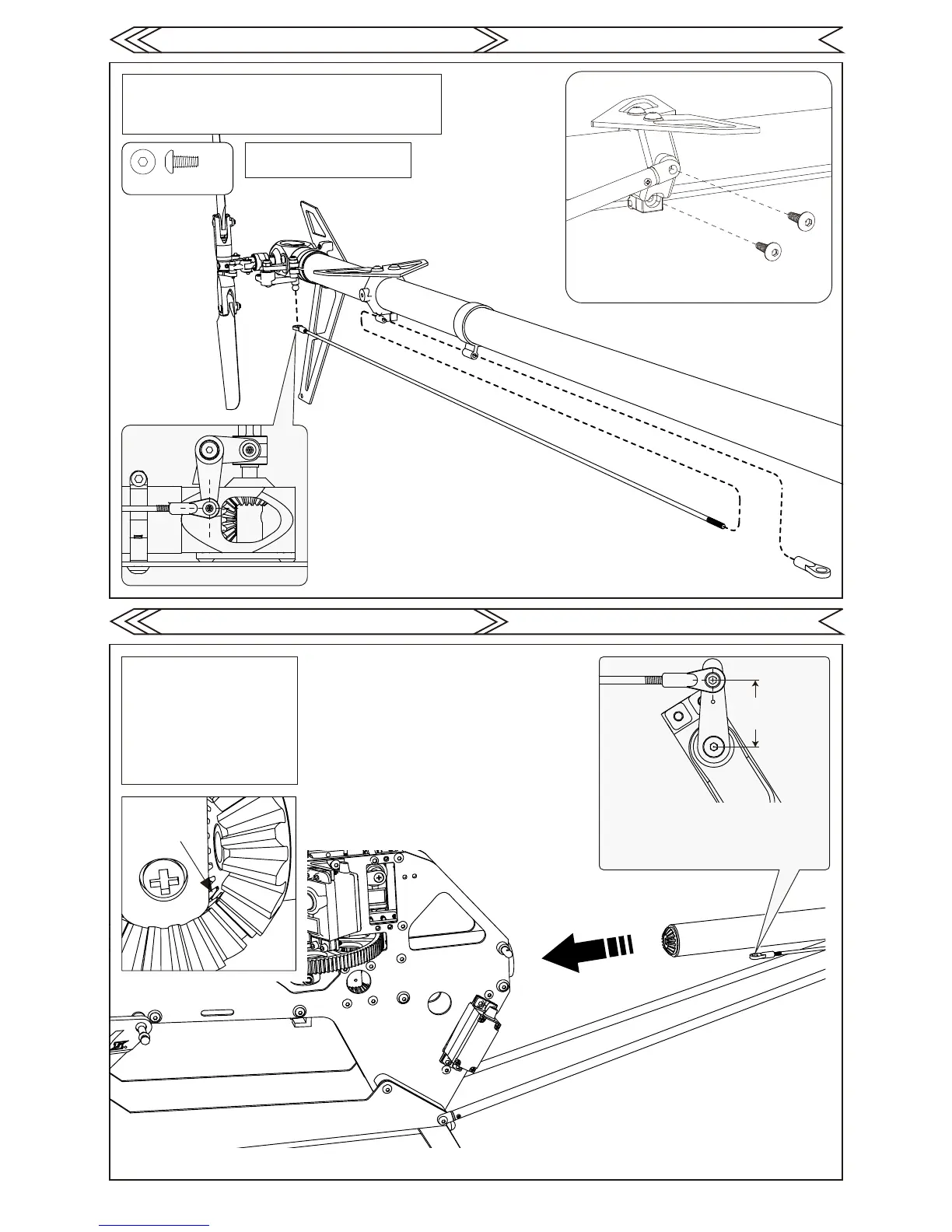

Tail push rod assembly
尾拉桿組裝
GAUI
TAI SHIH HOBBY CORPORATION
Frame assembly
機體組成
扣上伺服機舵片後，拉桿與伺服機舵片需
為90度，並注意尾舵也應為90度(如上圖)。
Insert the tail push rod through the guides then adjust
the linkages to achieve proper length.
將尾拉桿穿入尾管夾座及拉桿座，配合下圖調整拉桿長度。
1.Insert the tail boom, make
Install ball link to servo horn, tail push rod
and servo horn should form a 90 degree
angle (refer to above drawing).
15mm~18mm
sure the gear mesh is
approximately 0.1mm.
2.Tighten M3x18 screws to lock
tail boom in place (P.4, M3x18
was not tightened).
0.1mm
1.將傳動尾管置入機身並確認
齒隙約0.1mm。
2.鎖緊P.4頁的M3x18螺絲
Ø3x8
Ø3x8Ø3x8
Ø3x8.........................x3
Assemble the tail boom brace.
將兩支支撐桿鎖上水平翼管夾。
