Exchange the Conical Fixtures:

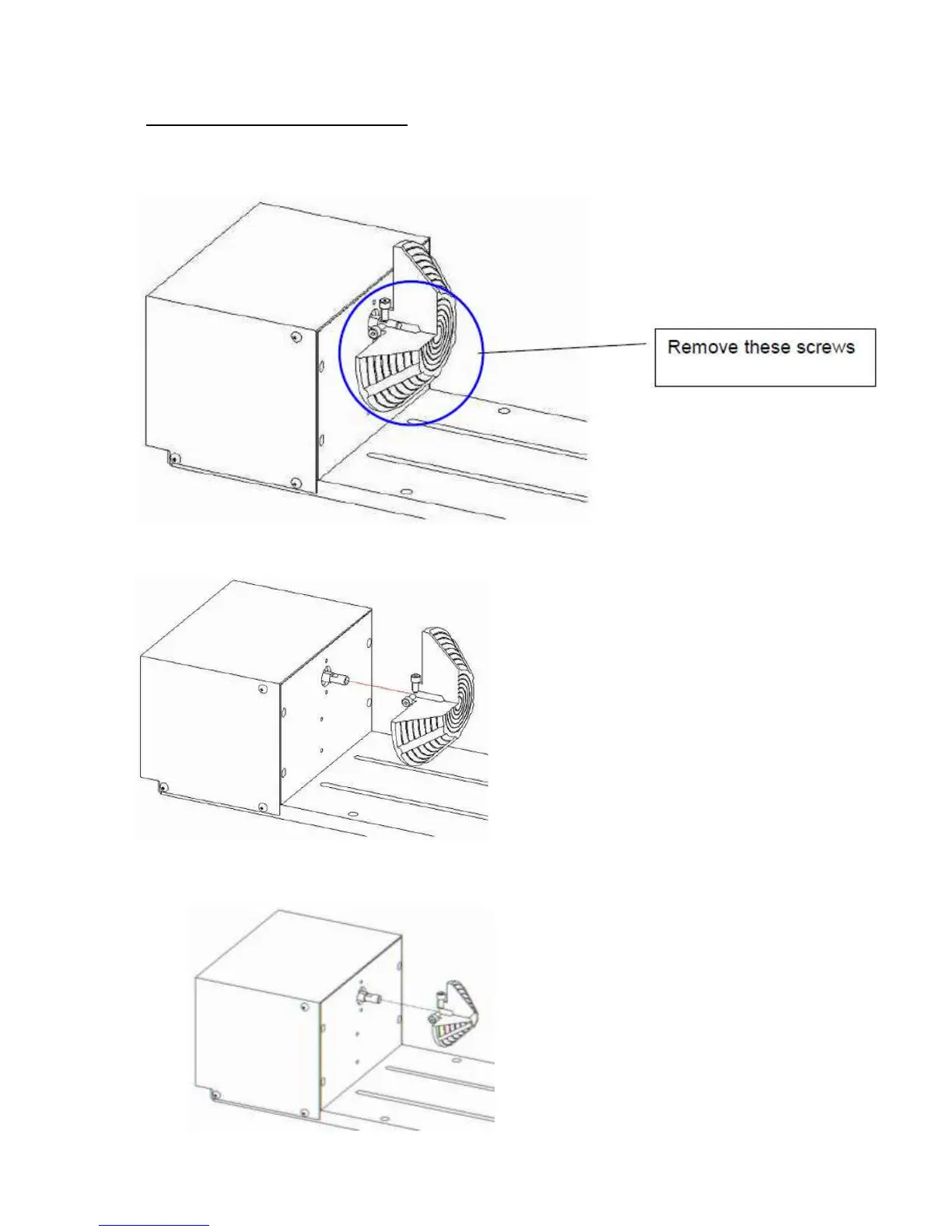

A. Remove the 2 screws shown in the picture below.
B. Detach the circular cylindrical cone by moving it in the direction of the arrow as shown below.
C. Assemble the smaller conical fixture onto the rotary attachment as shown below.
