3) Clean the lens in the proper manner.
4) Re-install the mirror after cleaning.
5) Tighten the thumbscrew.
6) Replace and secure the outer access panel.

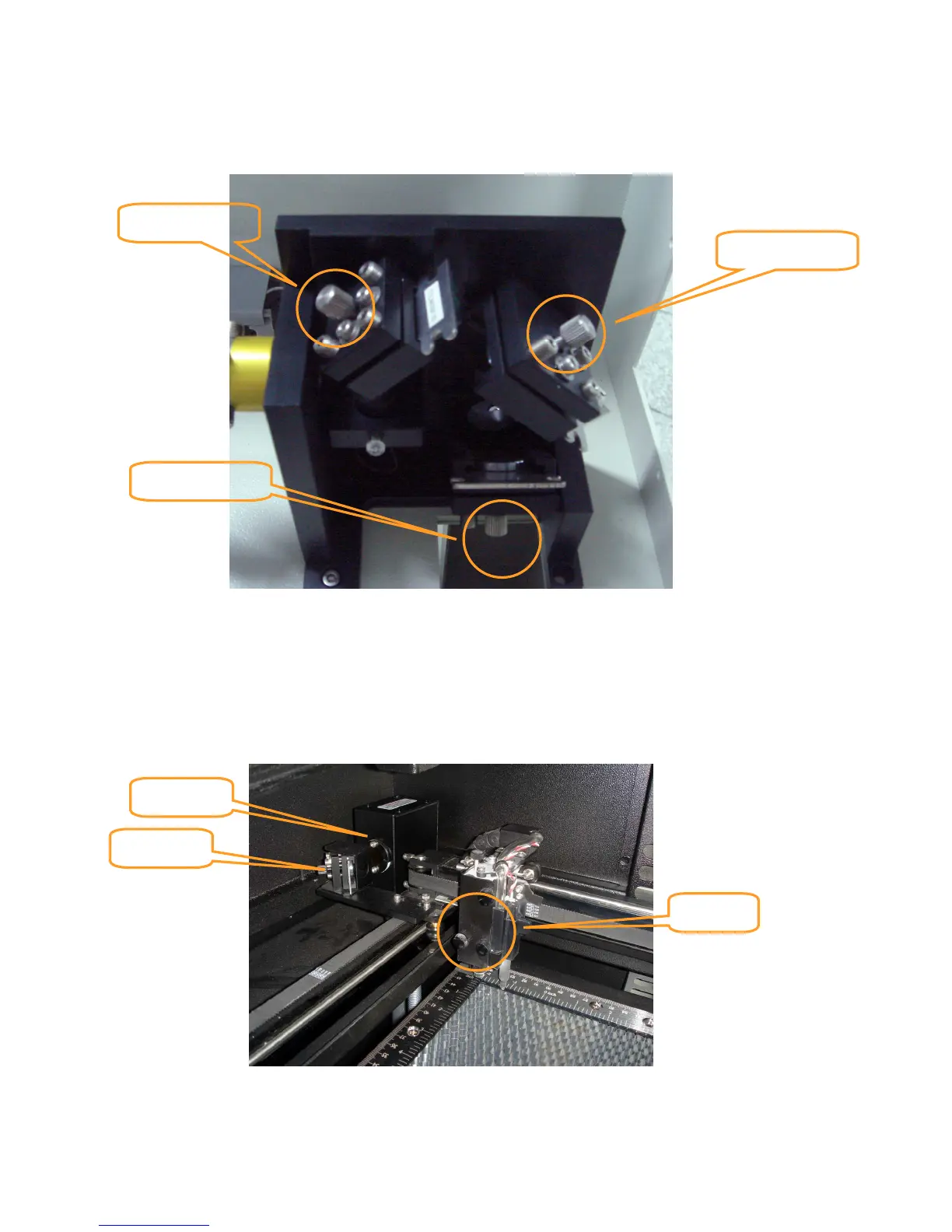

Mirror 2, 3, 4
These mirrors are located in the worktable area of the LaserPro X252RX & X380RX.
Mirror 3
Mirror 2
Mirror 4
Thumbscrew
Thumbscrew
Thumbscrew
