GDC SX-2000 - Connecting to the IMB and the Projector; Connecting to the SX-2000 Server

SX-2000 Installation Manual 11/8/2010
GDC Technology Ltd. Page 10 of 42
2.5.2.1 Connecting to the IMB and the projector

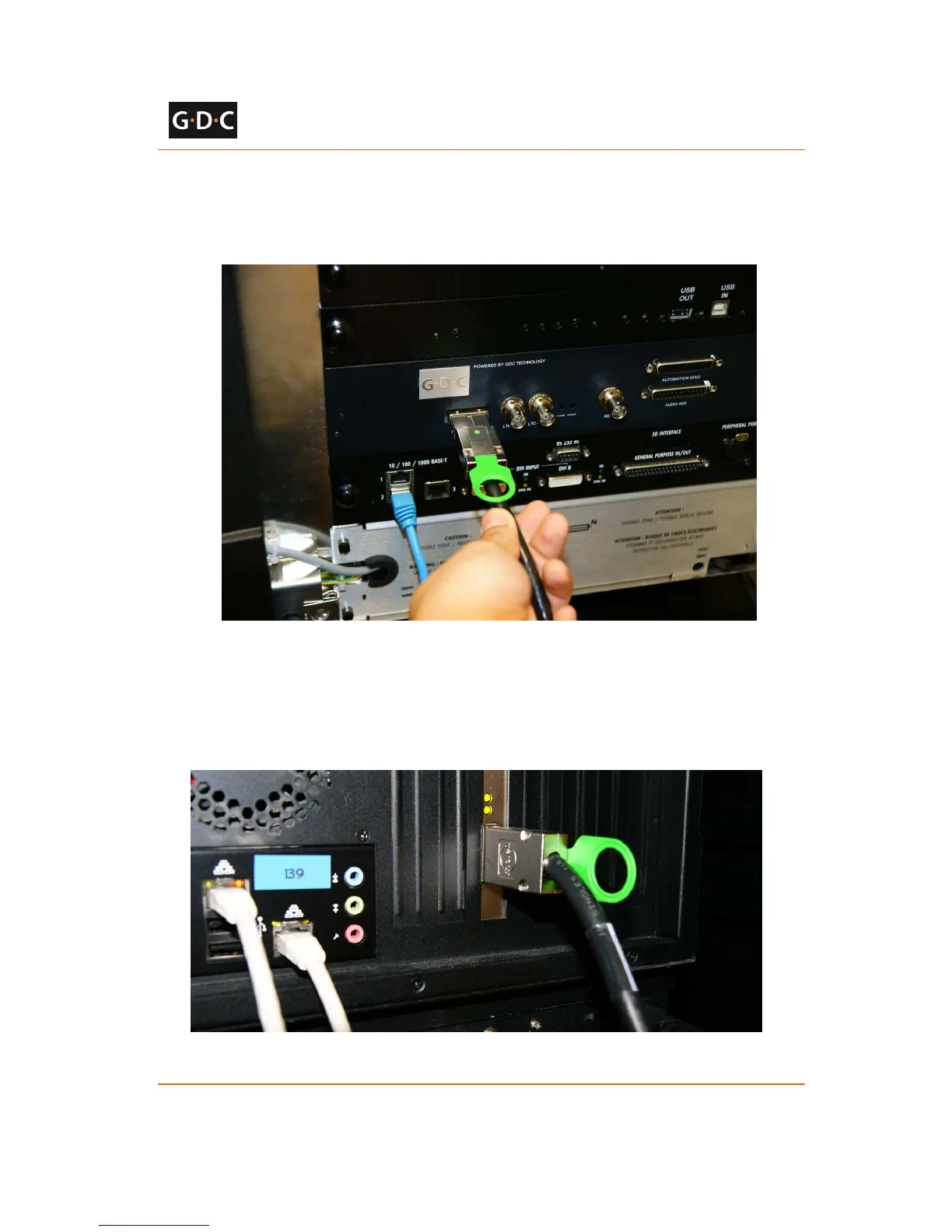

Connect the PCI-e cable and the network cable as shown in Figure 11.
Figure 11 Connecting cables on the projector
2.5.2.2 Connecting to the SX-2000 server
Connect the PCI-e cable and the network cables as shown in Figure 12.
Figure 12 Connecting cables on the SX-2000 server
