GDC SX-2000 - Automation Setup for USL JSD Devices

SX-2000 Installation Manual 11/8/2010
GDC Technology Ltd. Page 39 of 42
3. Enter the IP address of the USL DAX device (see Figure 45).
4. Click the [Save] button to save configured settings.

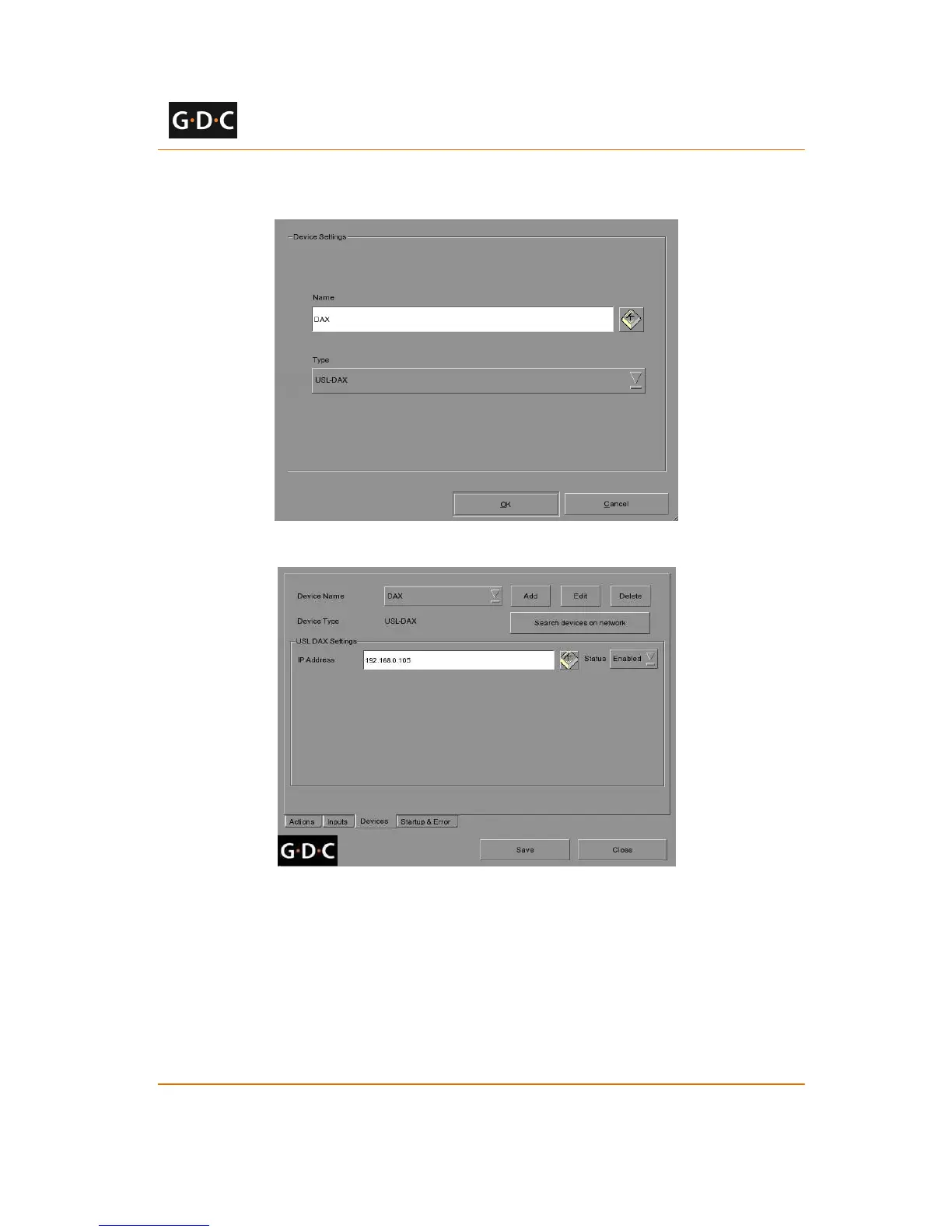

Figure 44 USL DAX automation device setup
Figure 45 Automation settings for USL DAX device
3.3.11 Automation setup for USL JSD devices
The SX-2000 server supports automation for USL JSD-80 and JSD-100 sound processor. Follow
the steps below to configure a USL JSD device in the server automation interface.
1. Click the [Add] button on the [Devices] tab and enter the name of the device. In this
case, it is “JSD”. Set the device type to “USL-JSD” (see Figure 46).
2. Click [OK] and set up the device parameters for the USL JSD device.
