GDC SX-2000 - 3 D Settings for Christie Series 2 Projectors

SX-2000 Installation Manual 11/8/2010
GDC Technology Ltd. Page 16 of 42
All 3D IMB channels on the Christie Series 2 projector should use the ‘IMB’ input and ‘4:4:4
(RGB)’ input data format (see Figure 19).

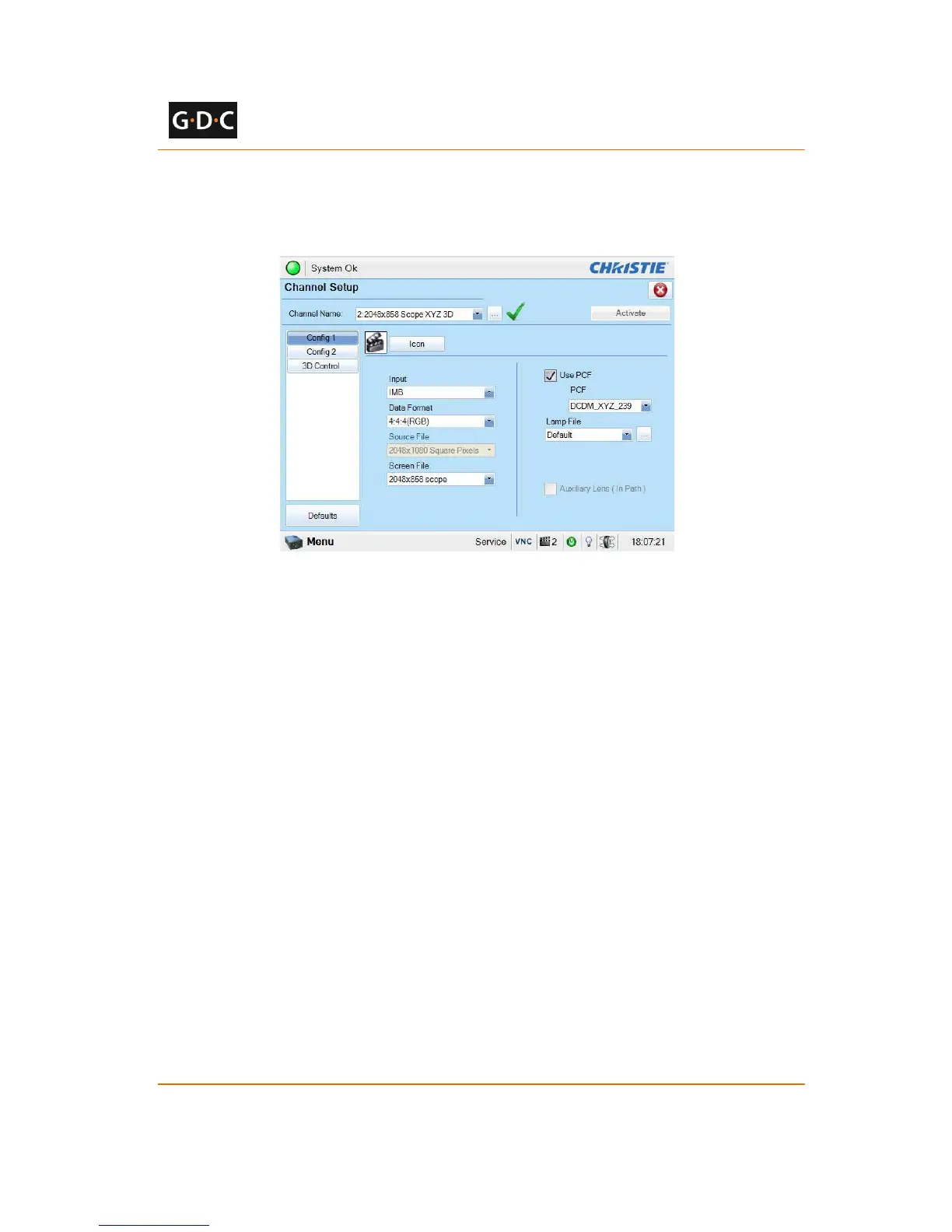

Figure 19 Projector input settings for Christie projectors
2.5.3.3.1 3D settings for Christie Series 2 projectors
The 3D macros for Christie Series 2 projectors should be configured with the following settings
for ‘3D Input Control’ (see Figure 20):
• 3D Sync Input Mode: Use ‘Line Interleave’ (first line=Left, second line=Right)
• L/R Display Reference: Not Used
• Frame Rate: 6:2
• L/R Display Sequence: Left (L1R1 L2R2)
