GDS VCI - Page 4

User’s Manual
4

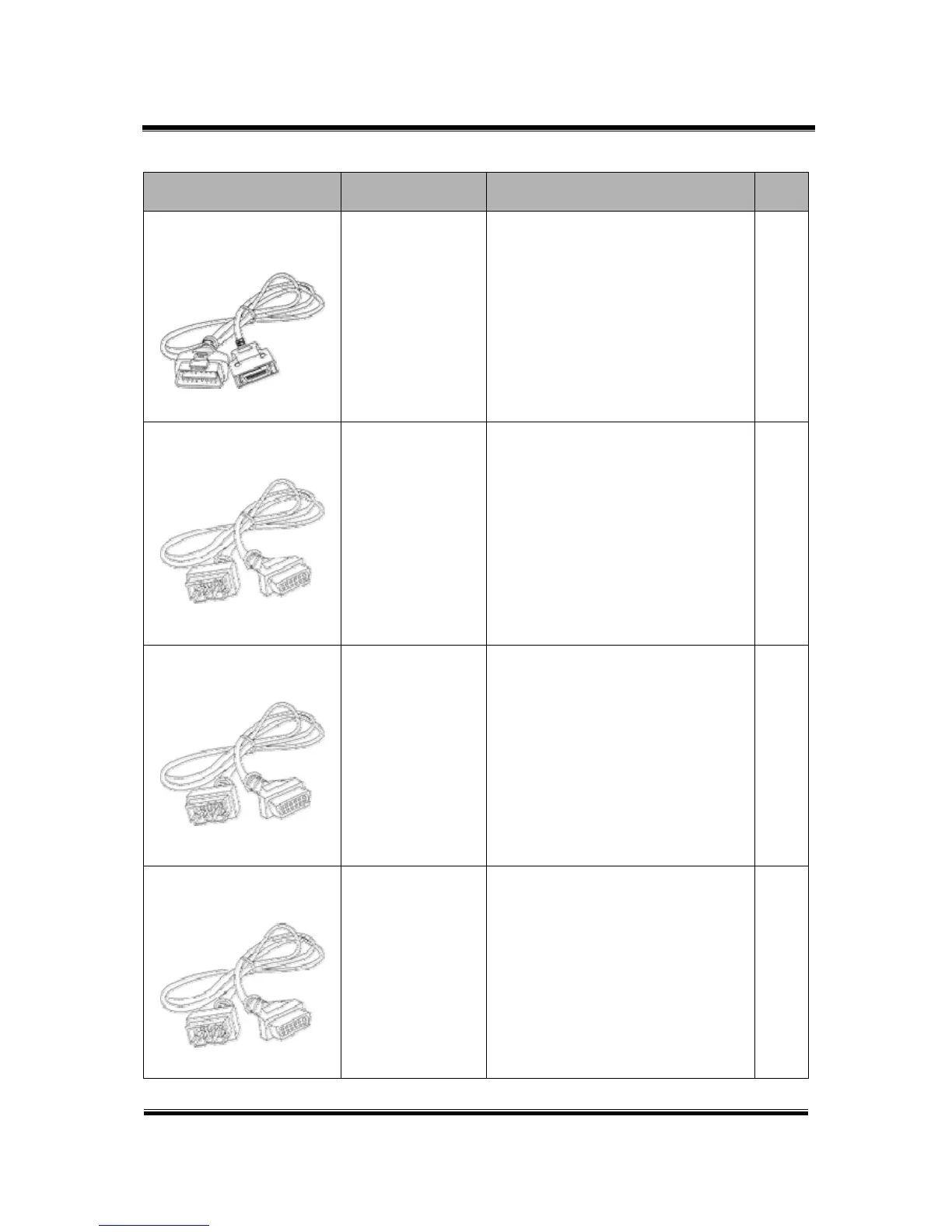

Part name Part number Description Qty.
Cable-DLC [26pin -16pin]
GHDM – 241000
DLC main cable for communication
between VCI module and (16pin)
OBD-II diagnosis connector on vehicle.
Length 2.0m.
1
Adapter [16pin-20pin(R)]
GHDM - 244000
DLC Adapter cable [16pin to 20pin(R)]
for DLC Cable (16-26) and 20-pin
diagnosis connector on vehicle.
20pin (R) connector is GRAY in color.
Length: 1.5m.
This cable is used for ECU Upgrade
(Reprogramming) on some Hyundai
vehicles.
1
Adapter [16pin-20pin(A)]
GHDM - 242000
DLC Adapter cable [16pin to 20pin(A)]
for connecting between DLC Cable
(16-26) and 20-pin diagnosis
connector on vehicle. 20pin (A)
connector is BLACK in color.
Length: 1.5m.
1
Adapter [16pin-20pin(B)]
GHDM - 243000
DLC Adapter cable [16pin to 20pin(B)]
for connecting between DLC Cable
(16-26) and 20-pin diagnosis
connector on some vehicles. 20pin (B)
connector is RED in color.
Length: 1.5m.
1
Module: A-01-001 (p.03)
