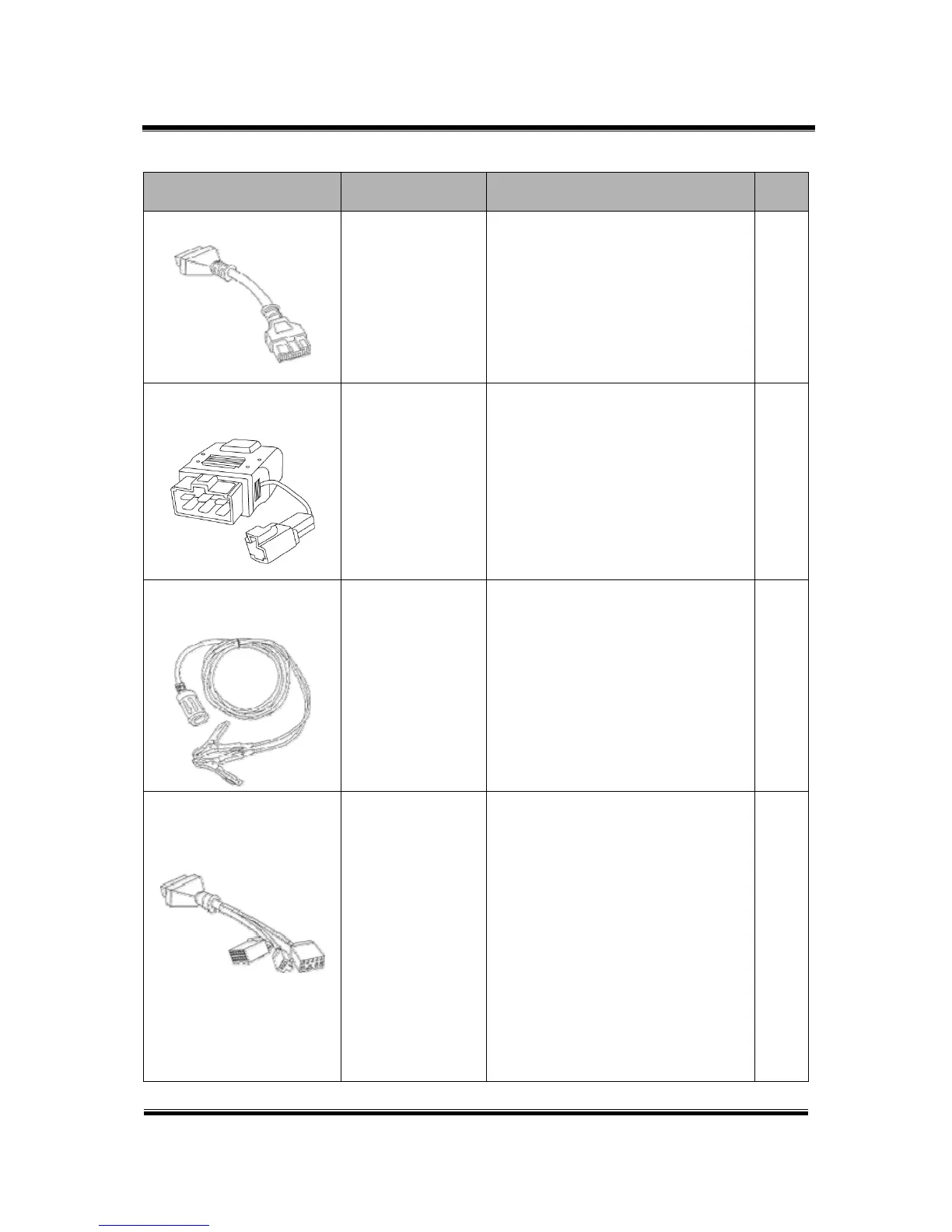

Part name
Part number Description Qty.
Cable-DLC [16pin -12pin]
GHDM – 245000
This adapter is connected between
DLC main cable [26pin to 16pin] on the
VCI module and 12pin diagnosis
connecter on some specific vehicles.
Length: 0.2m
1
Adapter [16pin-6pin]
GHDM - 246000
This adapter is connected between
DLC main cable [26pin to 16pin] on the
VCI module and 6pin diagnosis
connecter on some old vehicles.
1
Cable - Battery Power
Extension
GHDM – 24B000
Extension cable for connecting to cigar
jack connecter. Supplies DC power
from the vehicles battery terminals
directly.
Length 3m.
1
Adapter (10-3-3)
GHDM - 248000
DLC adapter cable for reprogramming
and setting Remote Keyless Entry
(RKE). 3 different connectors each
(10, 3 and 3pins) compose the other
side of this 16pin diagnosis connector.
This adapter is used with the main
DLC cable [26pin to 16pin], while
connected to the VCI module.
Length: 0.2m
Used for control modules on some KIA
vehicles.
1
