3.1.7 OPCRLY Relay Option Module
The OPCRLY includes 3 pieces of SPDT contacts and must be fitted into option slot B.
Electrical Data:
Max terminal load (AC-1)
1)
(Resistive load) 240 V AC 2A
Max terminal load (AC-15 )
1)
(Inductive load @ cos 0.4) 240 V AC 0.2 A
Max terminal load (DC-1)
1)
(Resistive load) 24 V DC 1 A
Max terminal load (DC-13)
1)
(Inductive load) 24 V DC 0.1 A
Min terminal load (DC) 5 V 10 mA
Max switching rate at rated load/min load 6 min
-1
/20 sec
-1
1) IEC 947 part 4 and 5

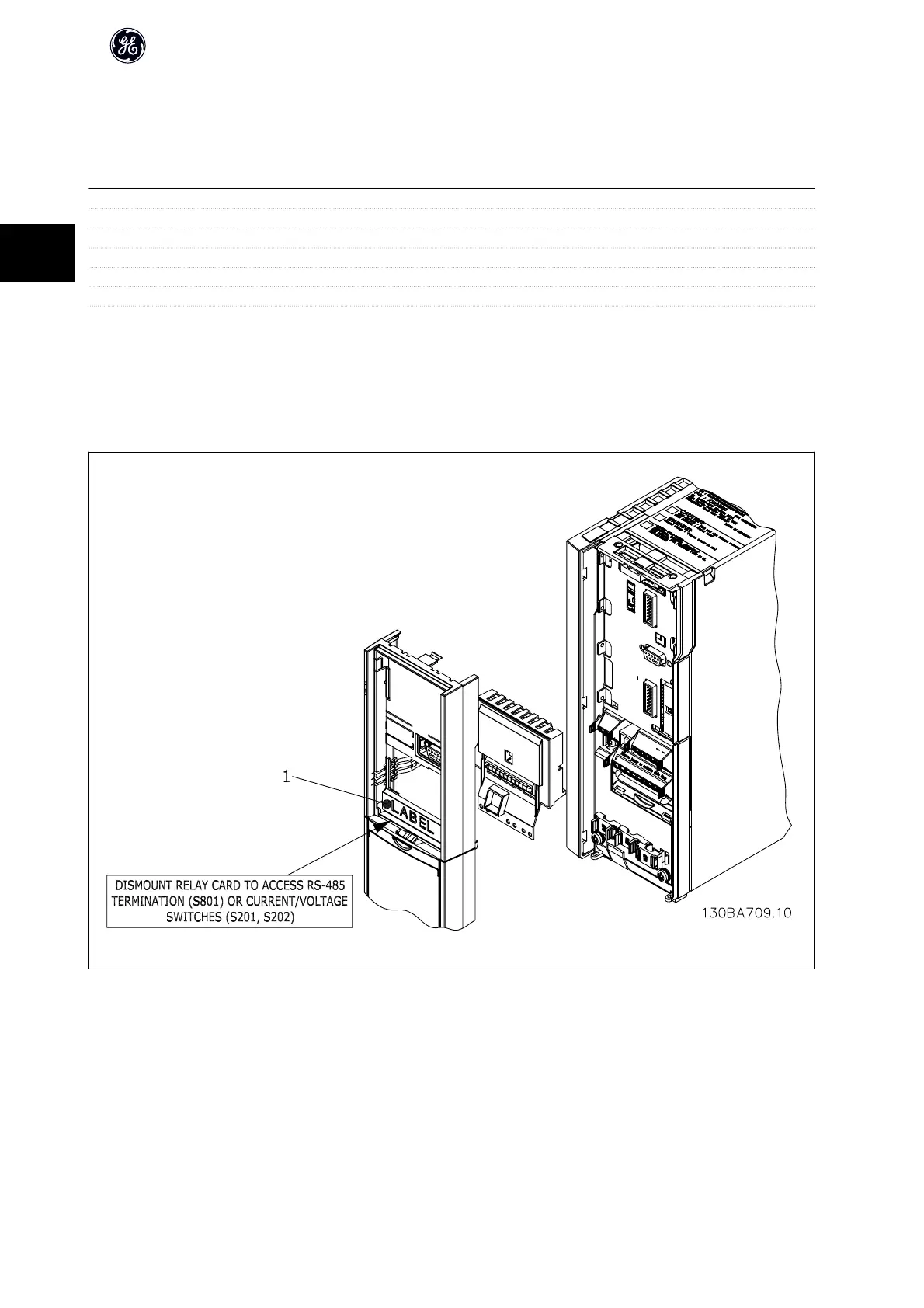

The kit includes:
•OPCRLY Relay Option Module
• Extended keypad frame and enlarged terminal cover
• Label for covering access to switches S201, S202 and S801
• Cable strips for fastening cables to relay module
