12-13-23 15-21-22-24-31-32-33-34
1)

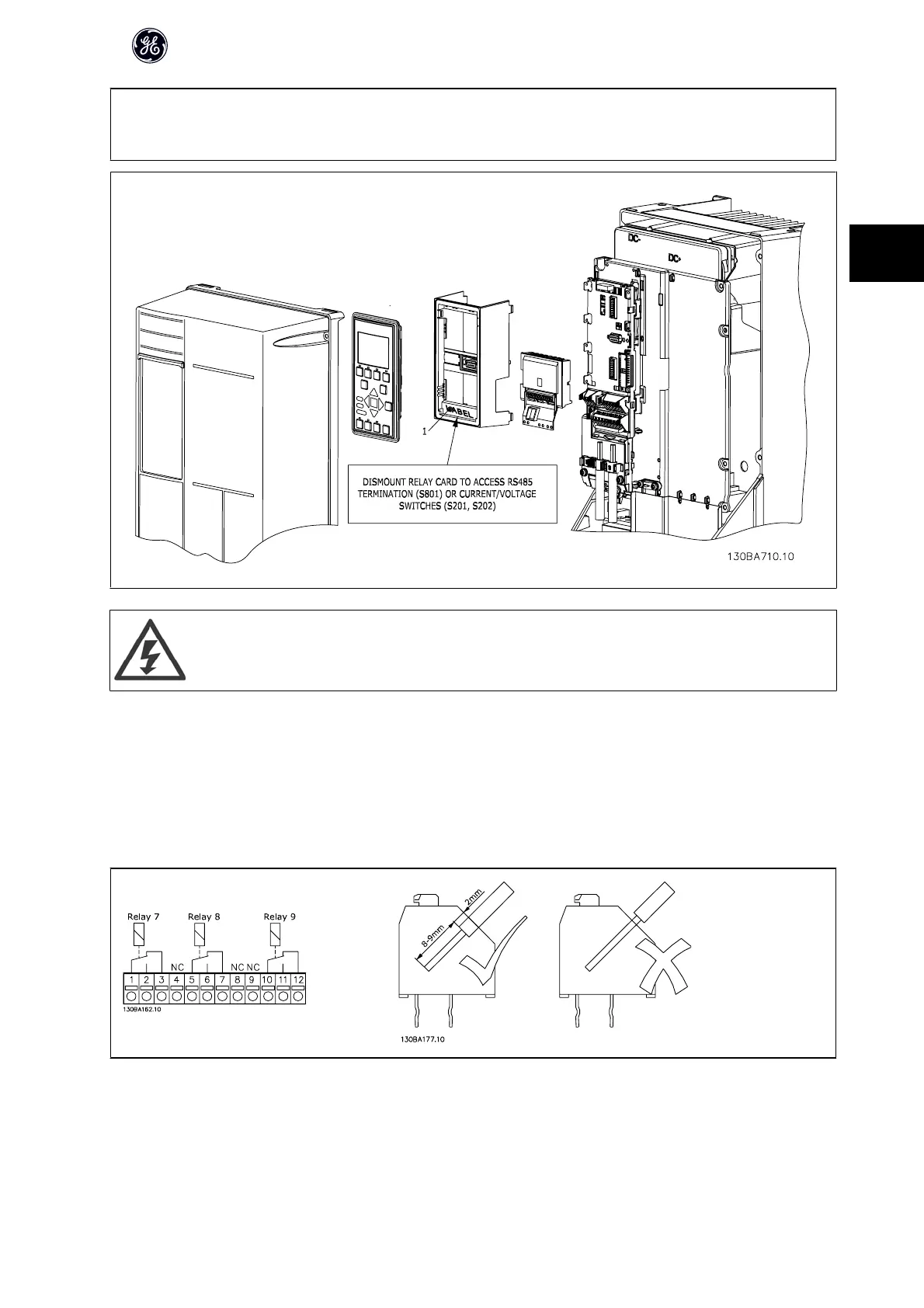

IMPORTANT! The label MUST be placed on the keypad frame as shown (UL approved).
Warning Dual supply
How to add the OPCRLY option:
• See mounting instructions in the beginning of section Options and Accessories
• The power to the live part connections on relay terminals must be disconnected.
• Do not mix live parts (high voltage) with control signals (PELV).
• Select the relay functions in par. E-24 Function Relay [6-8], par. E-26 On Delay, Relay [6-8] and par. E-27 Off Delay, Relay [6-8].
NB! (Index [6] is relay 7, index [7] is relay 8, and index [8] is relay 9)
AF-600 FP Design Guide
49
3
