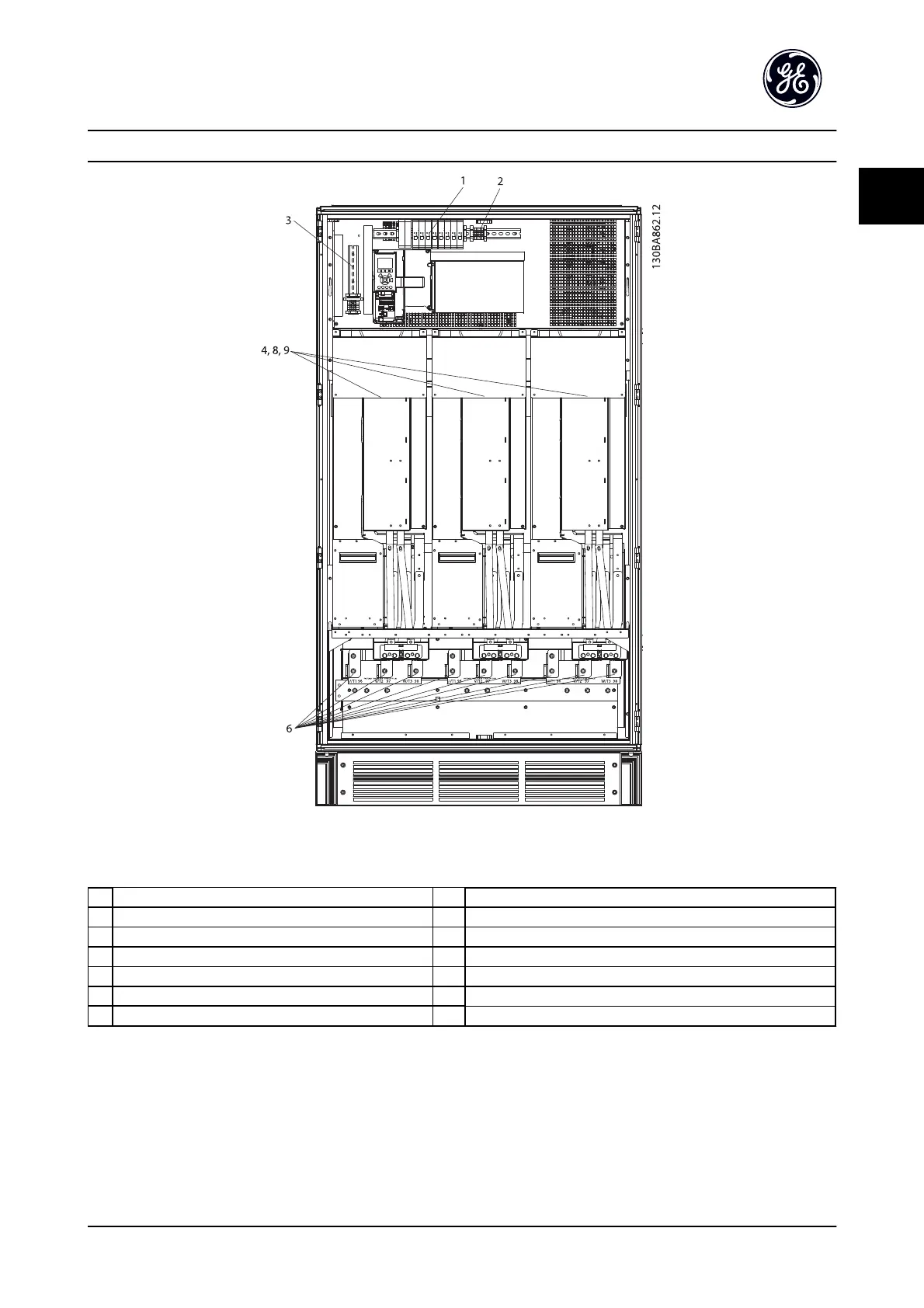

Figure 1.7 Inverter Cabinet, Unit Sizes 62 and 64
(Unit Sizes 61 and 63 are similar with two inverter modules)
1) External Temperature Monitoring 6) Motor
2) AUX Relay U V W
01 02 03 96 97 98
04 05 06 T1 T2 T3
4) AUX Fan 8) Fan Fuses. See 13.3 Fuse Specifications for part numbers
100 101 102 103 9) SMPS Fuses. See 13.3 Fuse Specifications for part numbers
L1 L2 L1 L2
