Parameters
Function Setting
AN-10 Terminal
53 Low Voltage 0.07 V*
AN-11 Terminal
53 High Voltage
10 V*
AN-14 Terminal
53 Low Ref./
Feedb. Value
0 RPM
AN-15 Terminal
53 High Ref./
Feedb. Value
1,500 RPM
* = Default Value
Notes/comments:

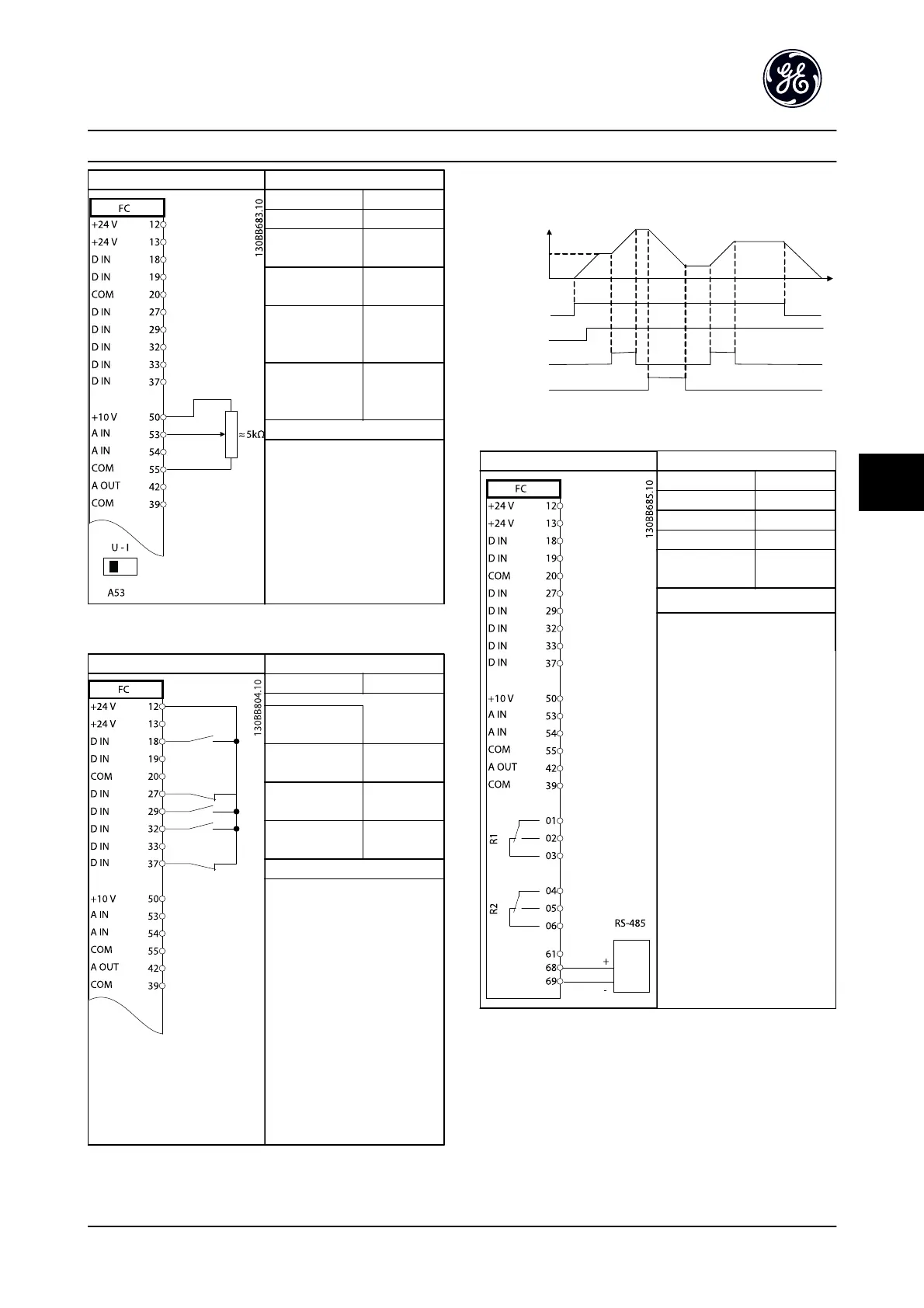

Table 6.7 Speed Reference (using a Manual Potentiometer)
Parameters
Function Setting
E-01 Terminal 18
Digital Input
[8] Start*
E-03 Terminal 27
Digital Input
[19] Freeze
Reference
E-04 Terminal 29
Digital Input
[21] Speed
Up
E-05 Terminal 32
Digital Input
[22] Slow
* = Default Value
Notes/comments:
Table 6.8 Speed Up/Down
S t a r t ( 1 8 )
F r e e z e r e f ( 2 7 )
S p e e d u p ( 2 9 )
S p e e d d o w n ( 3 2 )
S p e e d
R e f e r e n c e
130BB840.10
Figure 6.3
Parameters
Function Setting
O-30 Protocol Modbus*
O-31 Address 1*
O-32 Drive Port
Baud Rate
9600*
* = Default Value
Notes/comments:
Select protocol, address and
baud rate in the above
mentioned parameters.
Table 6.9 RS485 Network Connection
Application Setup Examples
AF-650 GP
TM
Design and Installation Guide
DET-767A 6-3
