AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
5−2
5−3 Adjustment of Column
and Telescoping Arm
In the following steps you can free the AMX−4+ components for positioning in one
of two ways: by gripping the collimator handle(s) to keep the lock system released or,
whenever necessary, overriding the lock system with slight force.
When possible, we recommend that you use the lock release system.
2. Rotate the arm and vertical column assembly to horizontally position the tele-
scoping arm. The vertical column can be rotated 270 degrees clockwise or coun-
terclockwise (detent at 0 degree park location). See Illustration 5−2.
3. Raise the arm on the vertical column to the desired height.
4. Extend the retractable arm to the desired length and release. See Illustration
5−2.

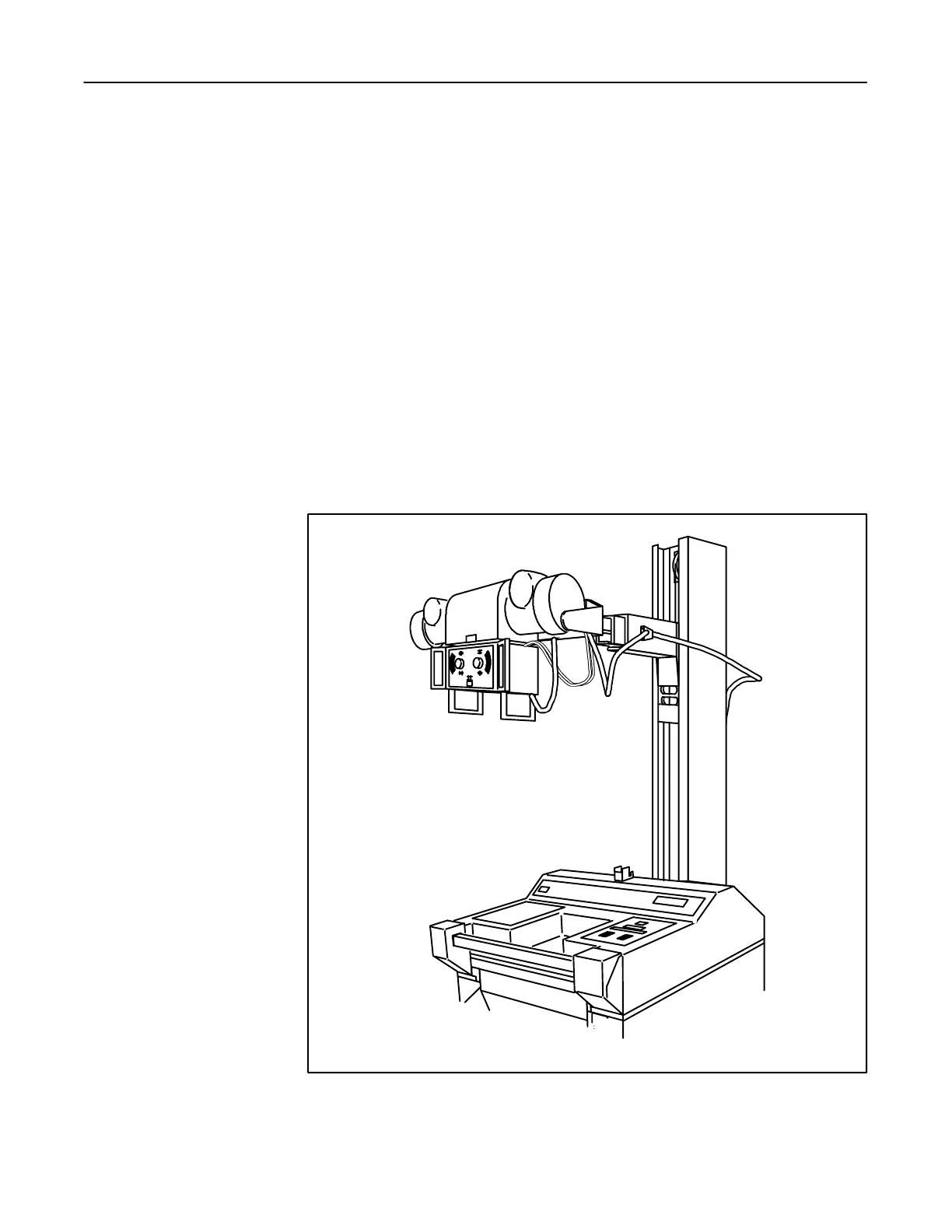

ILLUSTRATION 5−2
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
