AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
5−3
5−4 Tube Unit Rotation
Because the tube assembly is counterbalanced, no active lock is required. And little ef-
fort is needed to override friction and rotate the tube.
5. Use the collimator handles to position the tube to the desired angle.
D You may rotate the tube in two directions:
a. clockwise and counterclockwise +180 degrees (detents at every 90 de-
grees), or
b. backwards −10 degrees and forwards +100 degrees (detent at 0 de-
gree). See Illustration 5−3.

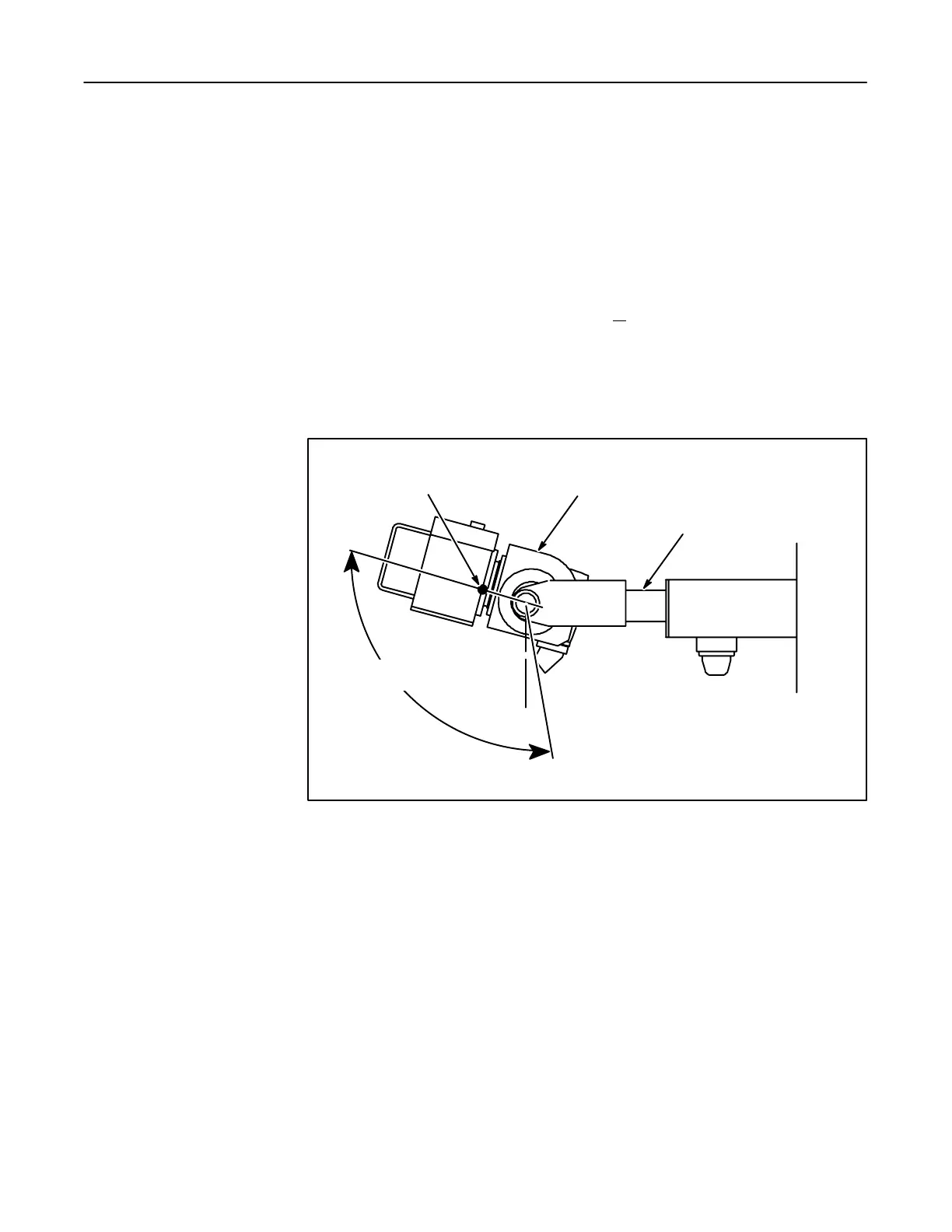

ILLUSTRATION 5−3
TUBE ROTATION
COLLIMATOR
ROTATION
KNOB
TUBE UNIT
RETRACTABLE
ARM
0_
DETENT
−10_
(BACKWARD)
110_
(FORWARD)
...extend the arm and
rotate the tube to the
desired angle.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
