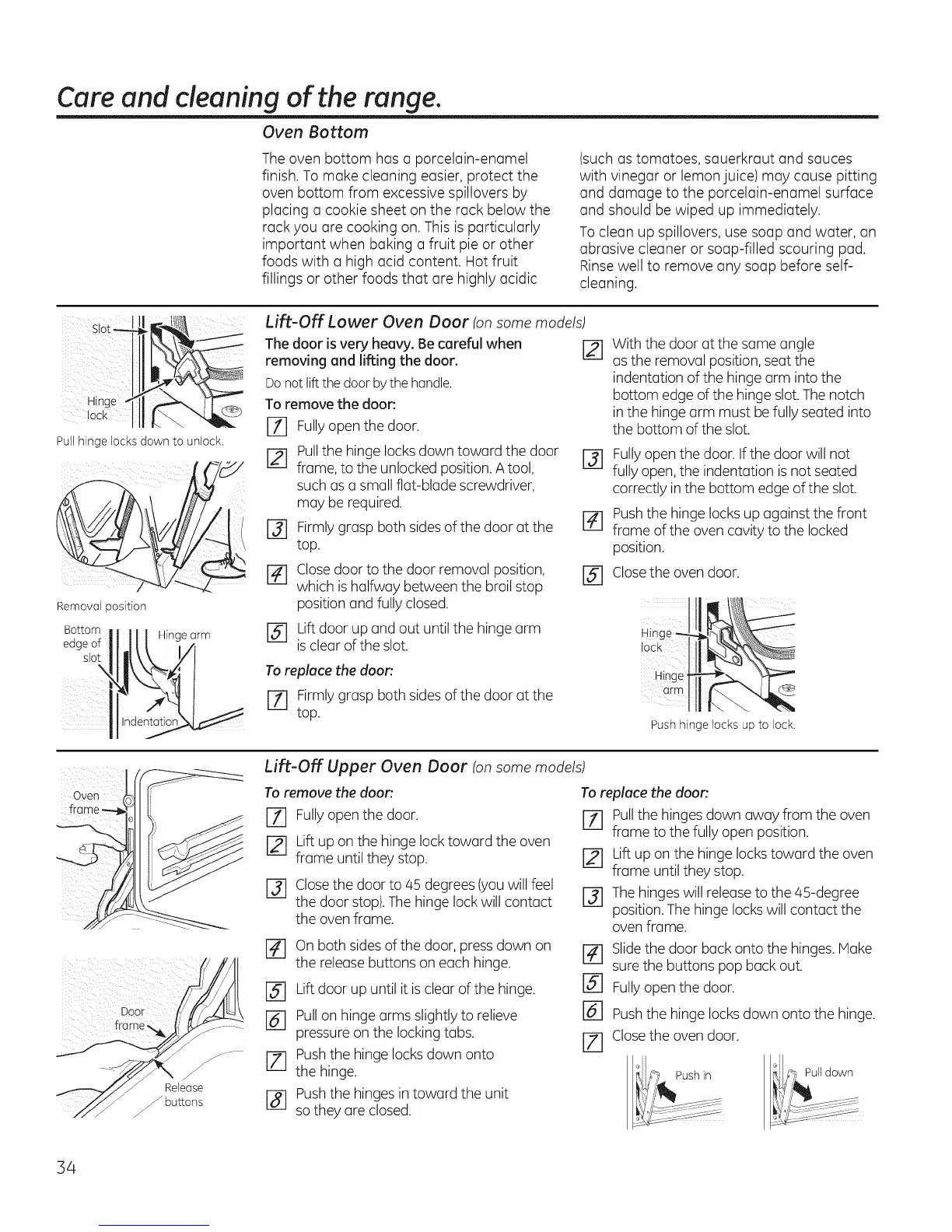

Care and cleaning of the range.
Oven Bottom
The oven bottom has a porcelain-enamel
finish. To make cleaning easier, protect the
oven bottom from excessive spillovers by
placing a cookie sheet on the rack below the
rack you are cooking on.This isparticularly
important when baking a fruit pie or other
foods with a high acid content. Hot fruit
fillings or other foods that are highly acidic
(such as tomatoes, sauerkraut and sauces
with vinegar or lemon juice) may cause pitting
and damage to the porcelain-enamel surface
and should be wiped up immediately.
Toclean up spillovers, use soap and water, an
abrasive cleaner or soap-filled scouring pad.
Rinsewell to remove any soap before self-
cleaning.
Pull hinge locks down to unlock.
Removal position
Bottom I
edge of
slo_
t
I
I| | Hingearm
Lift-Off Lower Oven Door (onsome models)
The door isvery heavy. Be careful when []
removing and lifting the door.
Do not lift the door by the handle.
To remove the door:
[Z] Fullyopen the door.
r_ Pullthe hinge locksdown toward the door
frame, to the unlocked position. A tool, []
such asa small flat-blade screwdriver,
may be required.
Firmlygrasp both sidesof the door at the r_
top.
[] Closedoor to the door removal position, r_
which ishalfway between the broil stop
position and fully closed.
r_ Lift door up and out until the hinge arm
isclear of the slot.
Toreplace the door:
F-f] Firmlygrasp both sidesof the door at the
top.
With the door at the same angle
as the removal position,seat the
indentation of the hinge arm into the
bottom edge of the hinge slot.The notch
inthe hinge arm must be fully seated into
the bottom of the slot.
Fullyopen the door. Ifthe door will not
fully open,the indentation is not seated
correctly inthe bottom edge of the slot.
Pushthe hinge locks up against the front
frame of the oven cavity to the locked
position.
Closethe oven door.
Hinge__....%. _
Push hinge locks up to lock.
Oven
frame
i! ¸ ¸
Lift-Off Upper Oven Door Ion some models)
To remove the door'.
[Z] Fullyopen the door.
Lift up on the hinge locktoward the oven
frame until they stop.
r_ Closethe door to 45 degrees (you will feel
the door stop).Thehinge lock will contact
the oven frame.
[_ On both sides of the door, press down on
the releasebuttons on each hinge.
r_ Lift door up until it isclear of the hinge.
r_ Pullon hinge arms slightly to relieve
pressure on the locking tabs.
r_ Pushthe hinge locks down onto
the hinge.
[_ Pushthe hinges in toward the unit
sothey are closed.
To replace the door'.
[71 Pullthe hinges down away from the oven
frame to the fully open position.
Lift up on the hinge locks toward the oven
frame untilthey stop.
Thehingeswill releaseto the 4g-degree
position.The hinge lockswill contact the
oven frame.
r_ Slidethe door back onto the hinges. Hake
sure the buttons pop back out.
r_ Fullyopen the door.
[] Pushthe hinge locks down onto the hinge.
r_ Closethe oven door.
34
