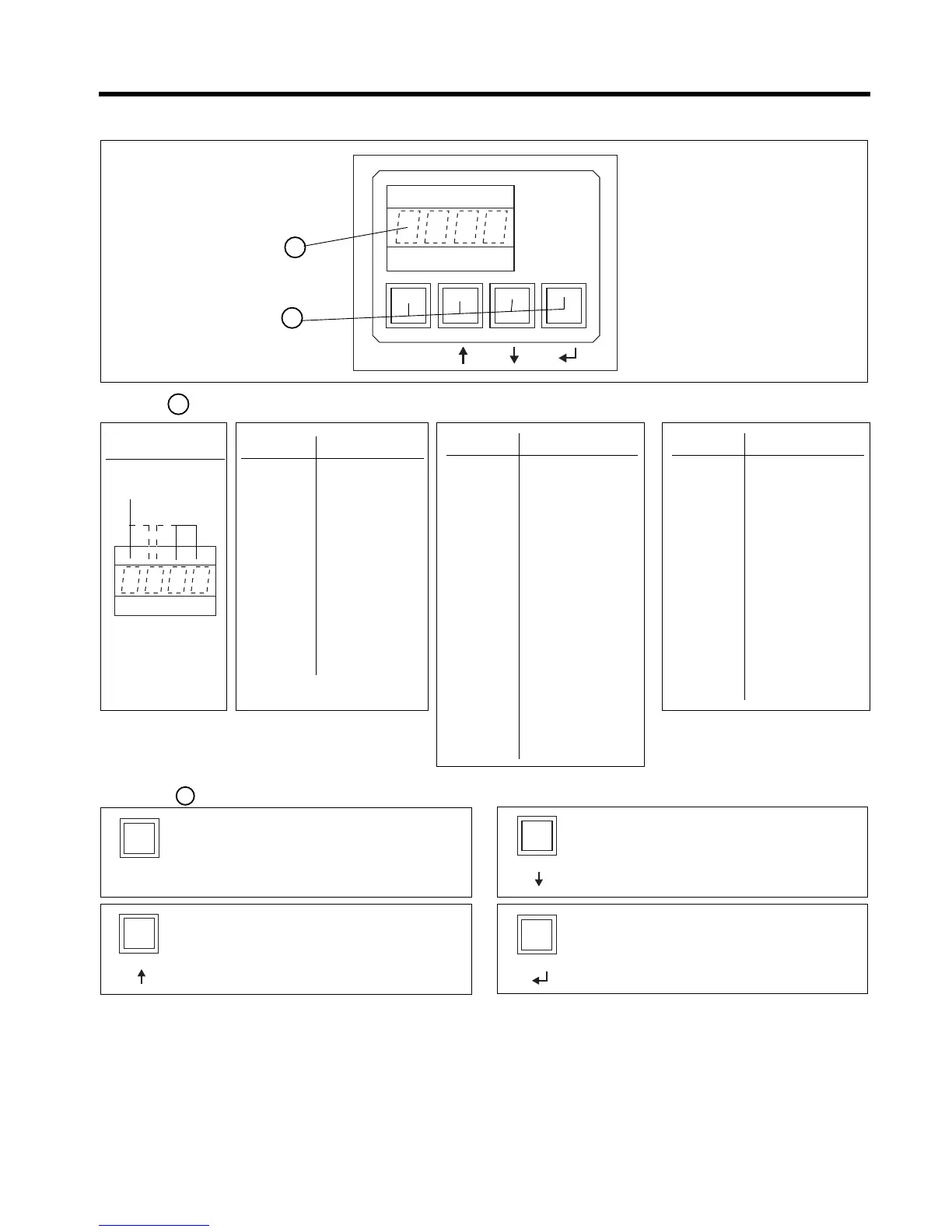

4-1. Keypad and Display description
1
2
Display
1
F
VVV
F V V V Error code
E010 Frequency out of range
E011 Overload trip
E013 Loss of synchronism
E014 Phase U scr
E015 Phase V scr
E016 Phase W scr
E017 Heatsink overtemperature
E018 Motor thermistor
E019 Phase U lost
E020 Phase V lost
E021 Phase W lost
E022 Stalled rotor
E023 Internal error
E025 Long start time
E026 Long slow speed time
E027 Lock-out
E028 Undervoltage
E029 Overvoltage
E030 Undercurrent
E031 Overcurrent
E032 Retry, attempts exceeded
F V V V Status code
ON Equipment is connected
to main supply
(equipment is ON)
STOP Stop
LOCK Remote stop
PULS Kick start
RAMP Acceleration ramp
FULL Full conduction or
Override
SAVE Energy saving
SOFT Soft stop
PUMP Pump control
DCBK DC braking
INCH Inching / slow speed
TACH Linear ramp (tacho)
Keypad
2
SELECTION
Use with
↑↑
↑↑
↑ or
↓↓
↓↓
↓ to select the parameter or function code to be
displayed and/or modified
SEARCH / ADJUSTMENT
Increases the value of the selected parameter
ENTER / SAVE
- Introduces the new parameter value into memory
- Updates the selected parameter value with the
displayed value
SEARCH / ADJUSTMENT
Decreases the value of the selected parameter
1
14
3
2
0
C/V
Data
Function code
C/V
4-1
4. Programming
Displays Monitoring, Status indications, error messages and function set values
Allows setting of parameters and functions
F F/V V V function code (*)
Mx x x Motor current
vxxx Software Version
. .
. .
PFxx Power Factor
. .
. .
Lxxx Limit current
Txxx Starting Torque
axxx Ramp up time
dxxx Ramp down time
Sxxx Soft Stop selection
..
. .
LKxx Lock out
..
. .
(*) These are examples. Full details in
sections 4-2, 4-3, 4-4, 4-5 and 4-6
Display Structure
