78 • Dimensions

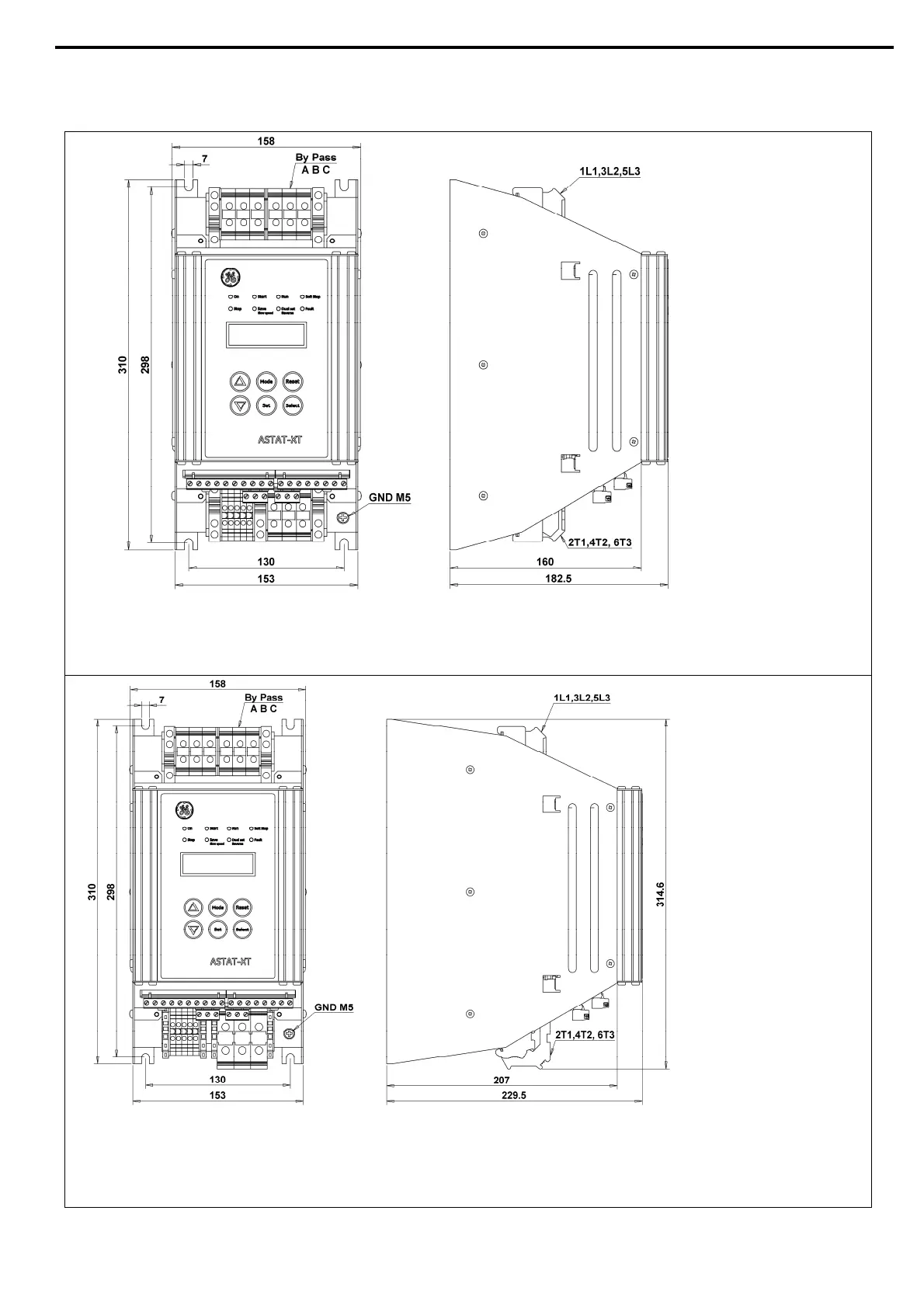

9. DIMENSIONS
9.1 UL cUL Approved Models
ASTAT-XT 8A 17A 31A. Cat numbers QTx0008U_, QTx0017U_, QTx0031U_
Notes:
• Mains voltage terminals: 16mm
2
• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
ASTAT-XT 44A 58A. Cat numbers QTx0044U_, QTx0058U_
Notes:
• Mains voltage terminals ( 1L1, 3L2, 5L3) and preparation for bypass terminals (A, B, C): 16mm
2
• Connection to motor terminals (2T1, 4T2, 6T3): 35mm
2
• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
