GE ASTAT XT QT 0008U Series - Non UL cUL Approved Models Dimensions

82 • Dimensions
9.2 Non UL cUL Approved Models

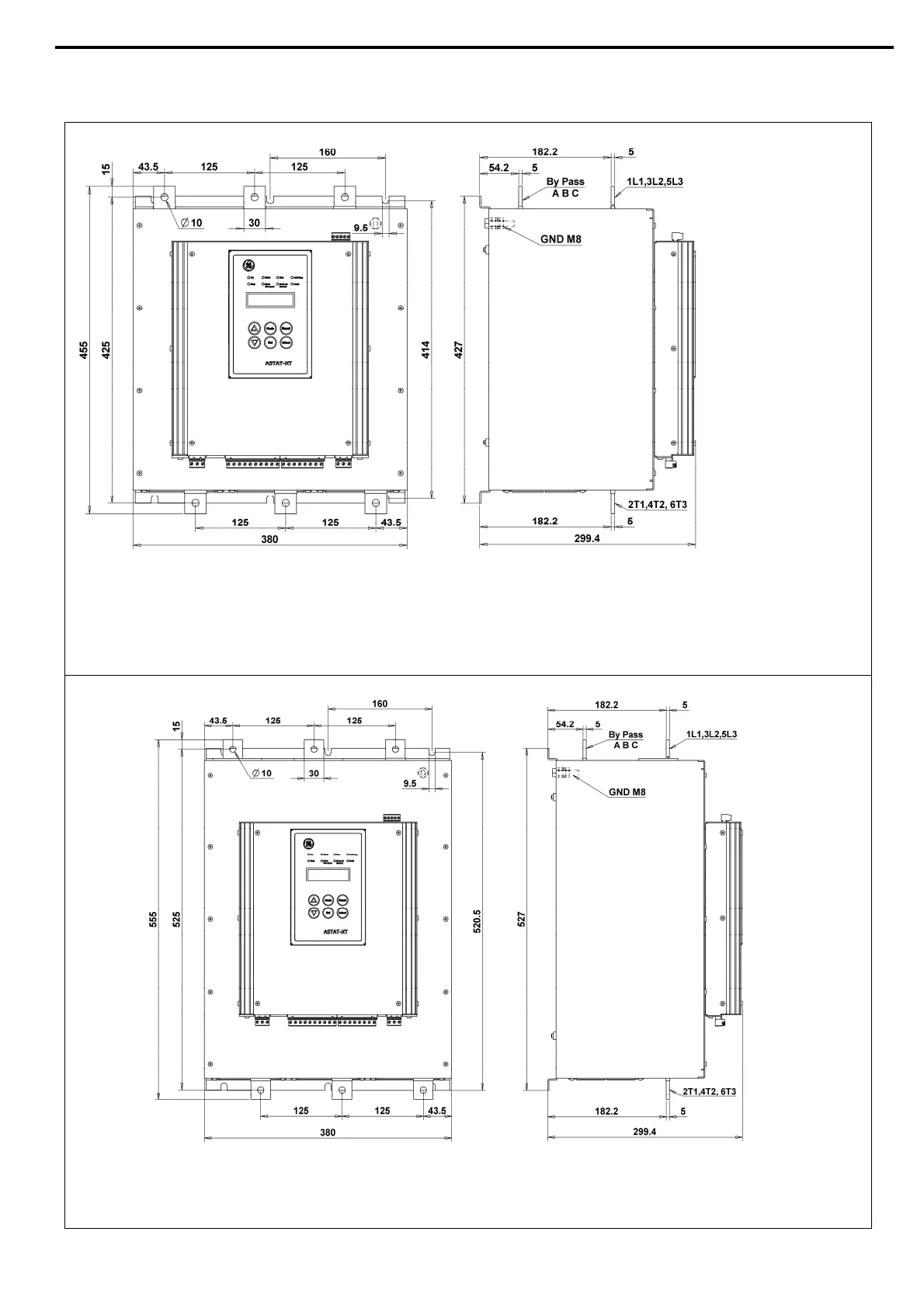

ASTAT-XT 210A 310A 390A. Cat numbers QTx0210N_, QTx0310N_, QTx0390N_
Notes:
• For the dimensions of UL cUL approved models QTx0210U_, QTx0310U_, QTx0390U_ refer to section 9.1
page 78.
• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
ASTAT-XT 460A. Cat number QTx0460N_
Notes:
• For the dimensions of UL cUL approved model QTx0460U_ refer to section 9.1 page 78.
• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
