83 • Dimensions

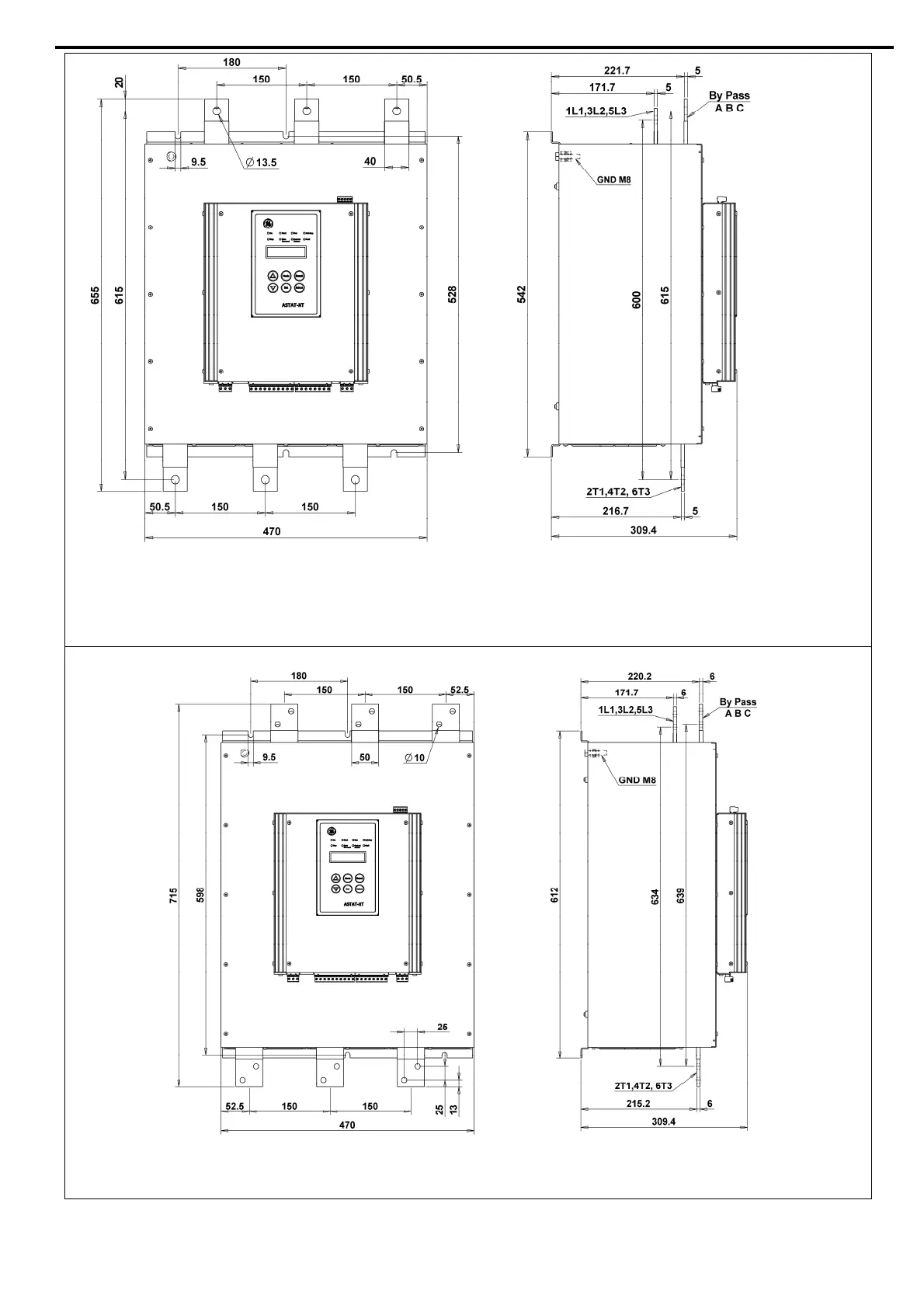

ASTAT-XT 580A. Cat number QTx0580N_

Notes:

• For the dimensions of UL cUL approved model QTx0580U_ refer to section 9.1 page 78.

• Add 20 mm to the depth dimension when the optional remote key-pad is installed.

ASTAT-XT 650A. Cat number QTx0650N_

Note:

• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
