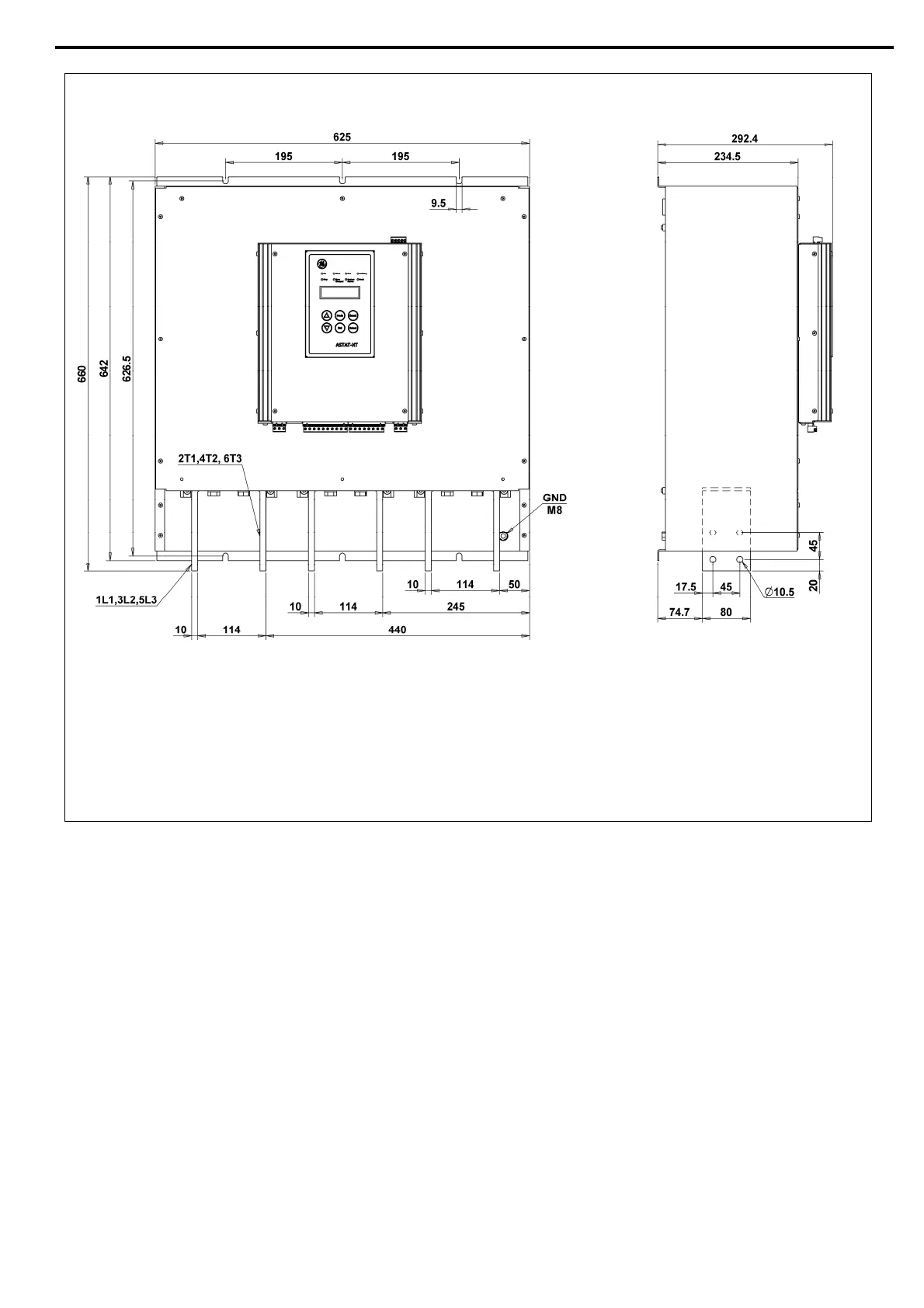

84 • Dimensions

ASTAT-XT 950A. Cat number QTx0950N_

Notes:

• Must be operated with a bypass contactor

• Add space for current transformers (supplied separately from the main unit) and bus bars for preparation for

bypass

• Approximate current transformer dimensions: W=240mm, H=130mm, D=90mm

• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
