81 • Dimensions

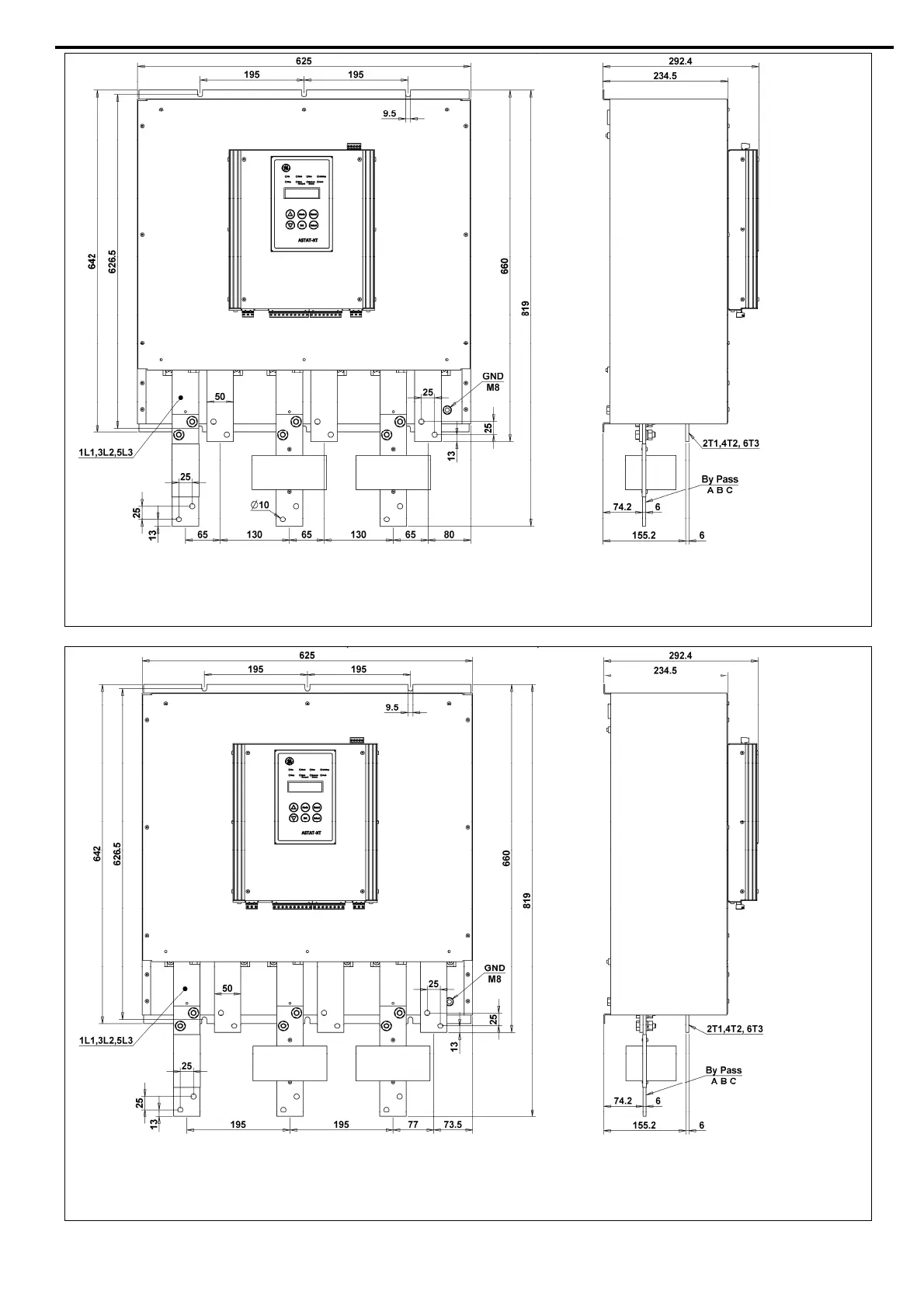

ASTAT-XT 460A. Cat number QTx0460U_
Notes:
• For the dimensions of non UL cUL approved model QTx0460N_ refer to section 9.2 page 82.
• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
ASTAT-XT 580A 820A. Cat numbers QTx0580U_, QTx0820U_
Notes:
• For the dimensions of non UL cUL approved models QTx0580N_, QTx0820N_ refer to section 9.2 page 82.
• Add 20 mm to the depth dimension when the optional remote key-pad is installed.
