GE AZ45E07DA Series - Louvers Adjustment

– 33 –
Modi¿ed airÀow to 85°

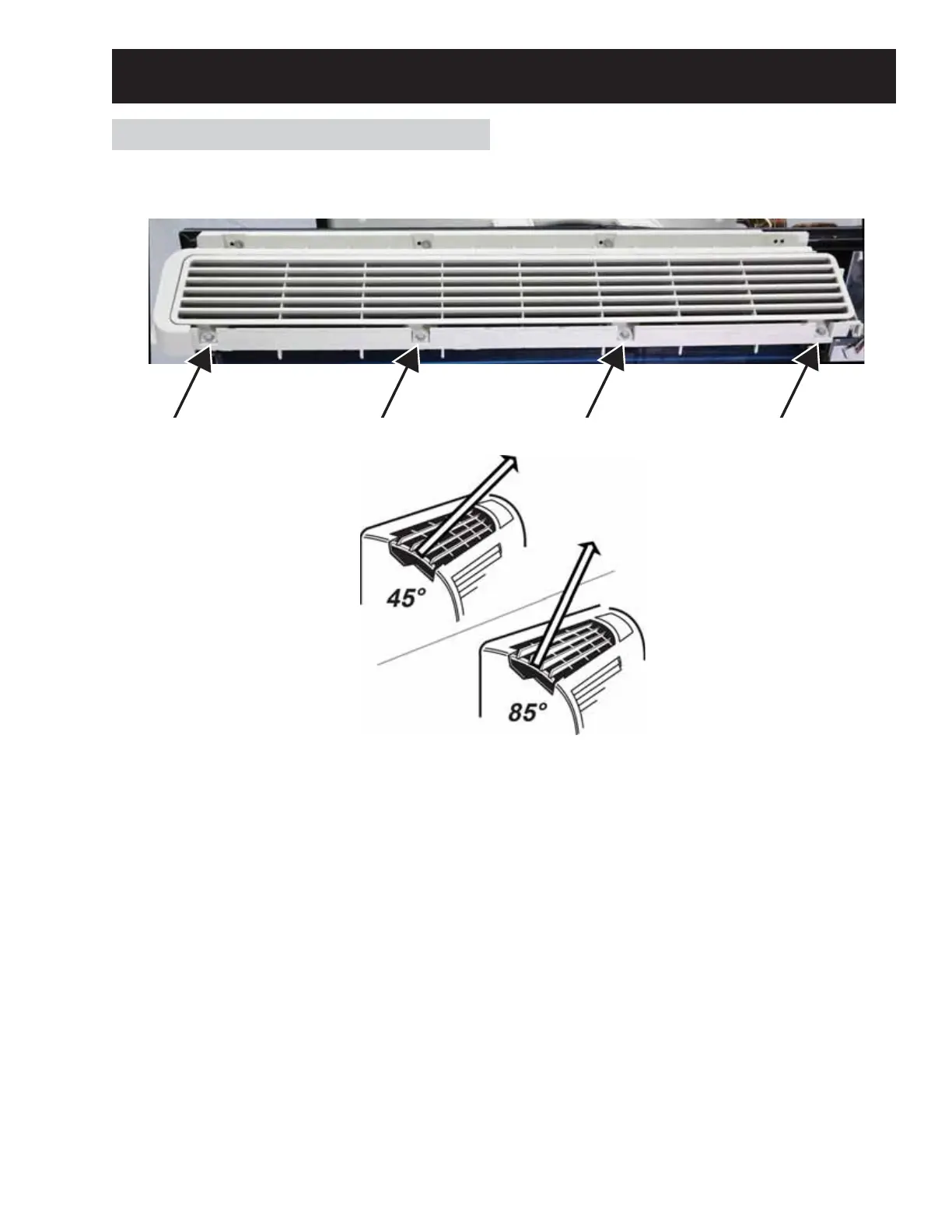

The louver assembly is shipped from the factory with the airÀow set to 45° from horizontal. To change the
airÀow to 85° from horizontal, remove the four screws and rotate the louver assembly and reinstall screws.
Factory set with the airÀow set to 45°
Components
Louvers
